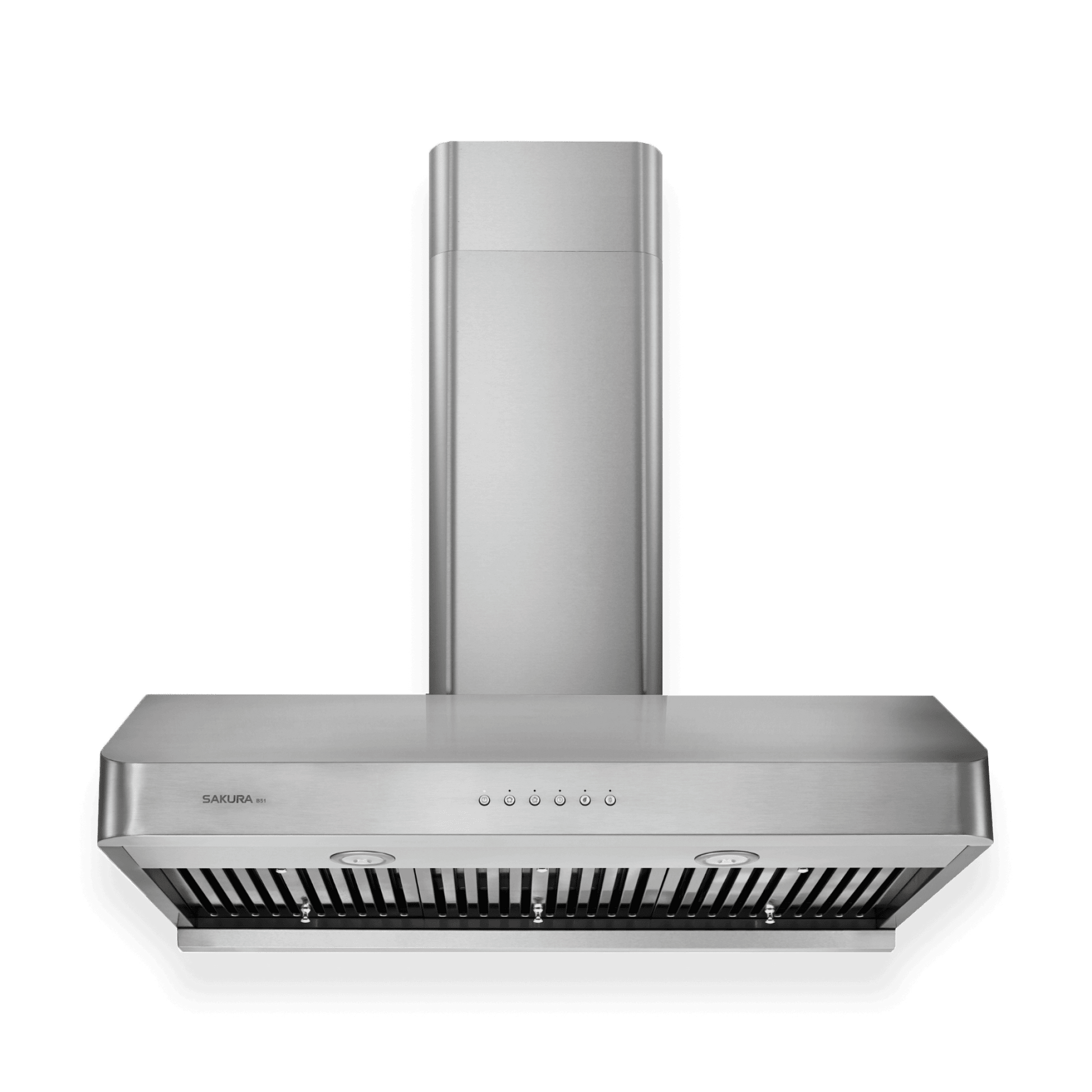

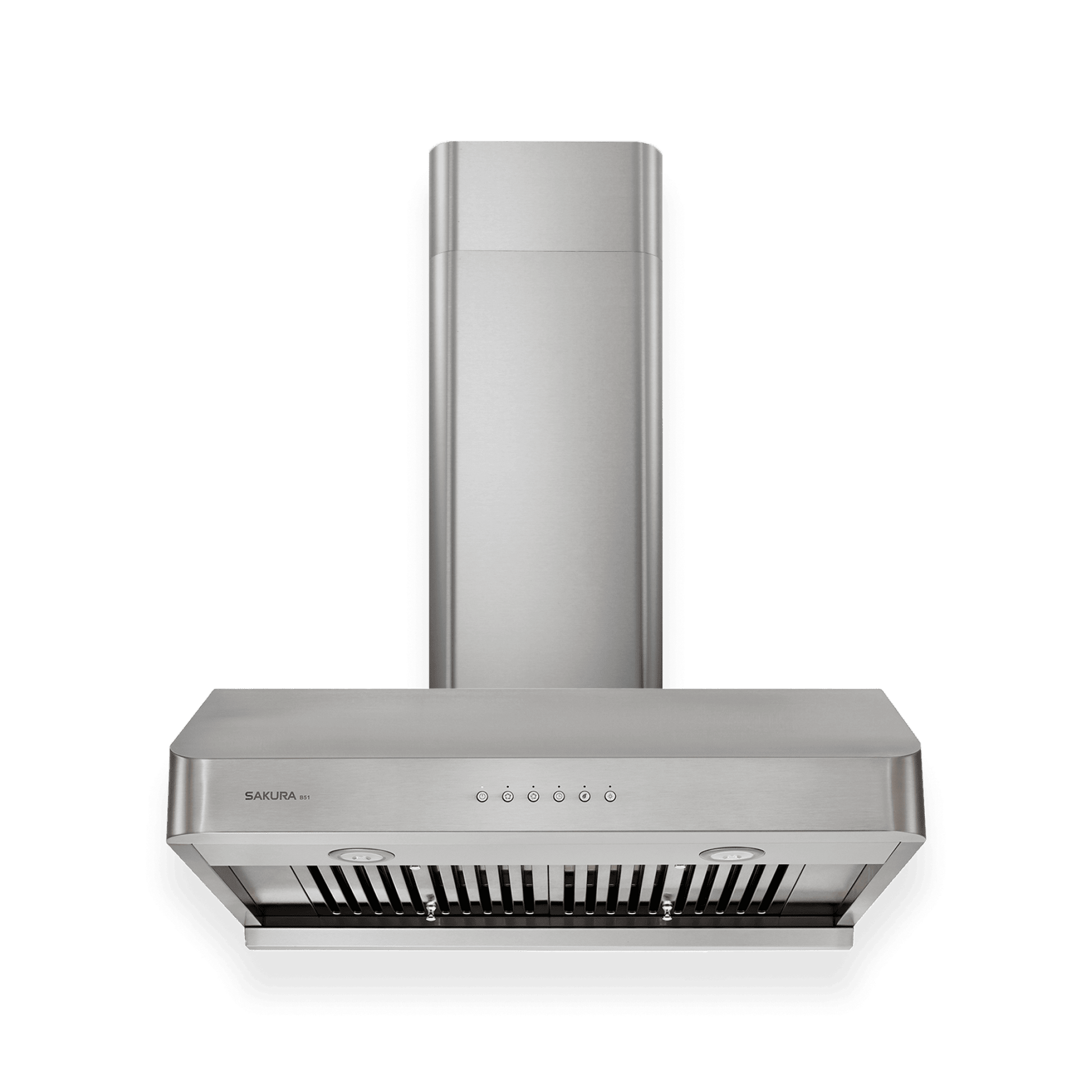

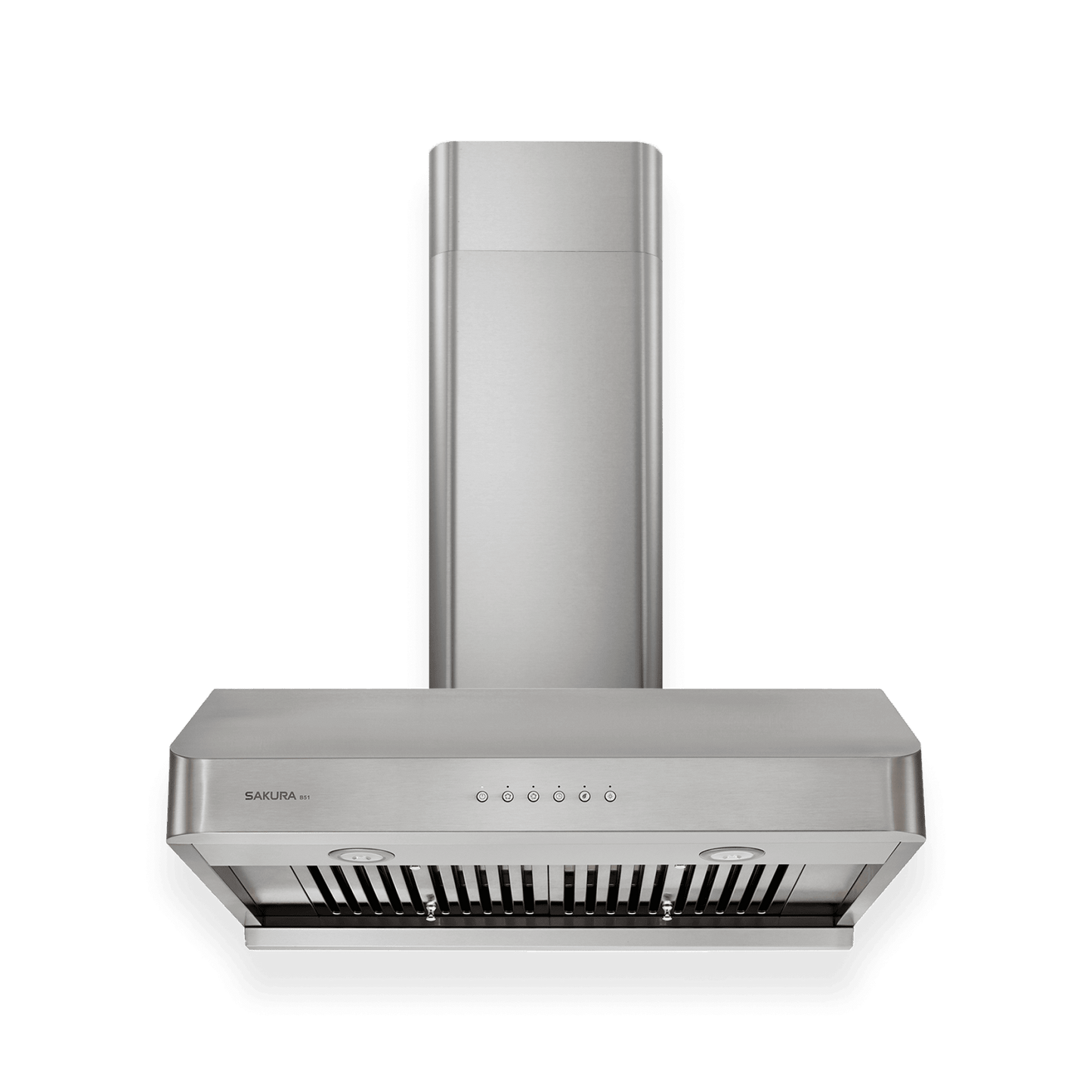

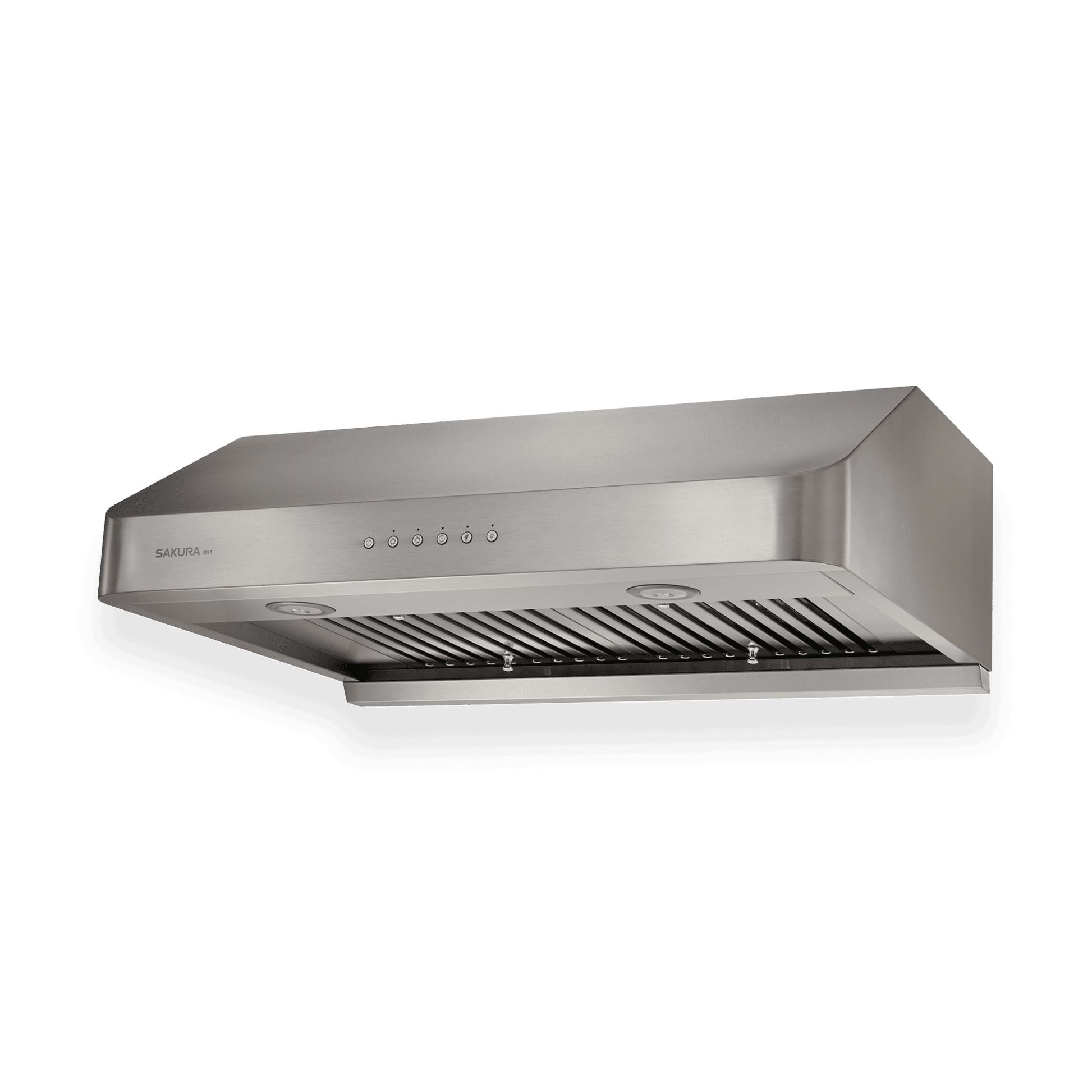

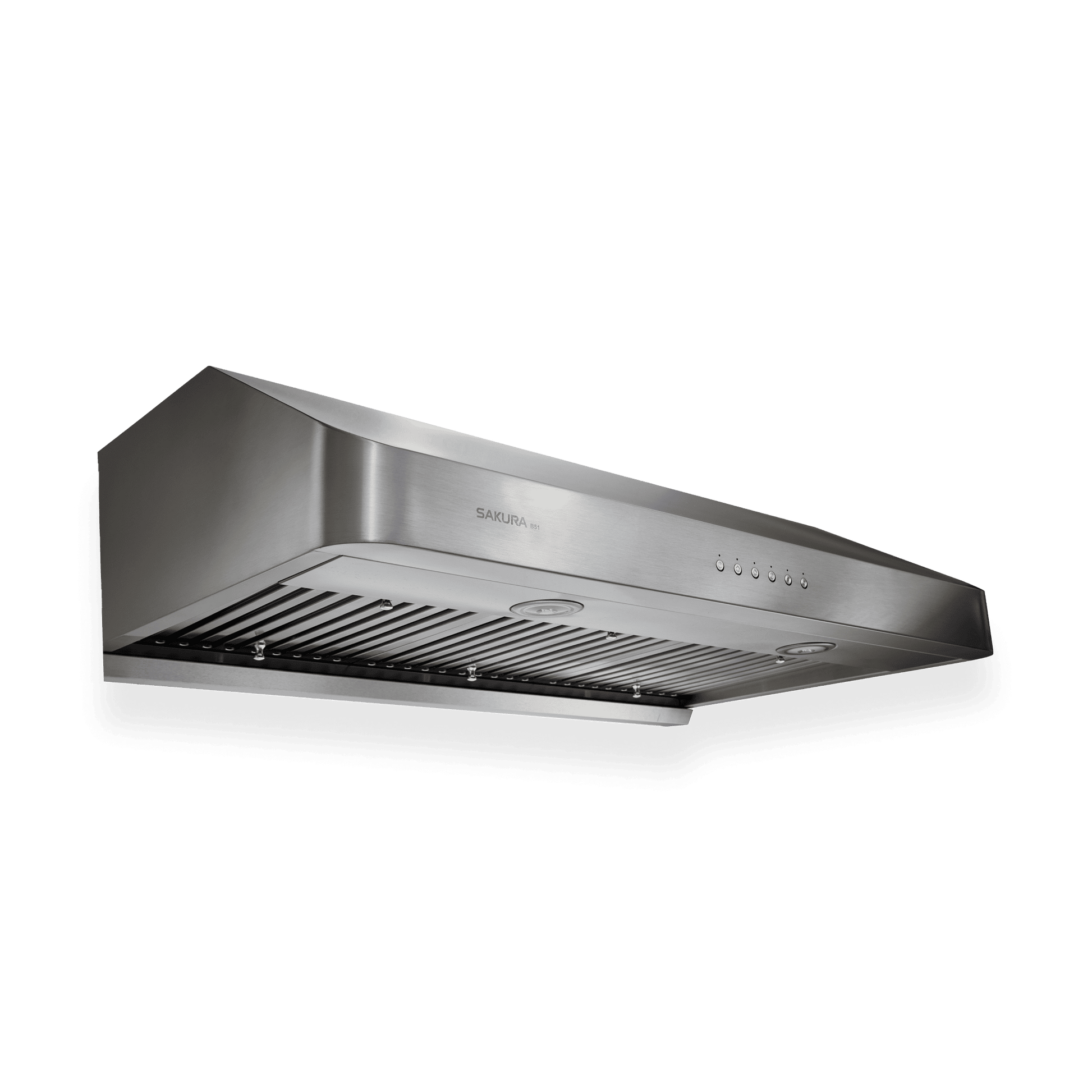

B-51 Sakura 30" or 36" Range hood - Wall-mount Chimney

• Made in Taiwan
• Max 1000 CFM

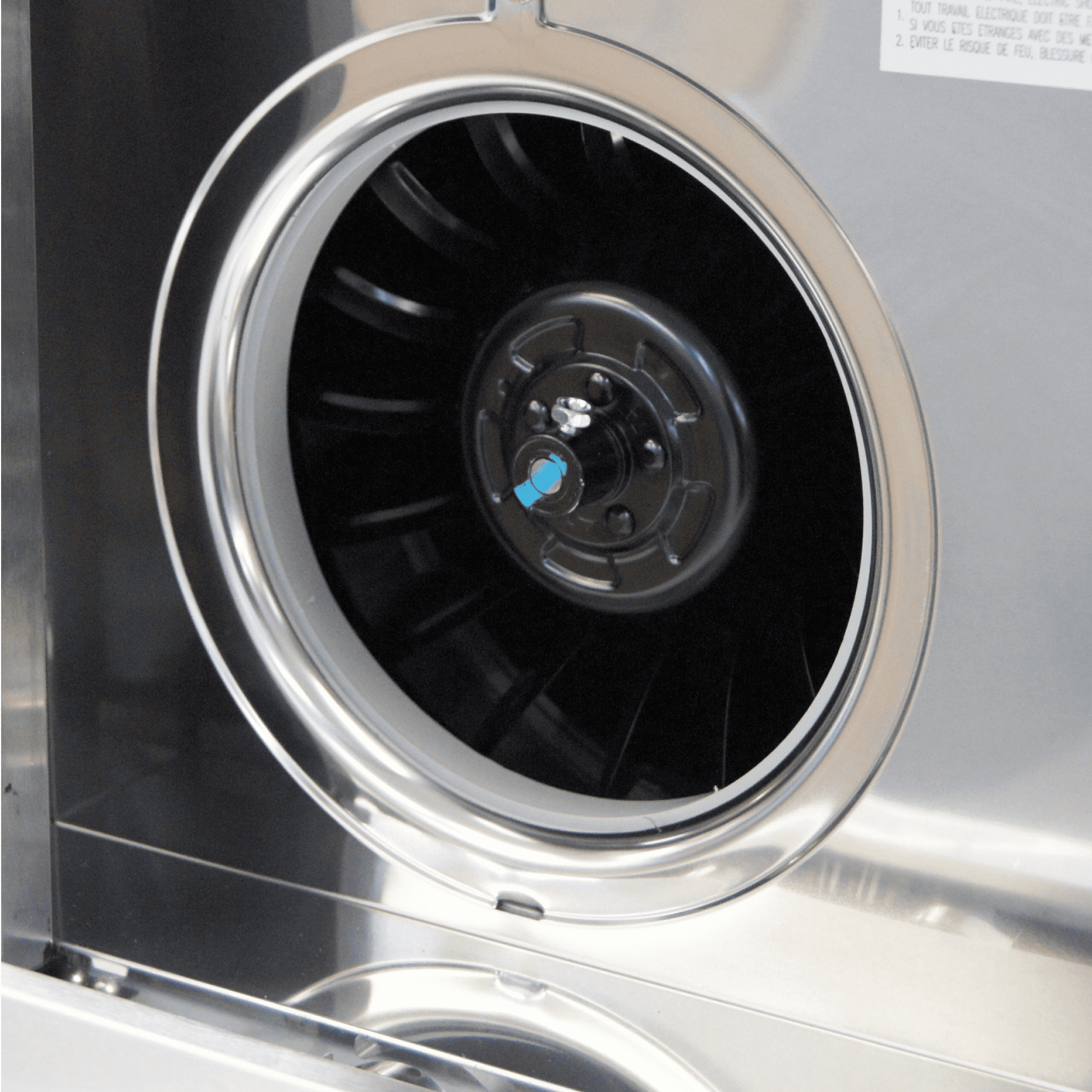

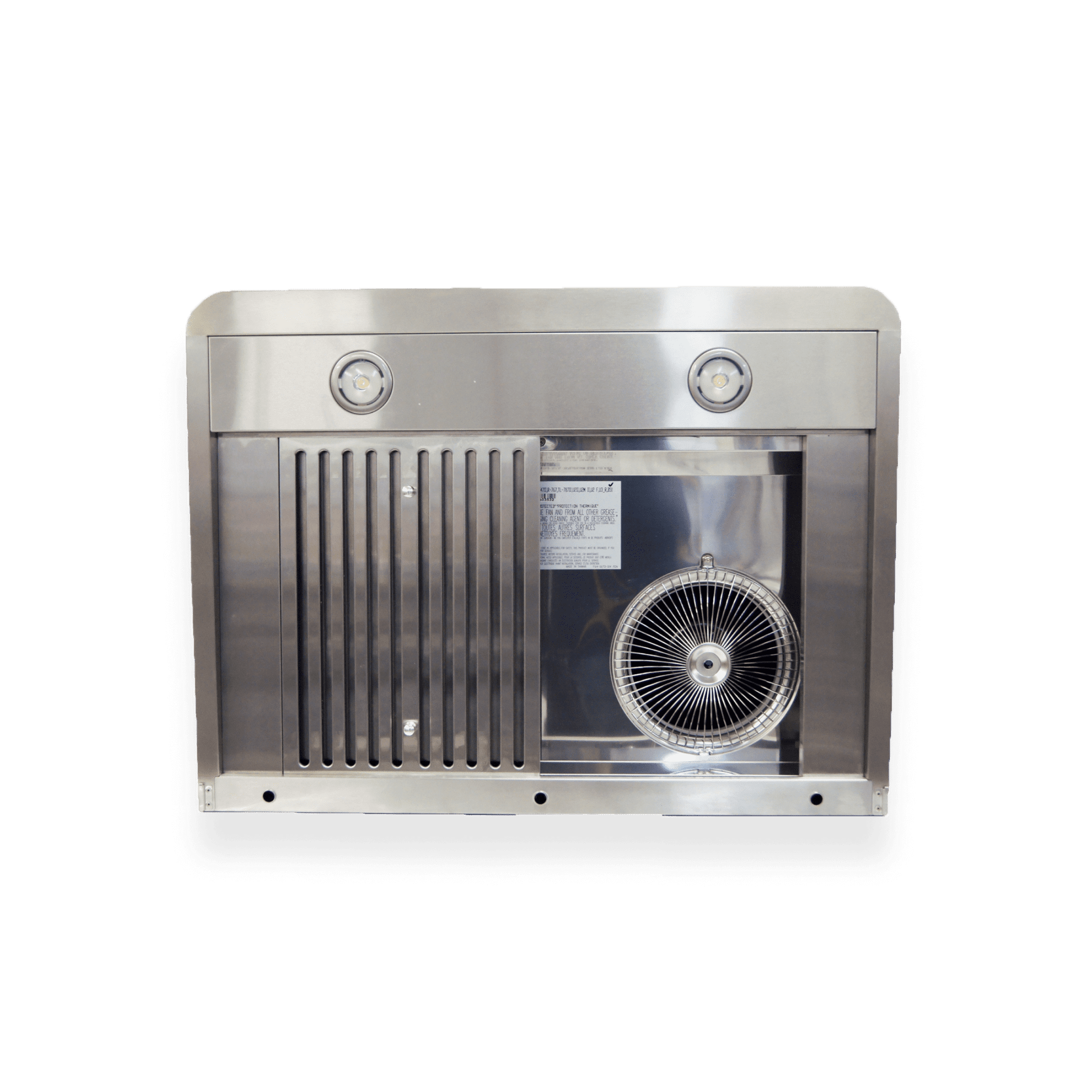

• Two powerful AC motors with Innovative patented exhaust air flow
• 2 speeds metal button control satisfies all cooking requirements
• 30 min delay auto shutoff function

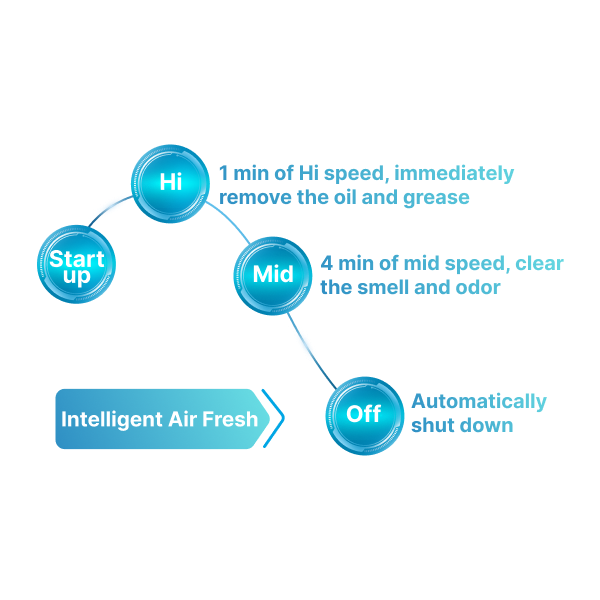

• Intelligent air fresh mode

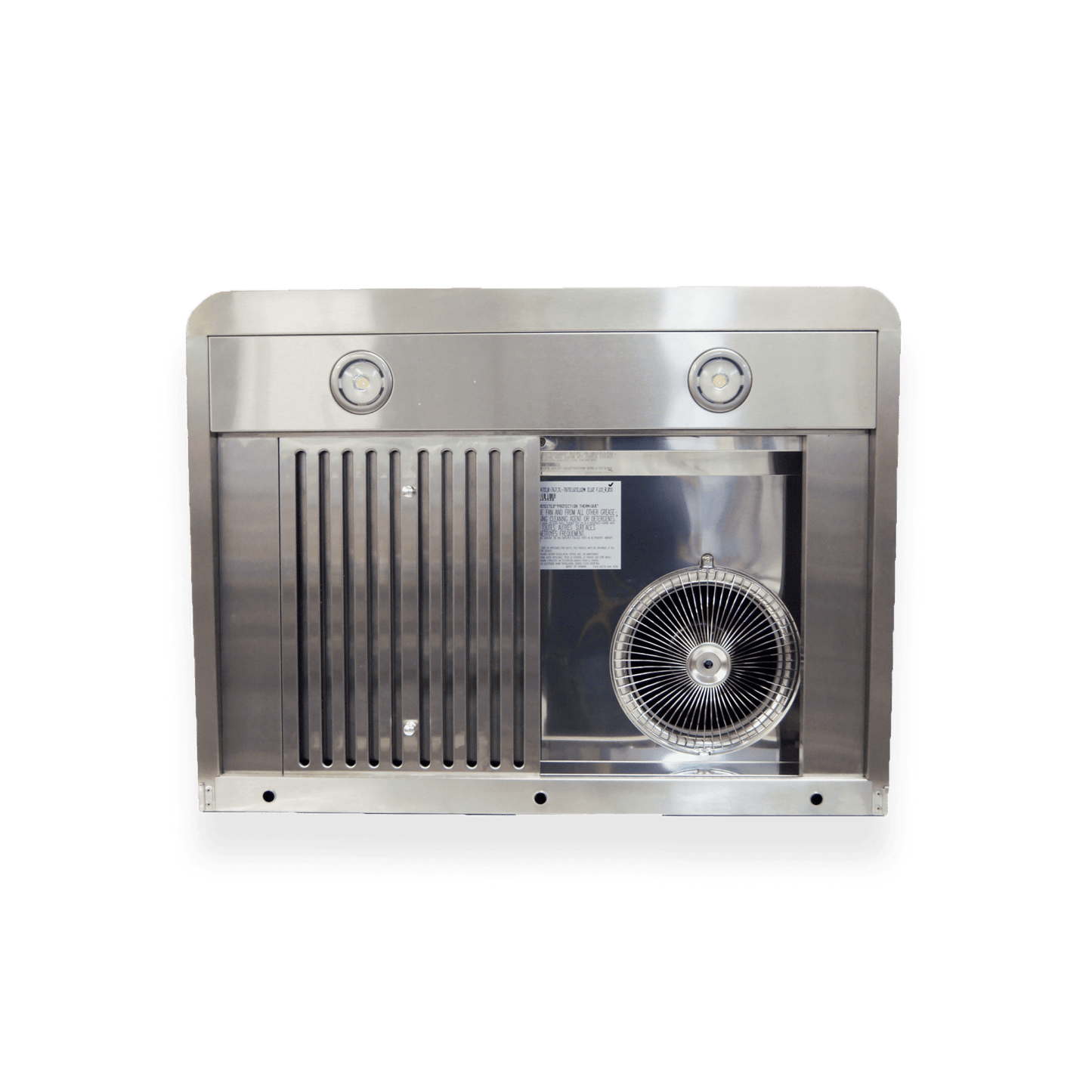

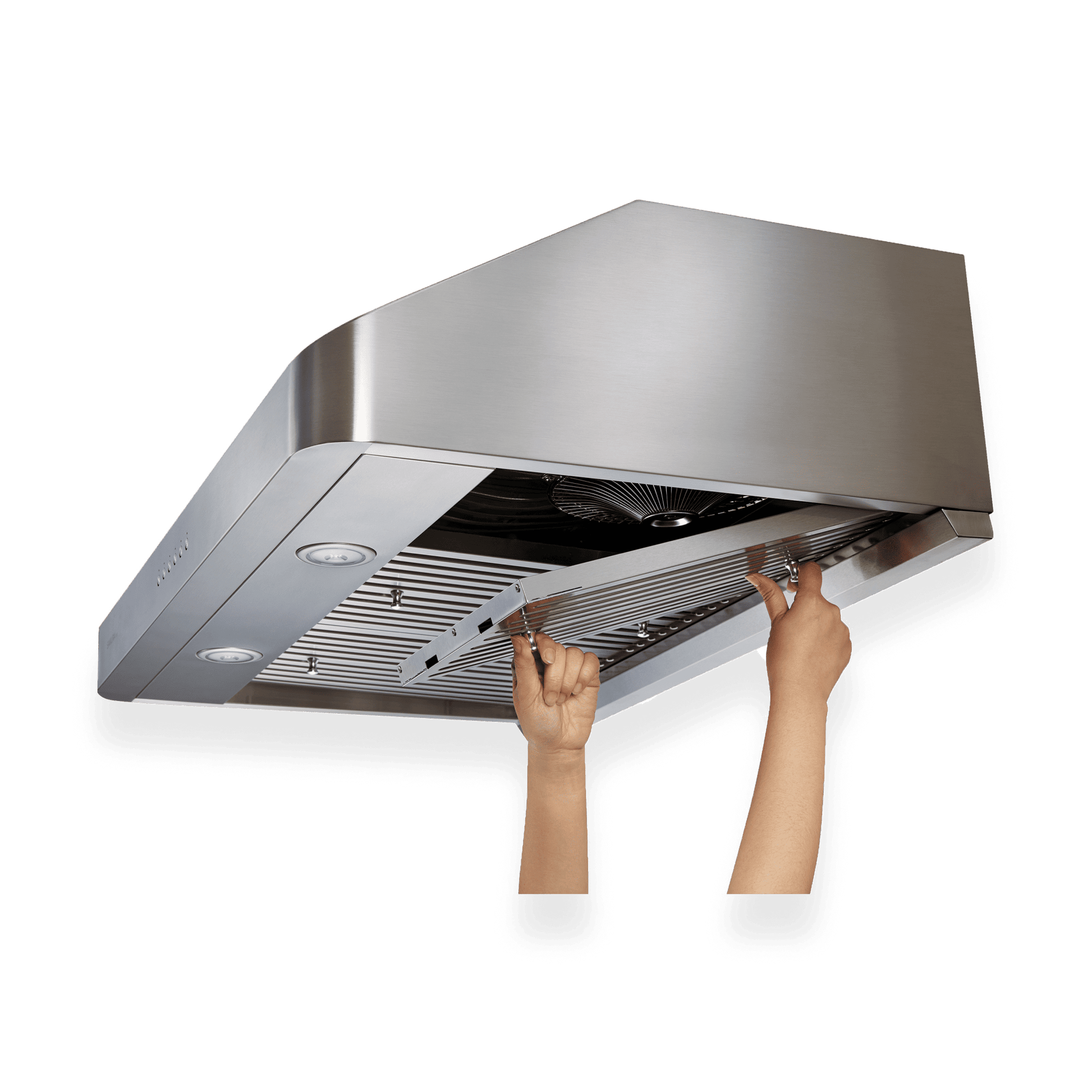

• Baffle filter system, all stainless steel dishwasher safe and easy to clean.
• Dishwasher safe stainless Steel detachable rear oil trapping container
• Dual LED light both bright and save energy

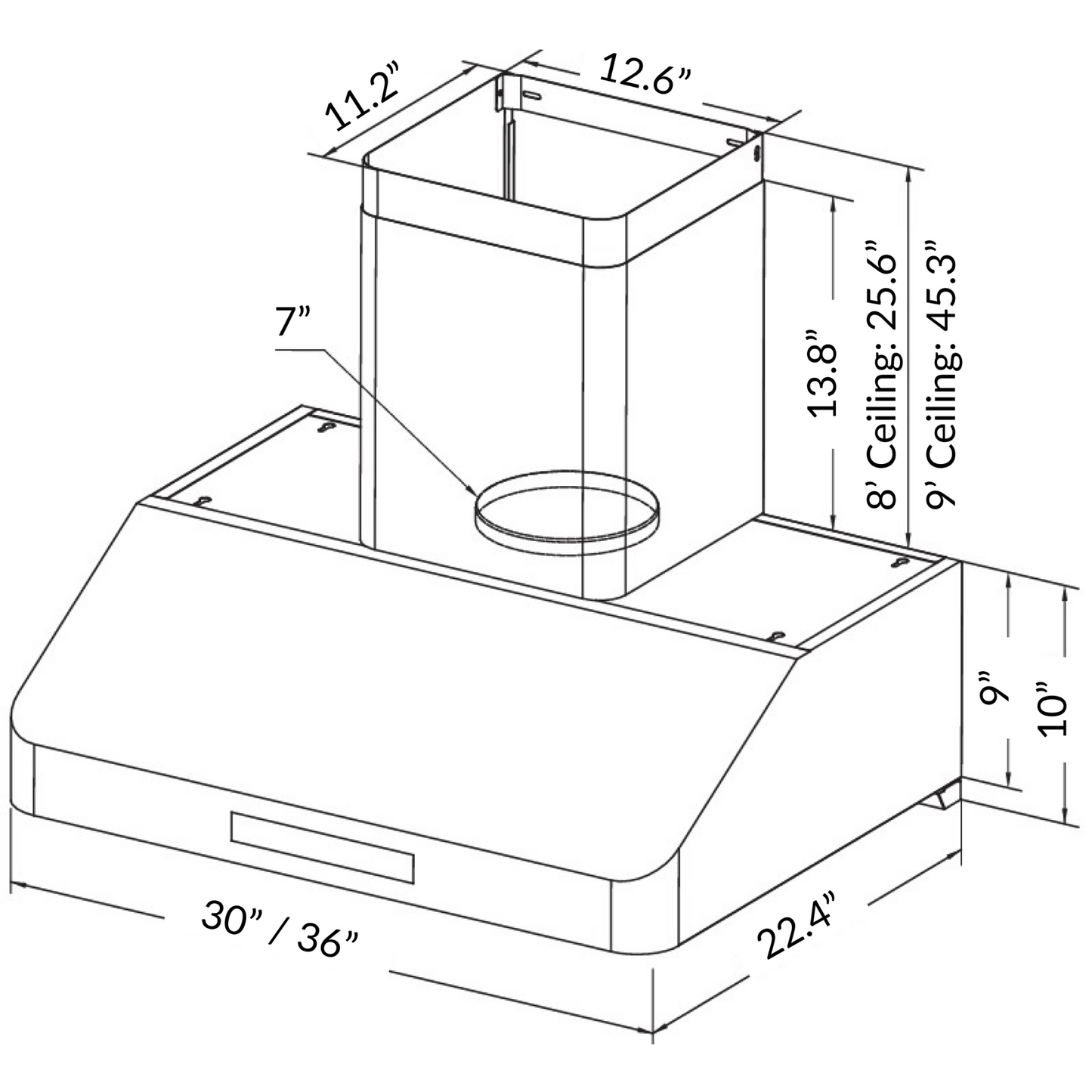

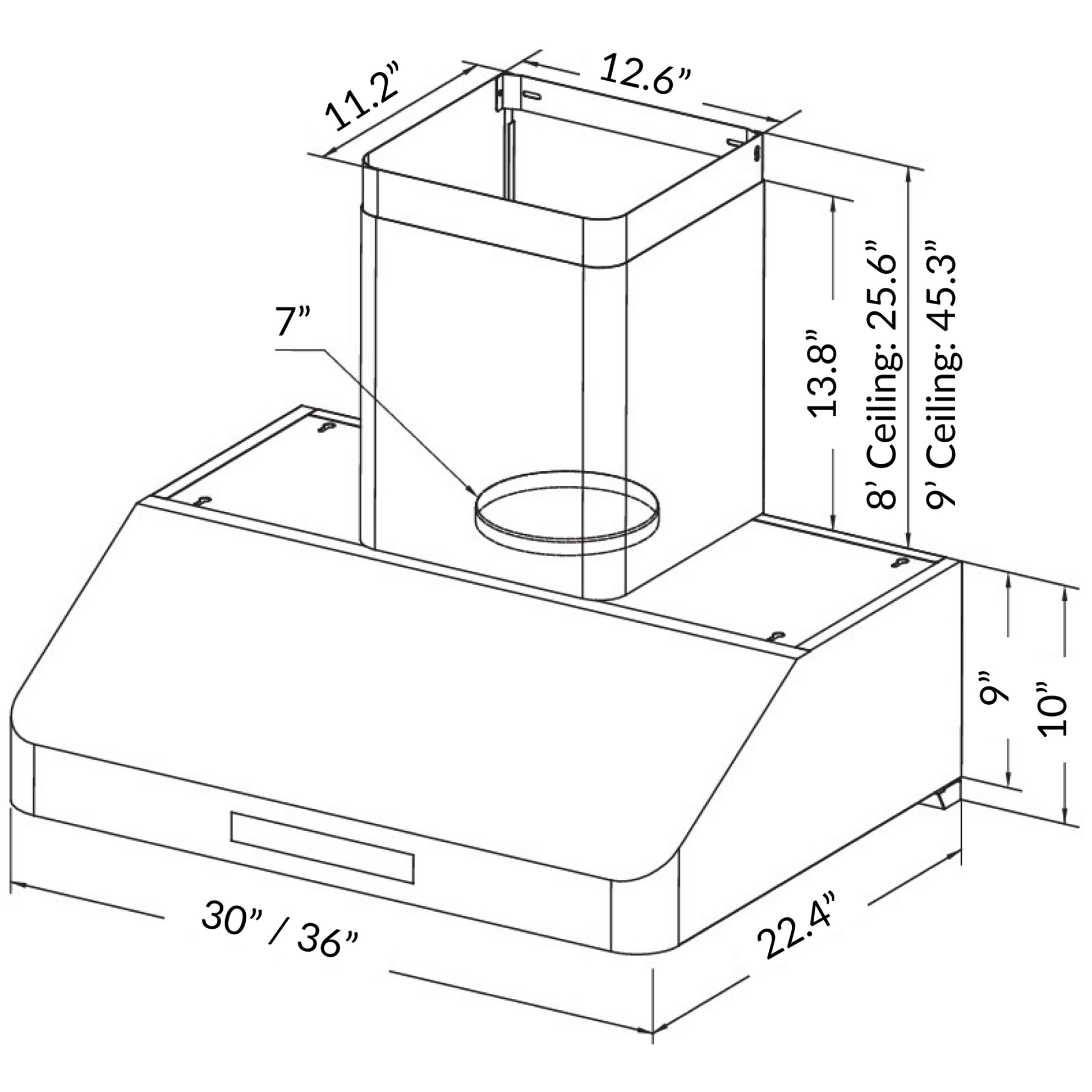

30" Model - 30" W x 22.4" D X 9" H

36" Model - 36" W x 22.4" D X 9" H

Net Weight 20kg

Gross Weight 24kg

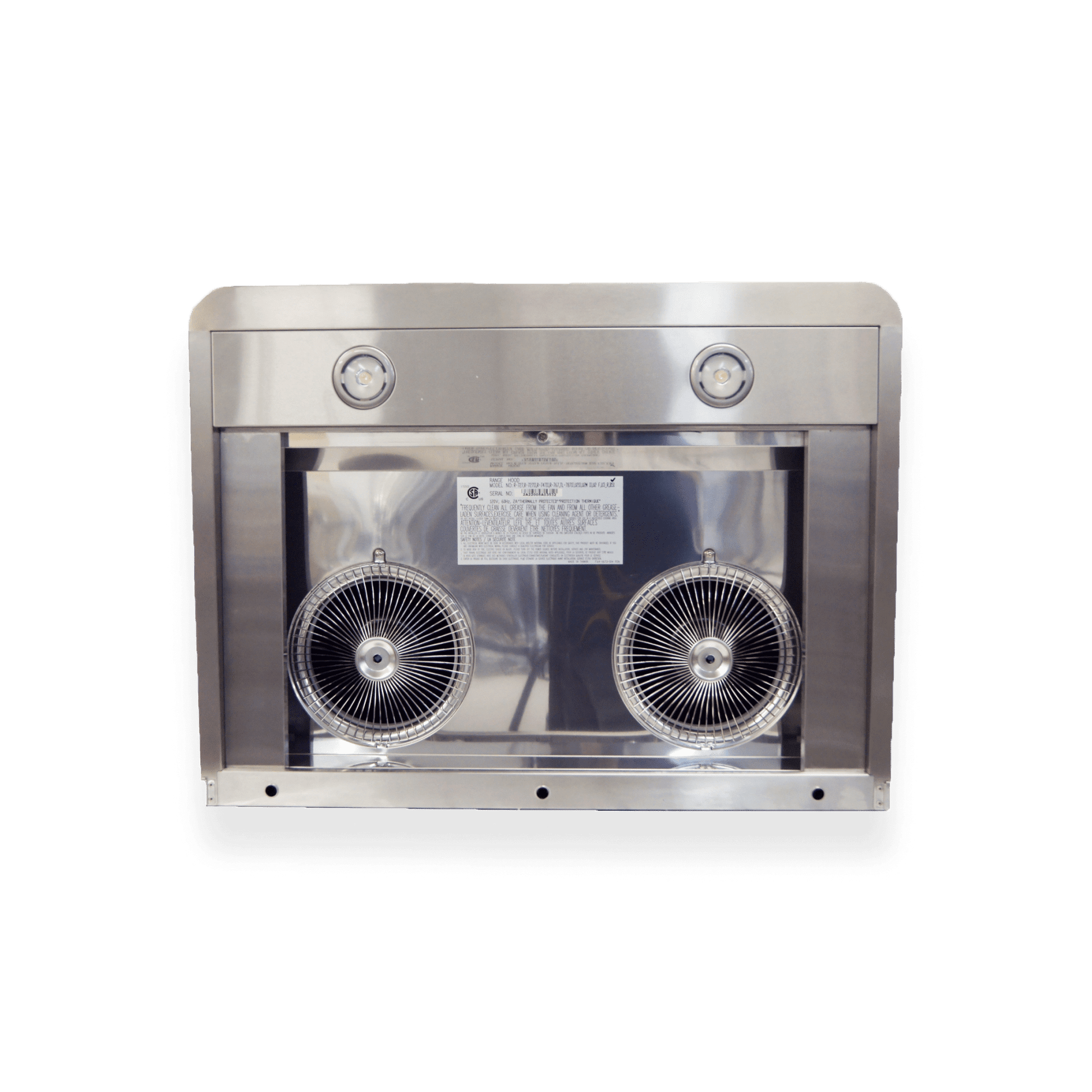

Motor: Twin AC Motors

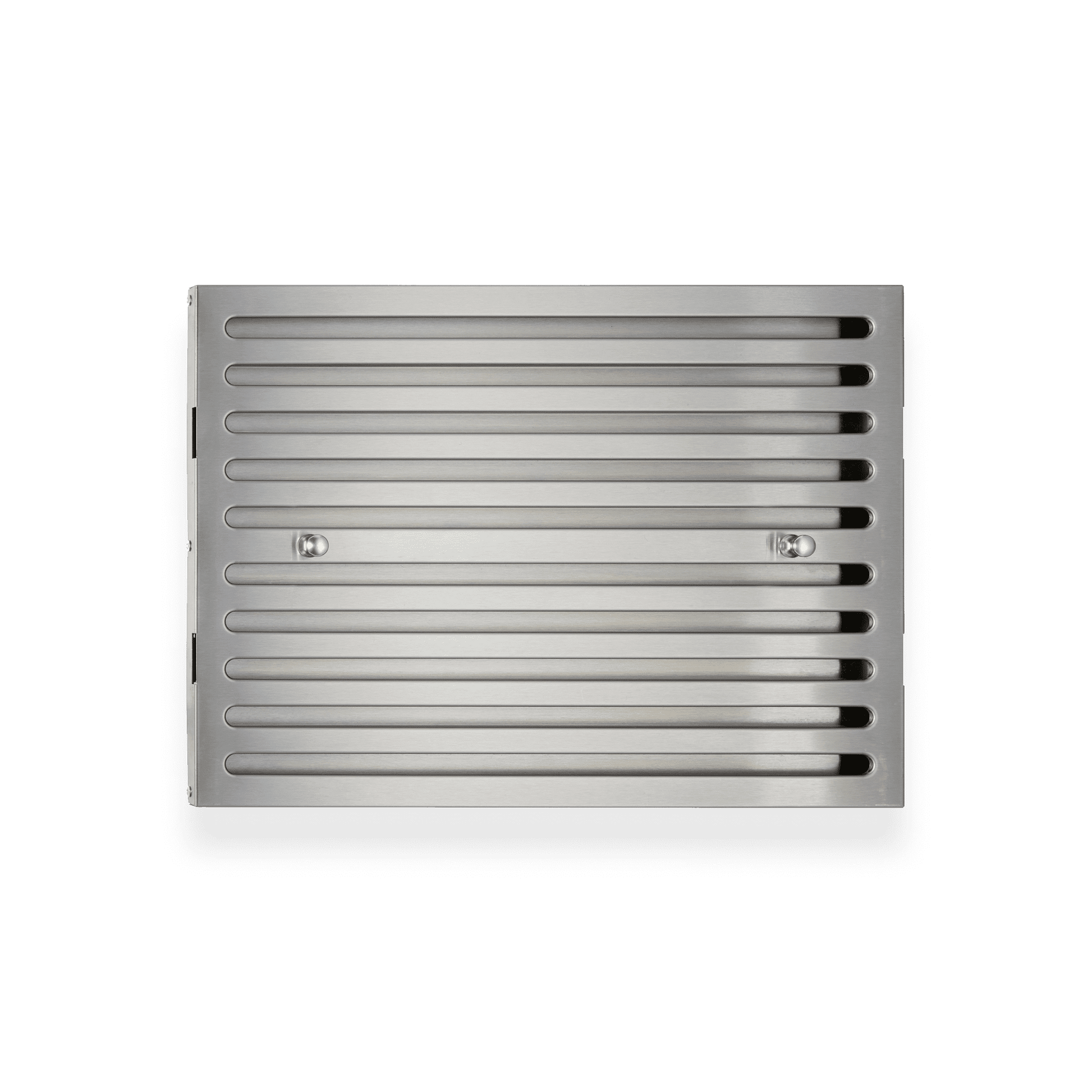

Filter: Stainless Baffle Filter

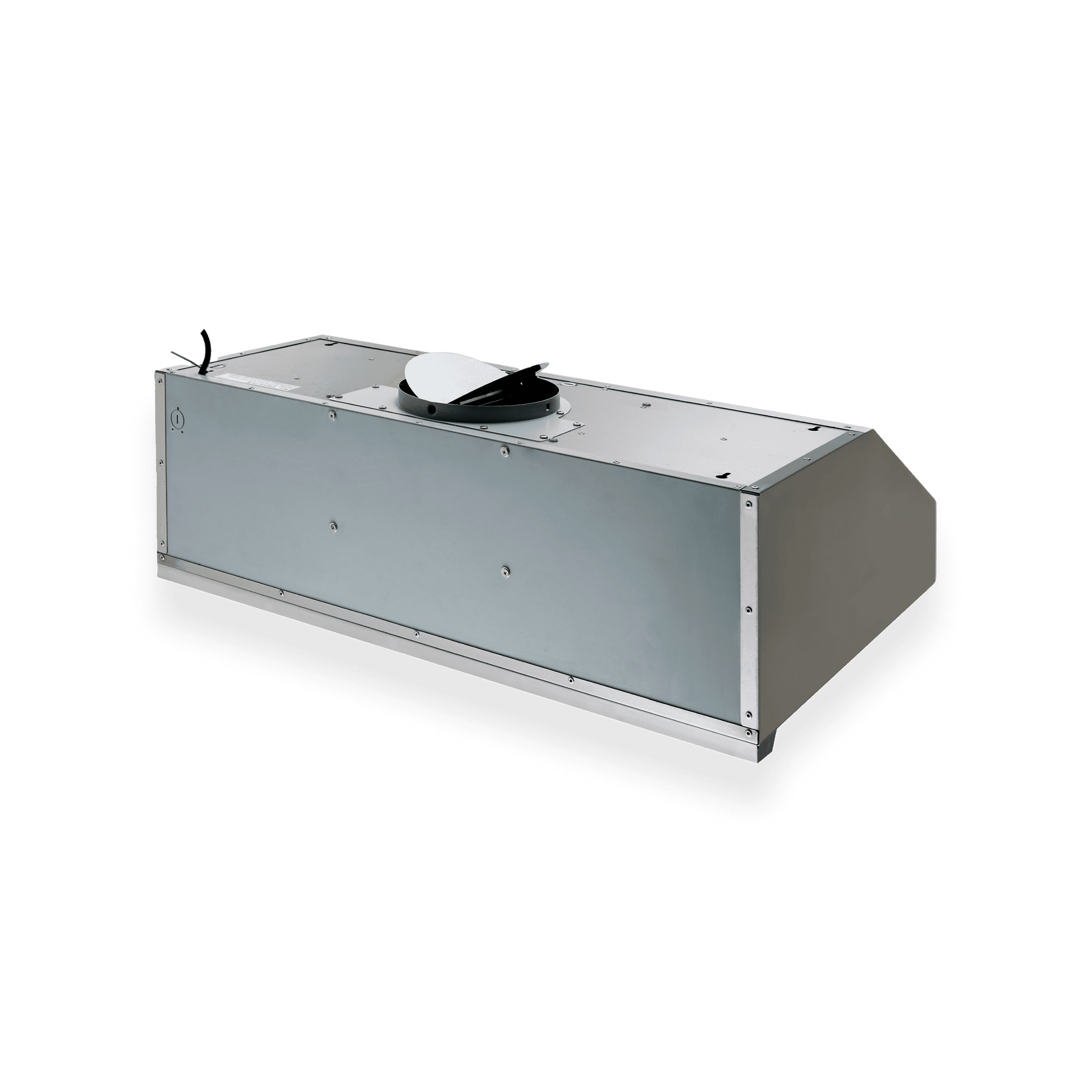

Duct Size: 6" / 7"

Illumination: LED 1W*2

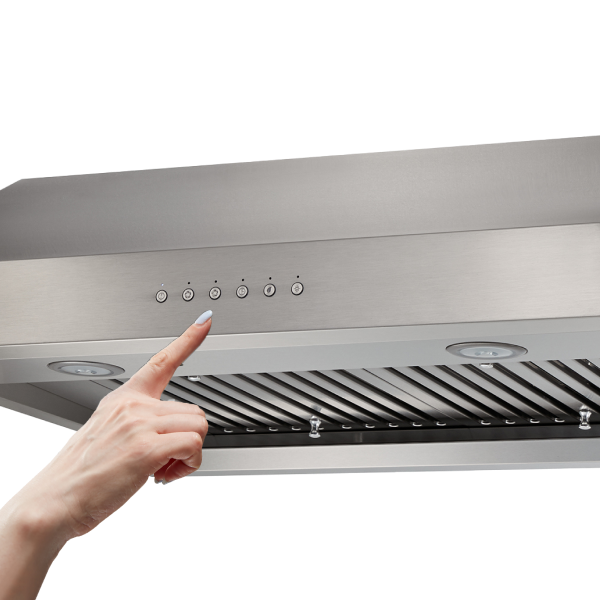

Switch Type: Metal Control Buttons

Speed: 2 speeds

Noise level: 3 - 6 Sones

CFM: 250 - 1000

Power Consumption: 180W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 33-35”
Gas stove: 35-37”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.

B51 User manual (English)
