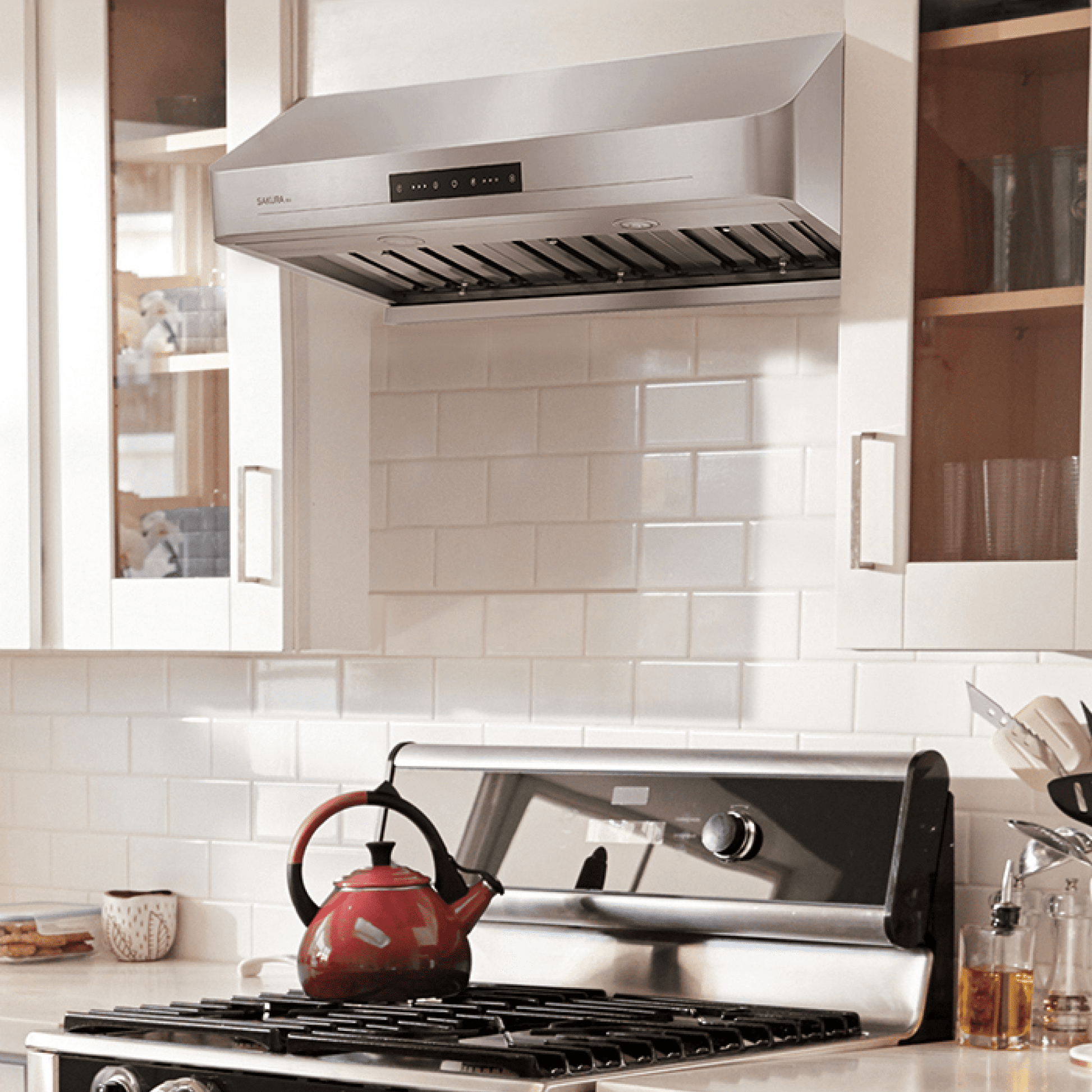

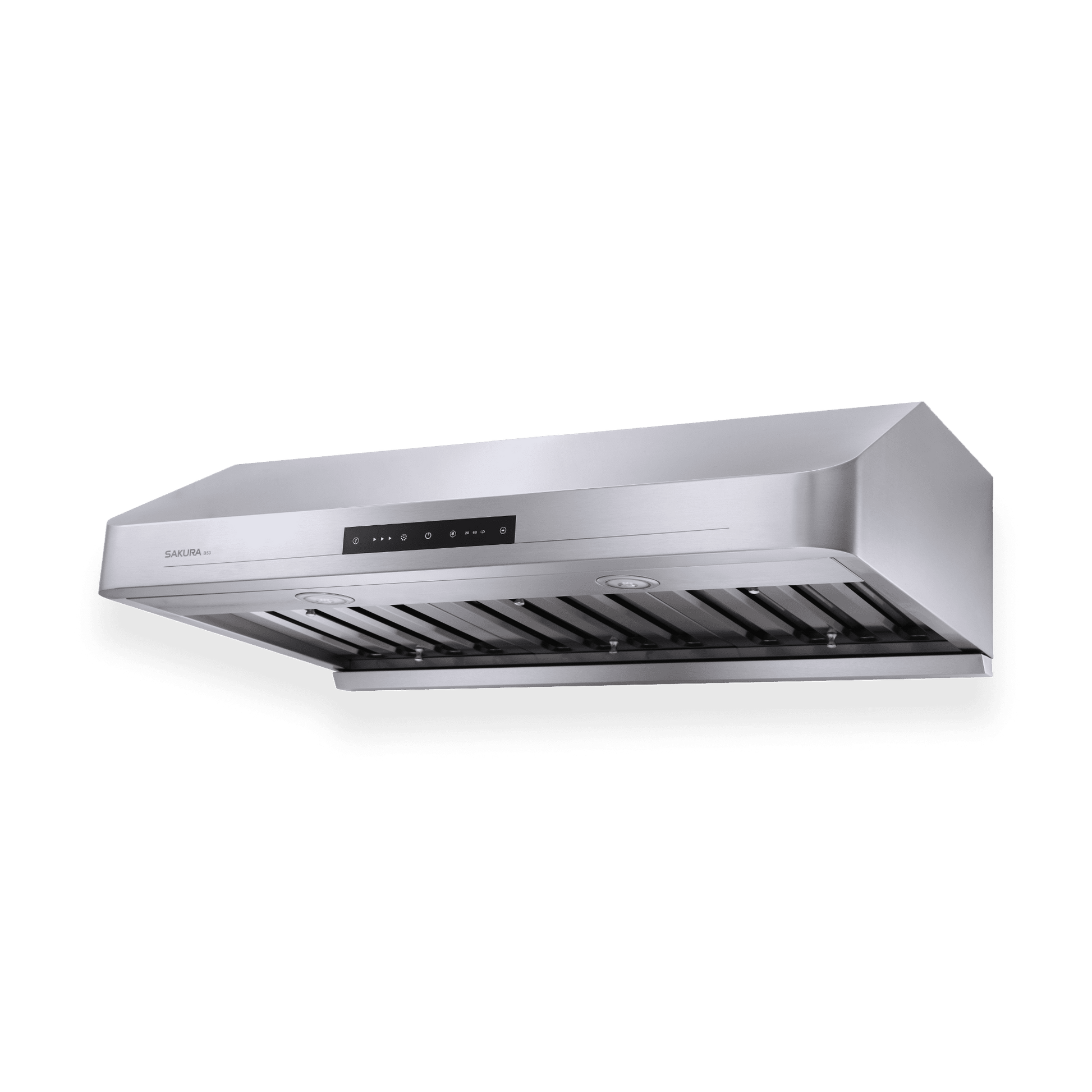

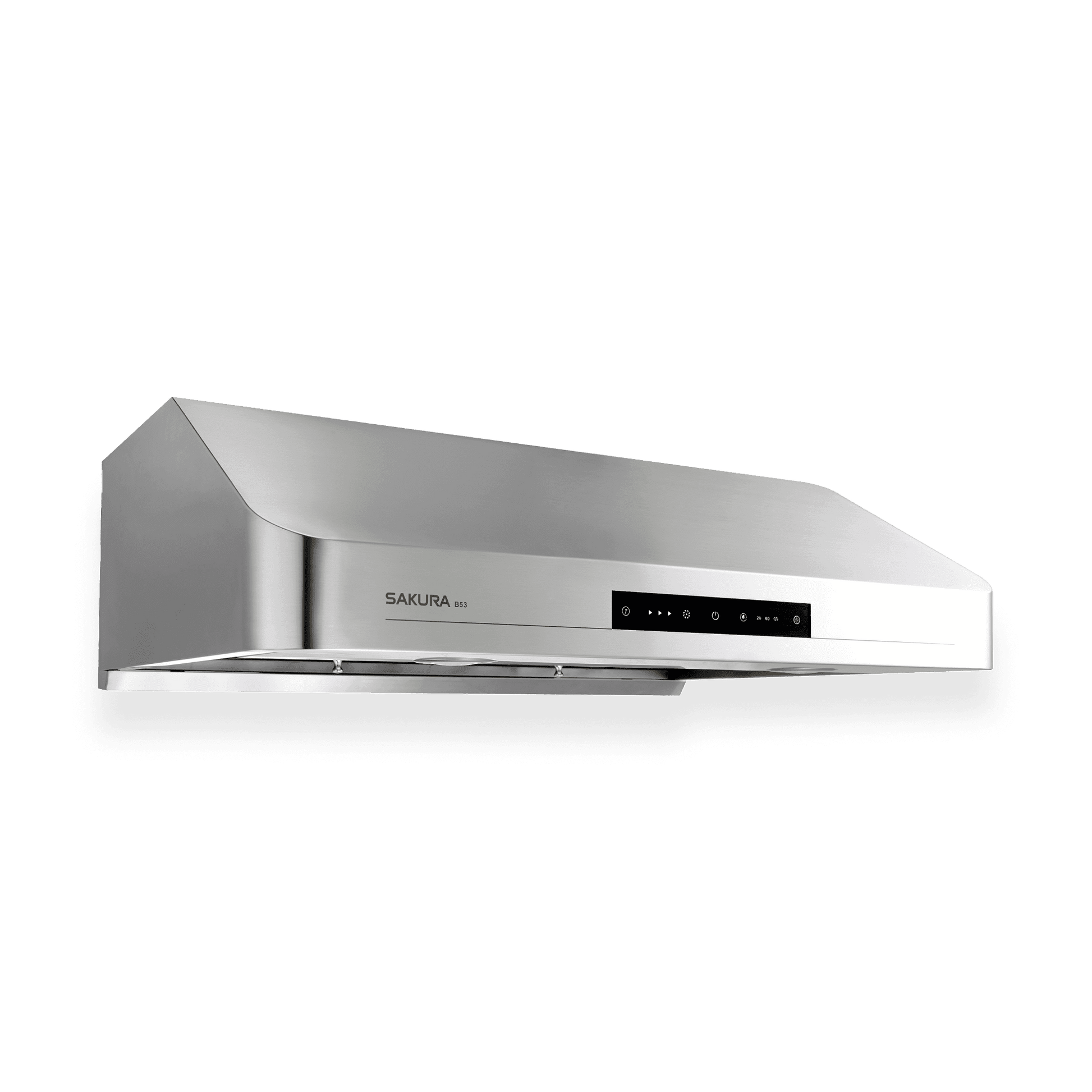

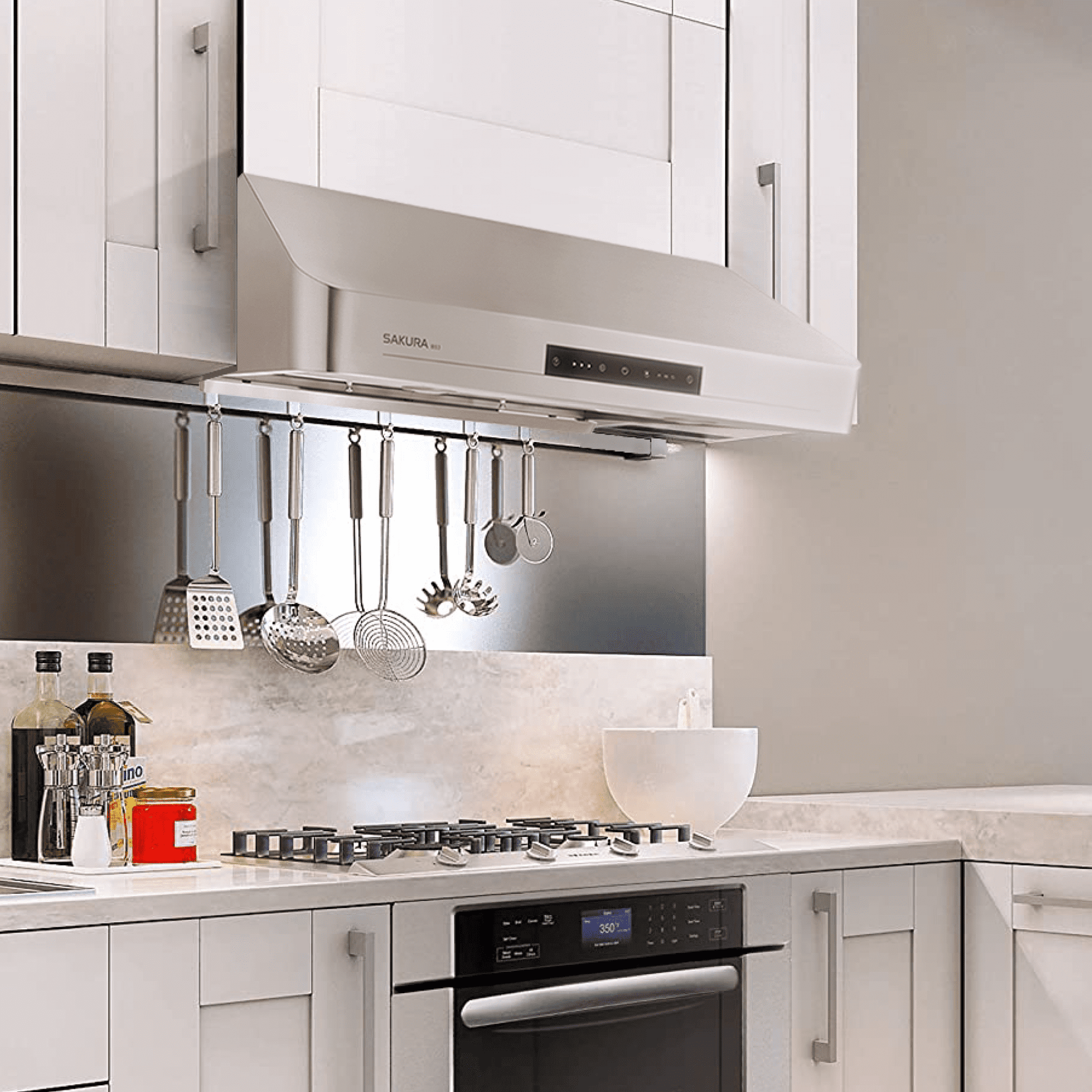

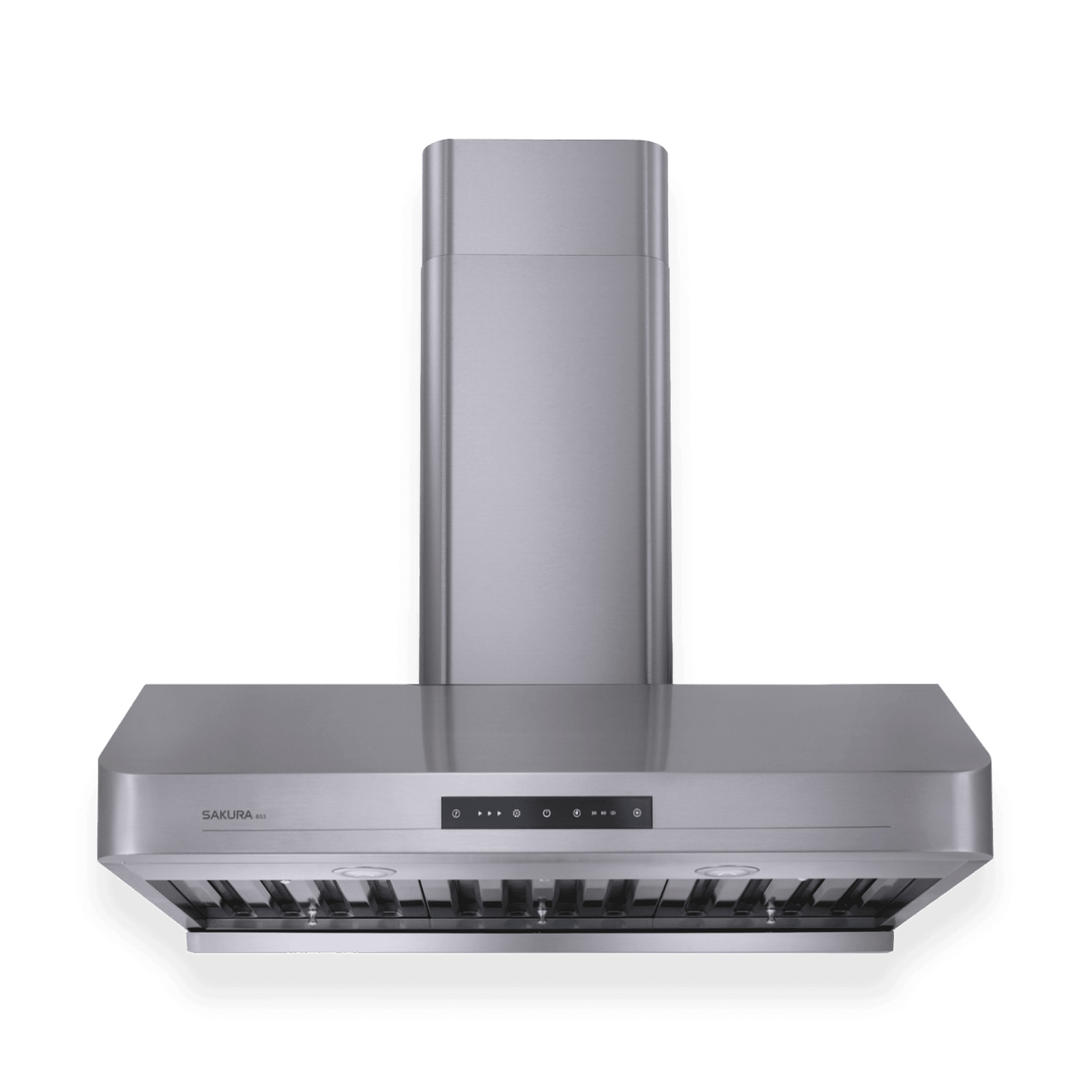

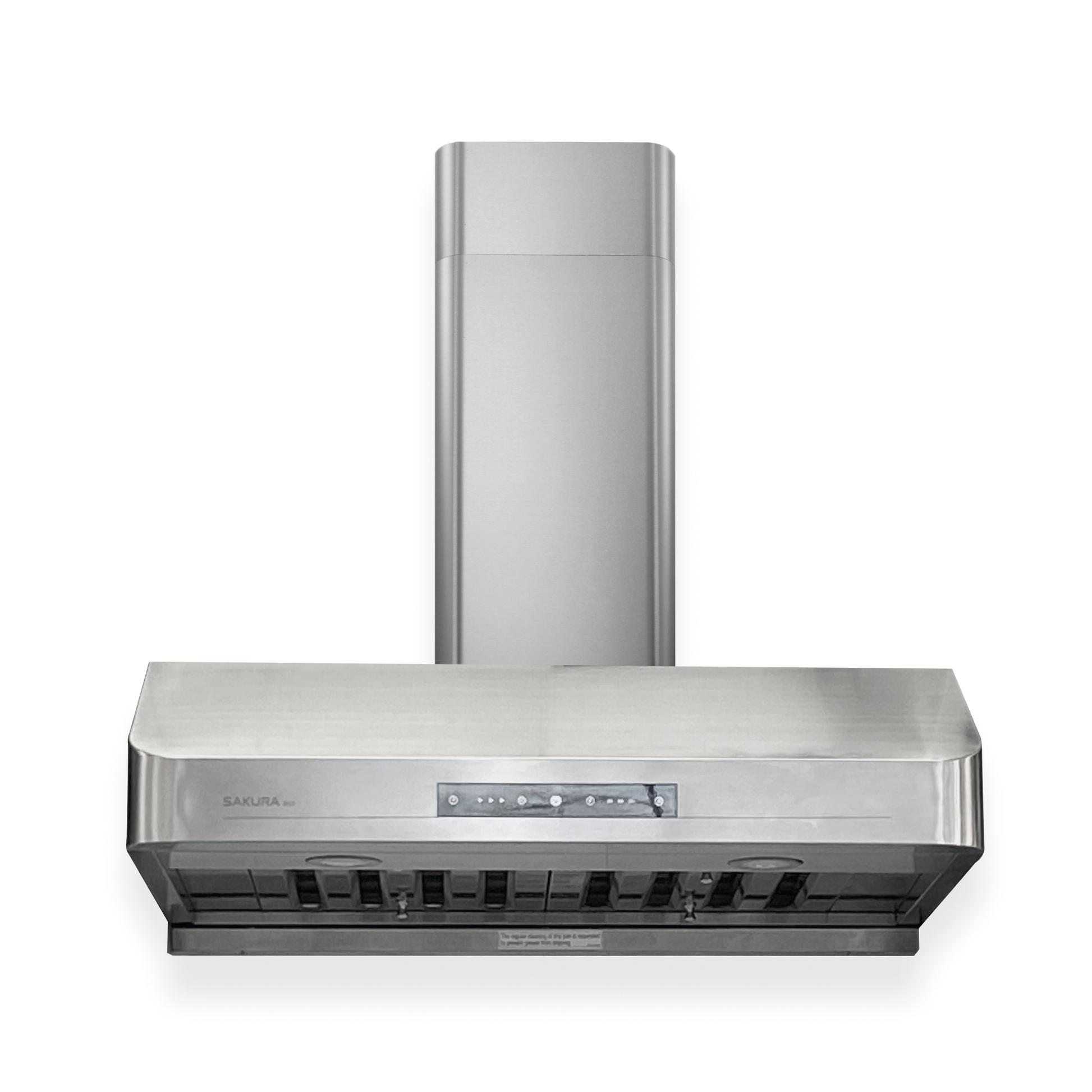

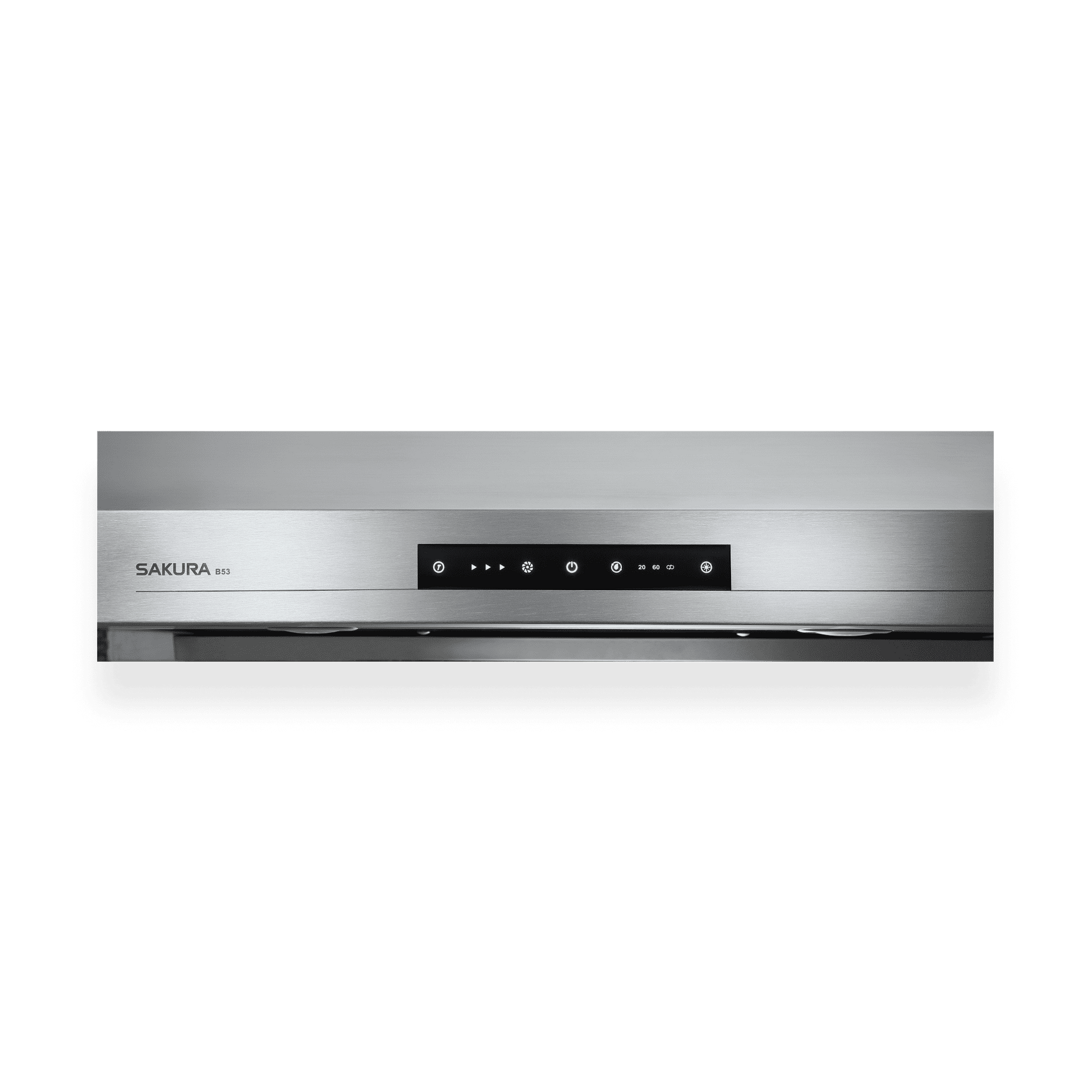

B-53 Sakura 30" or 36" Range hood - Wall-mount Chimney

• Made in Taiwan

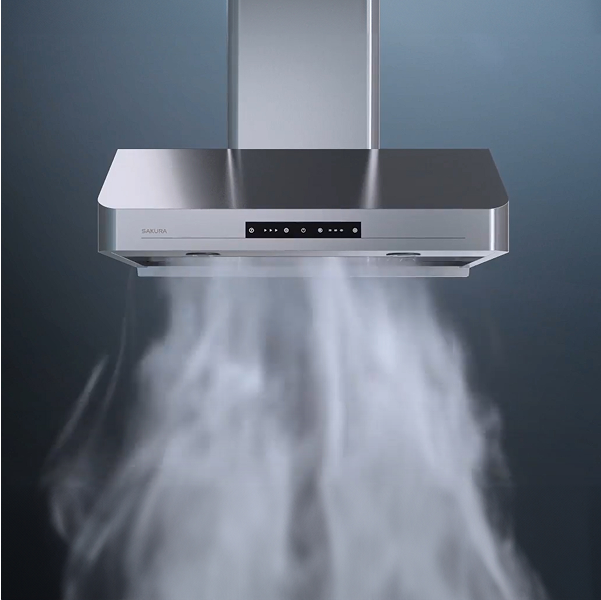

• Max 1200 CFM
• Newest award winning design of DC motors with turbo speeds

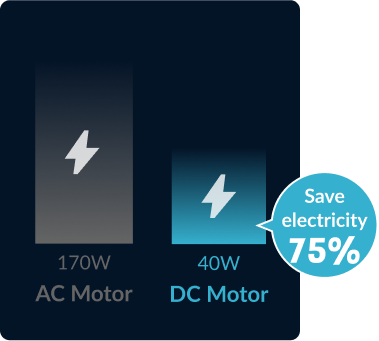

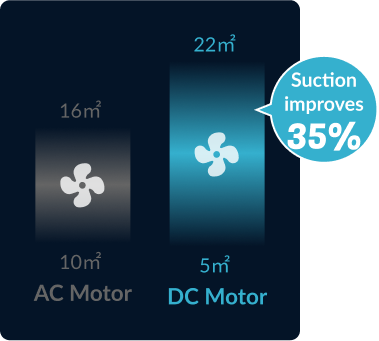

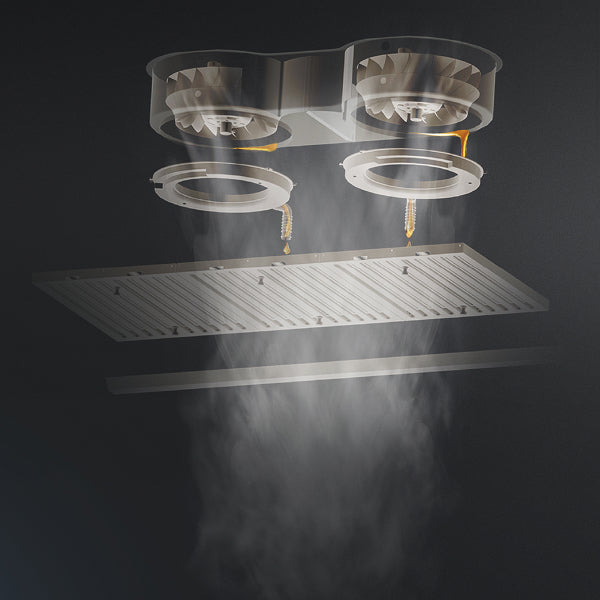

• Two powerful DC motors, increasing suction up to 35%, RPM increase up to 40% from AC motors

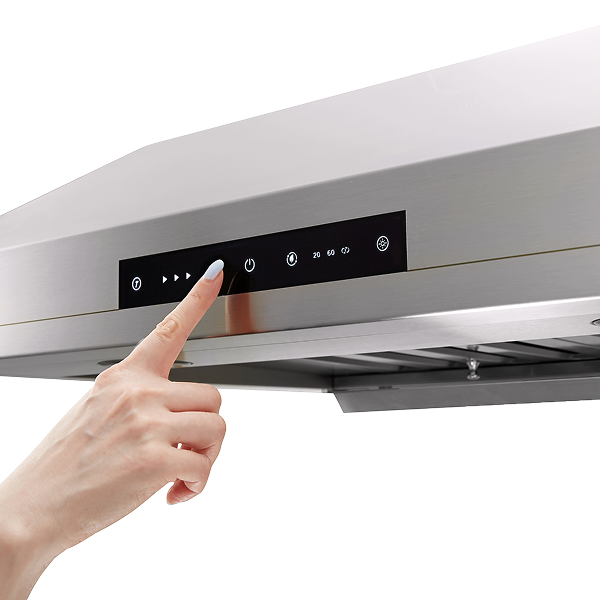

• Touch screen control with 4 speeds satisfies all cooking requirements
• Whispering quiet air purifier function keeps kitchen air refreshed

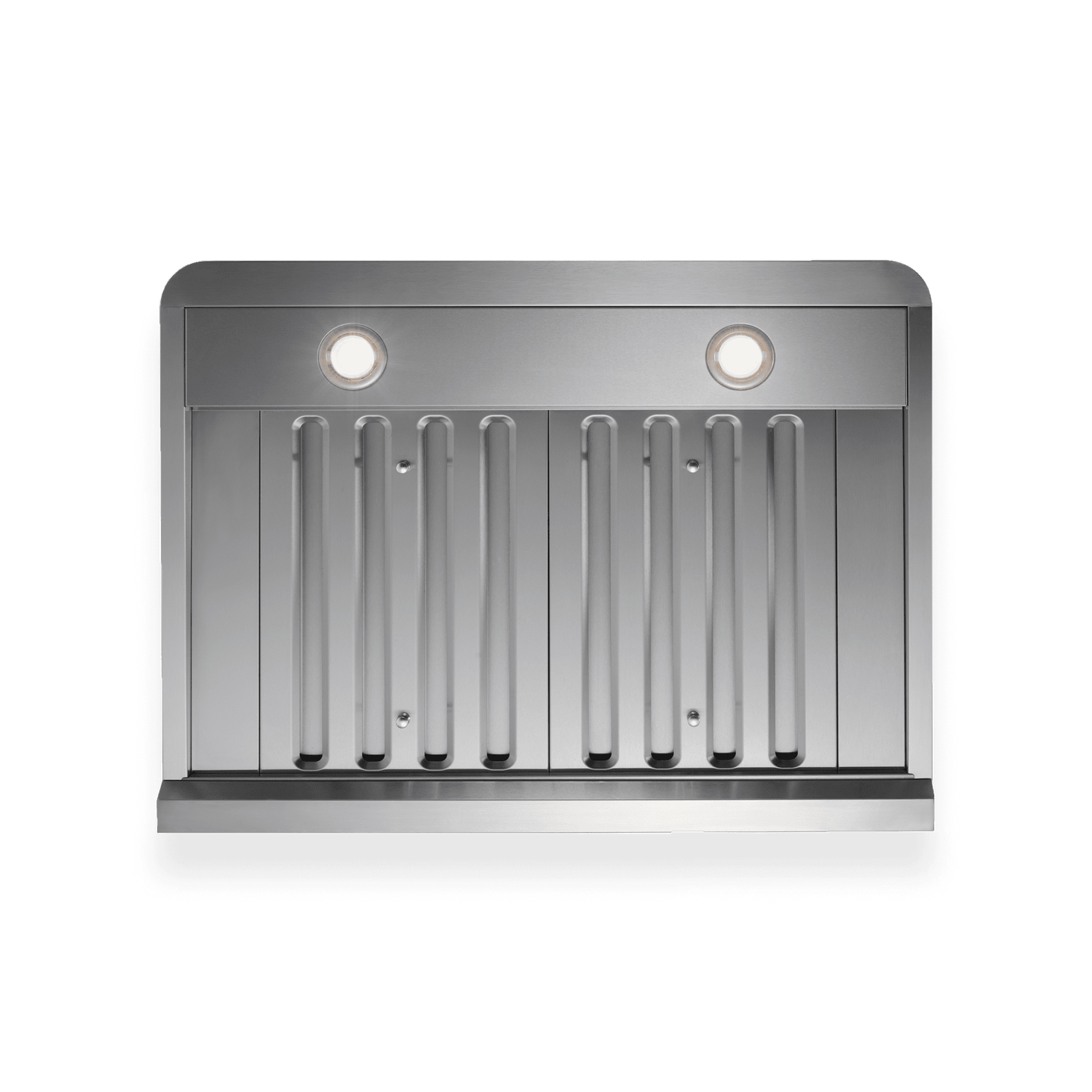

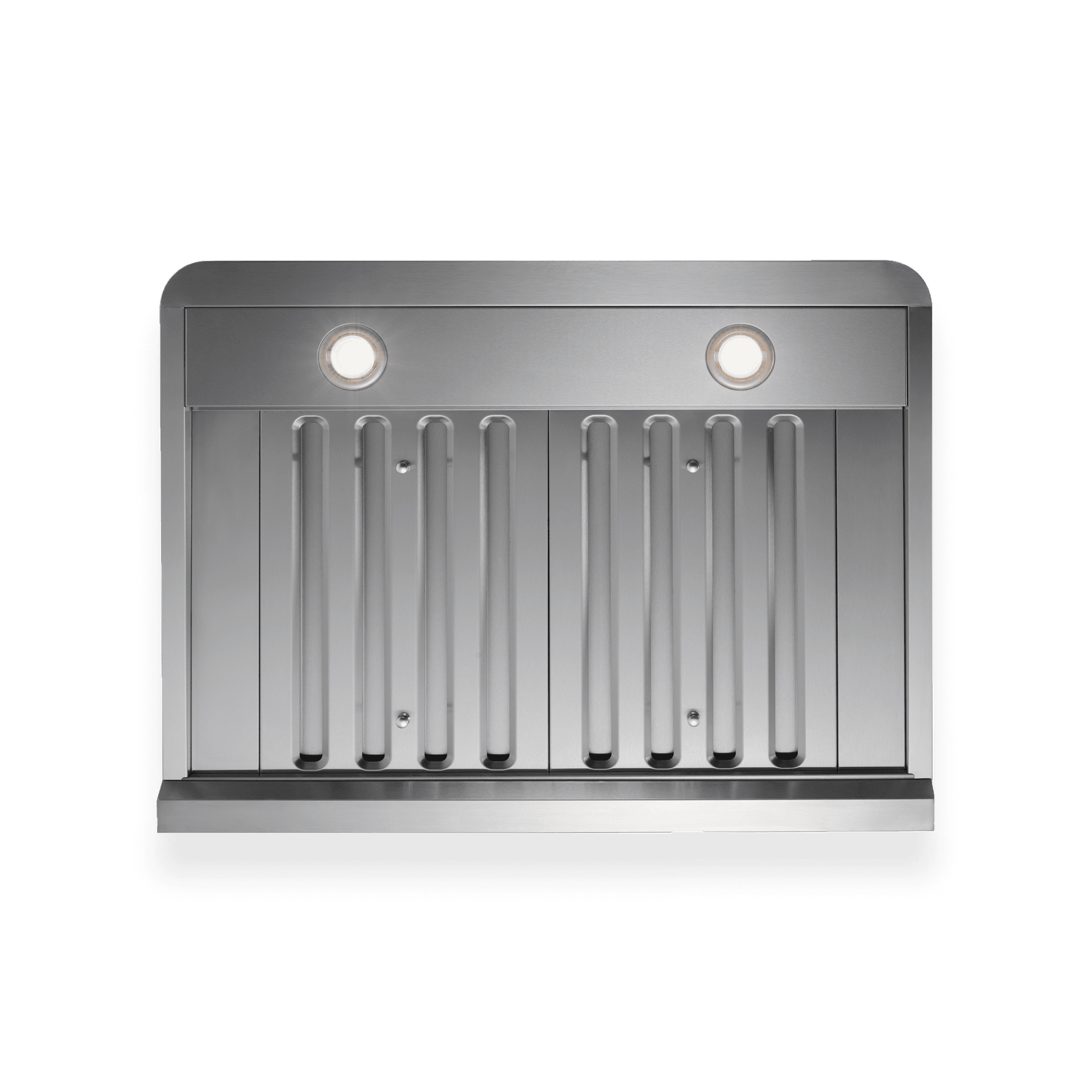

• Baffle filter system, all stainless steel dishwasher safe and easy to clean.
• Dishwasher safe stainless Steel detachable rear oil trapping container

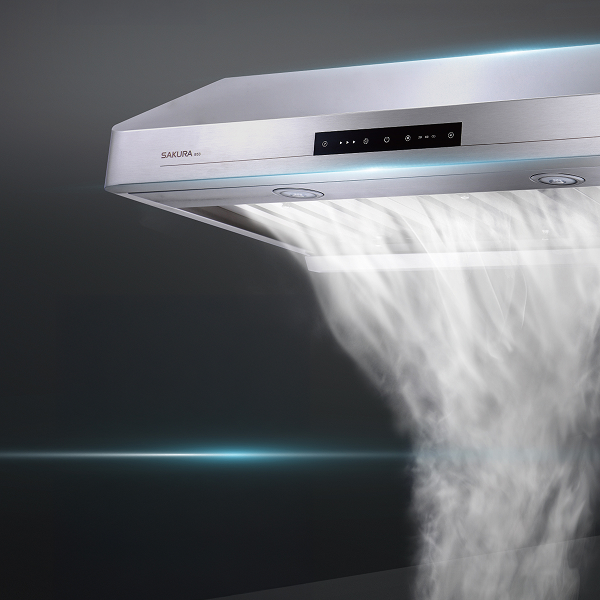

• Air Change Mode uses little energy to keep smell away.
• 20 and 60 minutes timer or stay on function allows you walk away after cooking

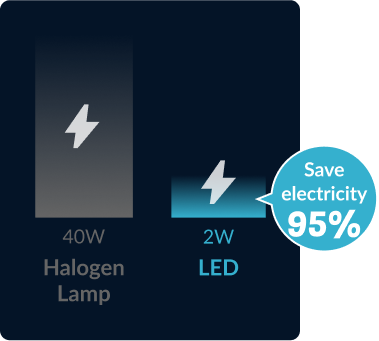

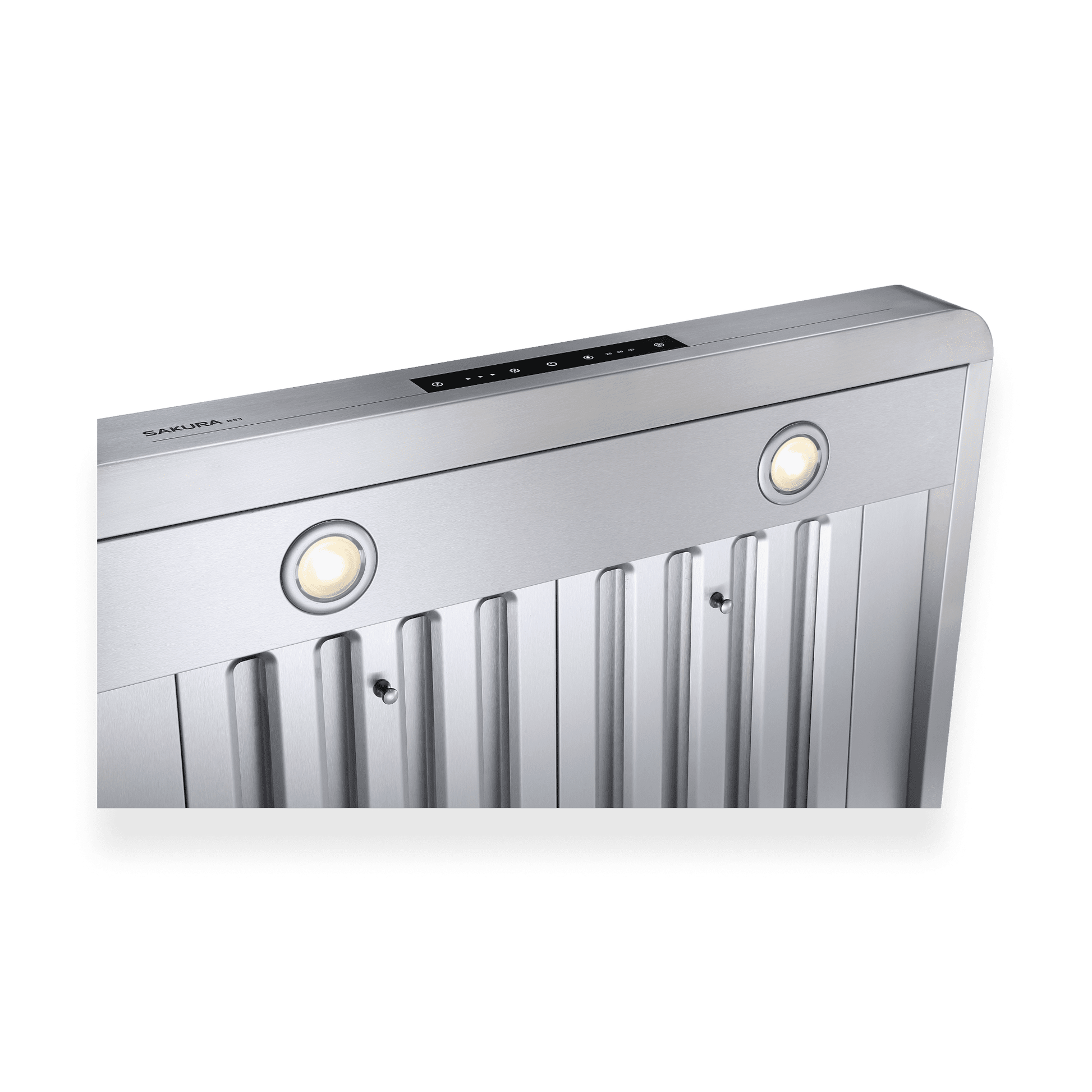

• Dual LED light both bright and save energy
• Distance Requirement from top of hood to the counter top:
  Electric stove: 33-35”
  Gas stove: 35-37”

30" Model - 30" W x 22.4" D X 9" H

36" Model - 36" W x 22.4" D X 9" H

Net Weight 20-24kg

Gross Weight 24-28kg

Motor: Twin DC Motors

Filter: Stainless Baffle Filter

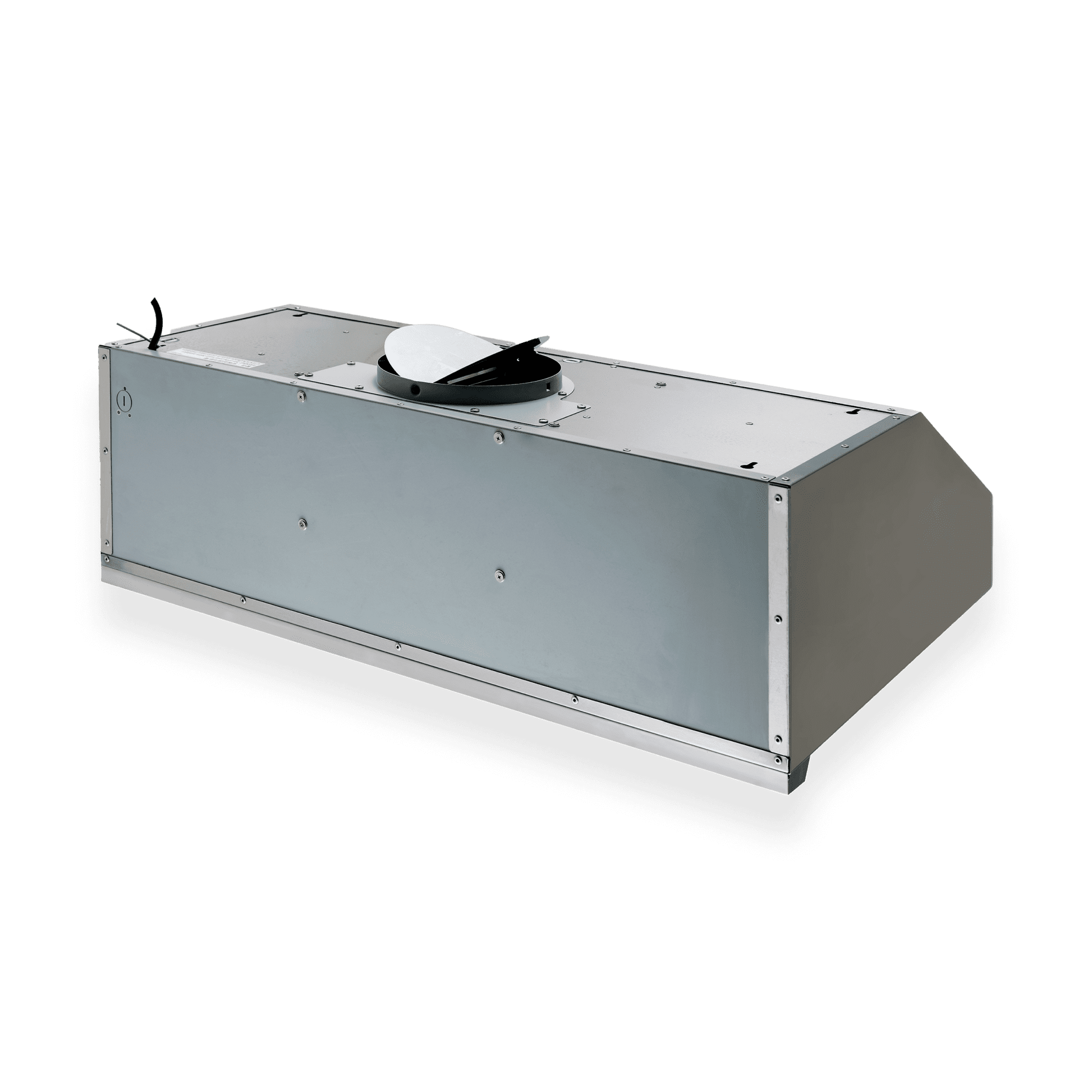

Duct Size: 6" / 7"

Illumination: LED 1W*2

Switch Type: Sensor touch screen

Speed: 4 speeds

Noise level: 2~5 Sones

CFM: 150 - 1200

Power Consumption: 280W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 33-35”
Gas stove: 35-37”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.
