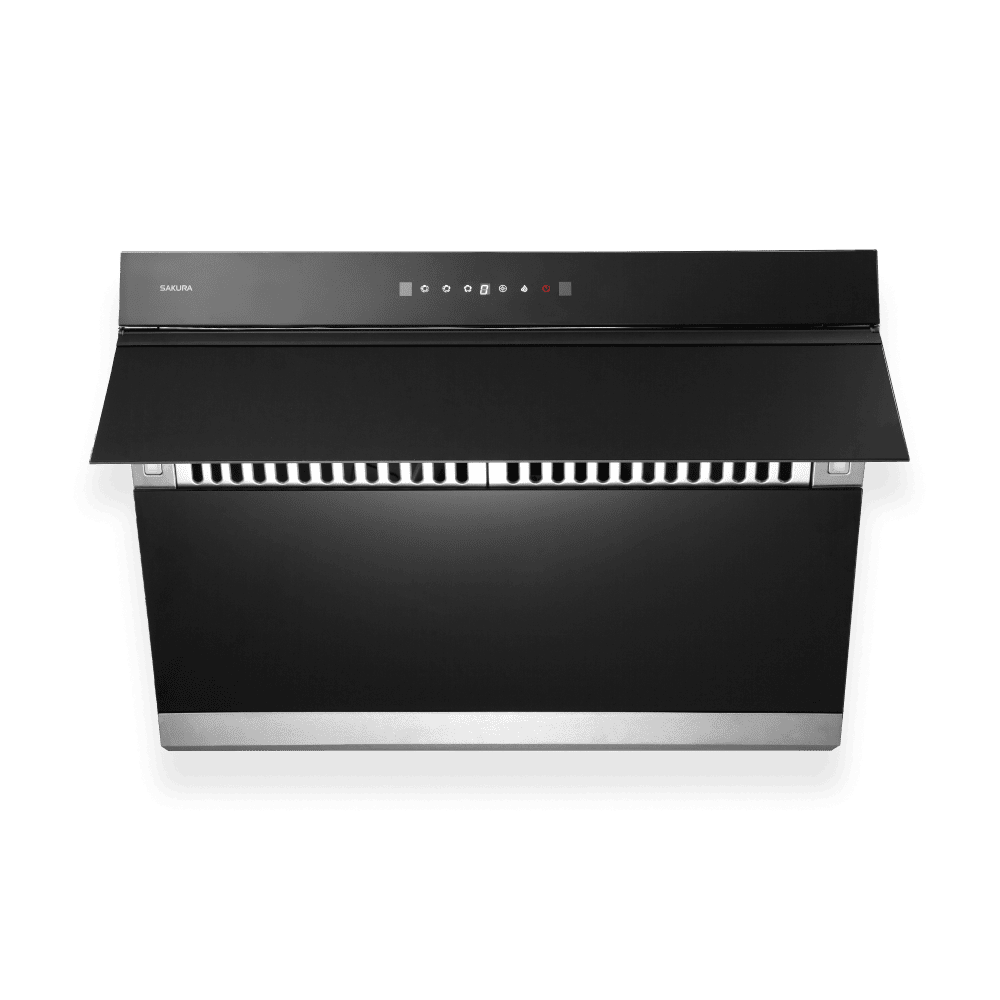

R-7261 Sakura 30" Heat Auto Clean Range Hood - Wall-mount Chimney

• Max 1000 CFM
• 3-min timer, extracts lingering odors after cooking.

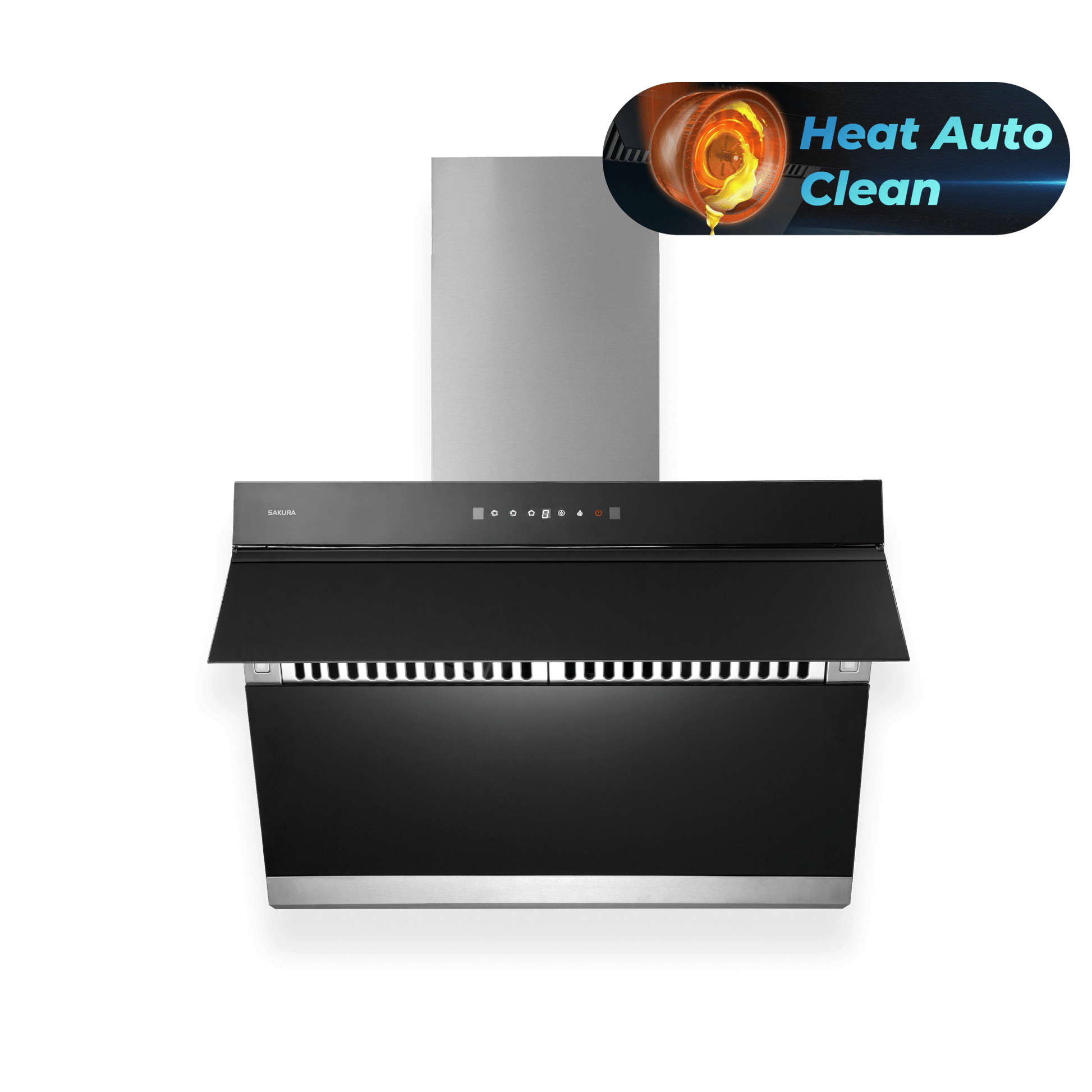

• 10-min auto heating is the perfect solution for interior cleaning, all through one simple touch.
• Using infrared sensor control you can turn kitchen range hood on or off, lights up and adjust speed simply with a wave of your hand. Touch-free, makes cooking more convenient without leaving a single fingerprint on the range hood.
• Powerful suction with 23-inch depth large coverage area, complete fume exhausting is assured. 90 degree golden optimum angle prevents fumes from escaping, and creates efficient suction zone. Perfectly captures smoke from front and back burners.
• Nanotech oil-free coating with self-cleaning property, which minimizes oil and water adhesion to the filter and resists to scratching. The grease inside will be collected by large Grease Tray, while the surface can be easily cleaned by kitchen cloth.
• Stainless steel large oil tank has more capacity, Reduce cleaning frequency.
• Sound remainder and 3 second delay closing designed provide safer operation while smoke plate is working. Screen Lock Function prevents accidental start when cleaning the range hood.
• 3 Prong plug-in cable

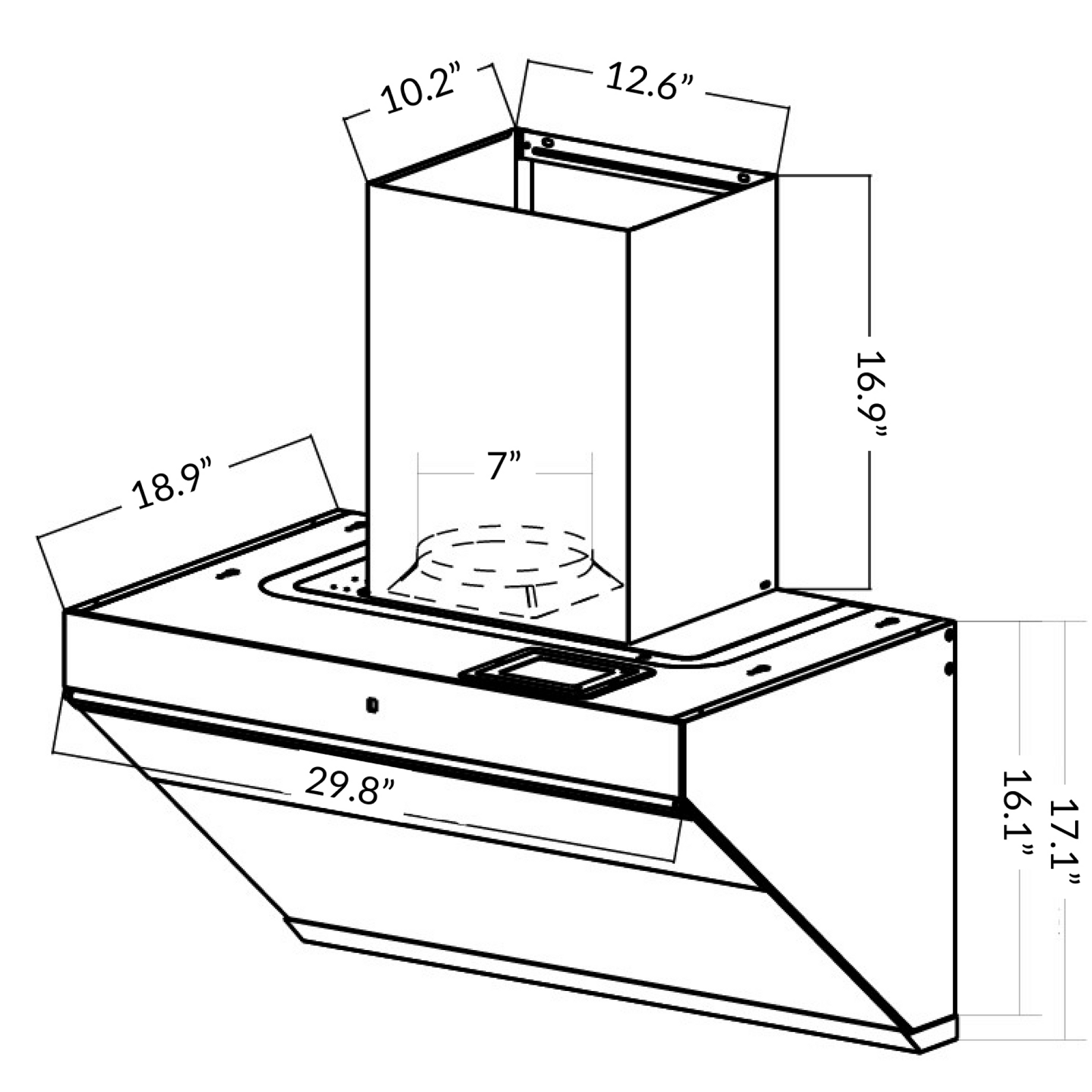

30" Model - 29.8" W x 18.9" D X 17.1" H

Net Weight 19kg

Gross Weight 23.6kg

Motor: Single AC motor

Filter: Stainless Baffle Filter

Duct Size: 6" / 7"

Illumination: LED 1.5W*2

Switch Type: Wave control and sensor touch screen

Speed: 3 speeds

Noise level: 2 - 5 Sones

CFM: 300 - 1000

Power Consumption: 350W

Voltage: 120V~60Hz

Safety Certificate: ETL

Origin: Designed in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 33-35”
Gas stove: 34-36”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.

R-7261 User manual (English)

R-7261 User manual (Chinese)
