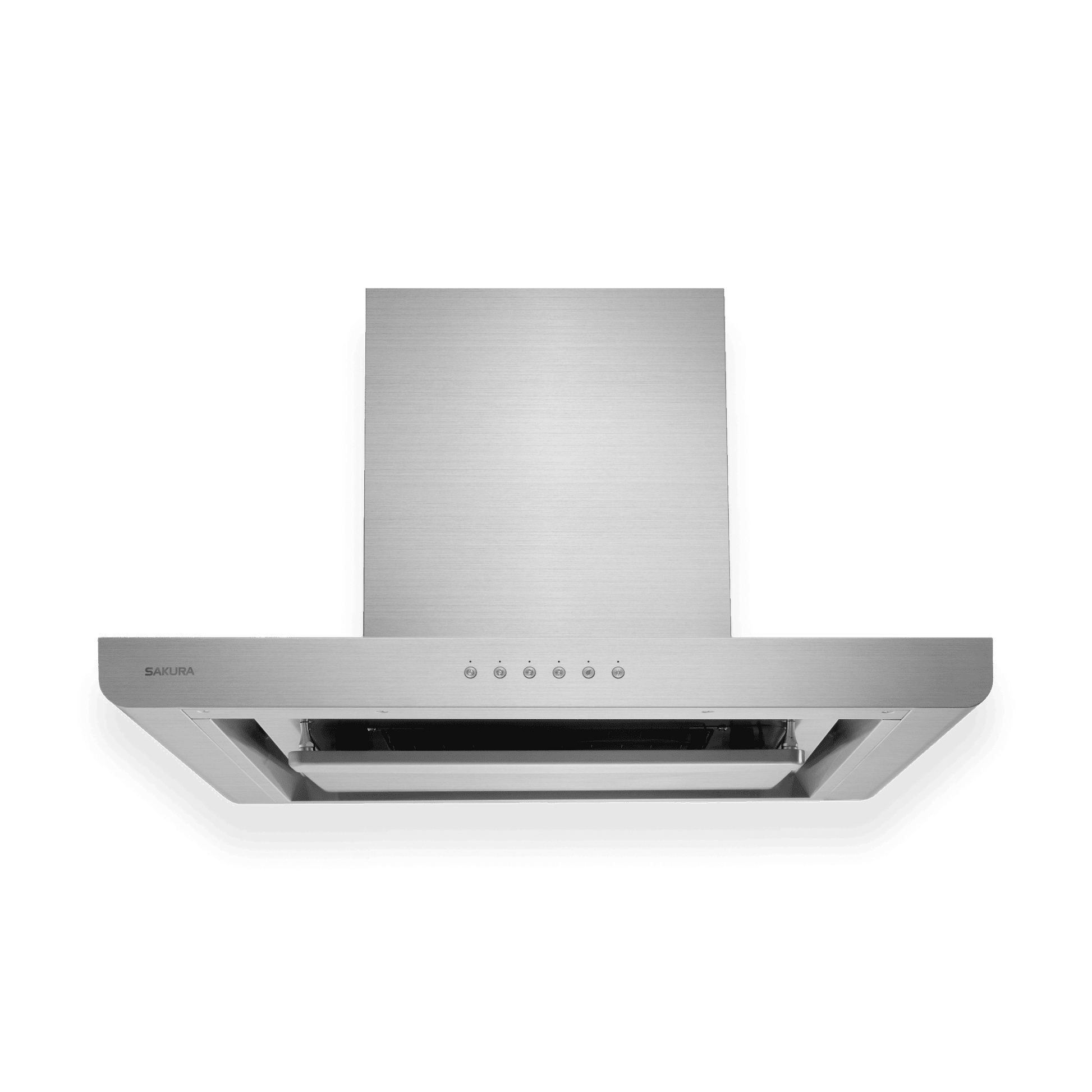

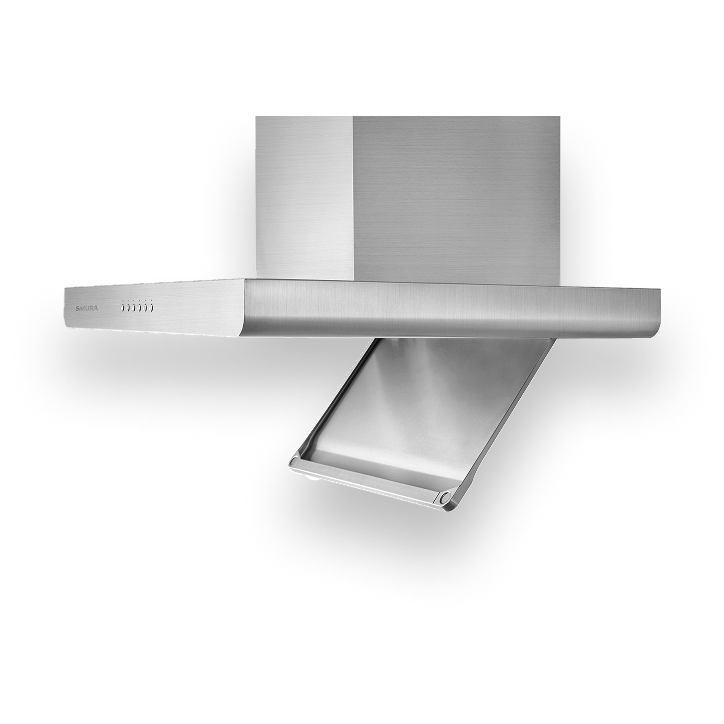

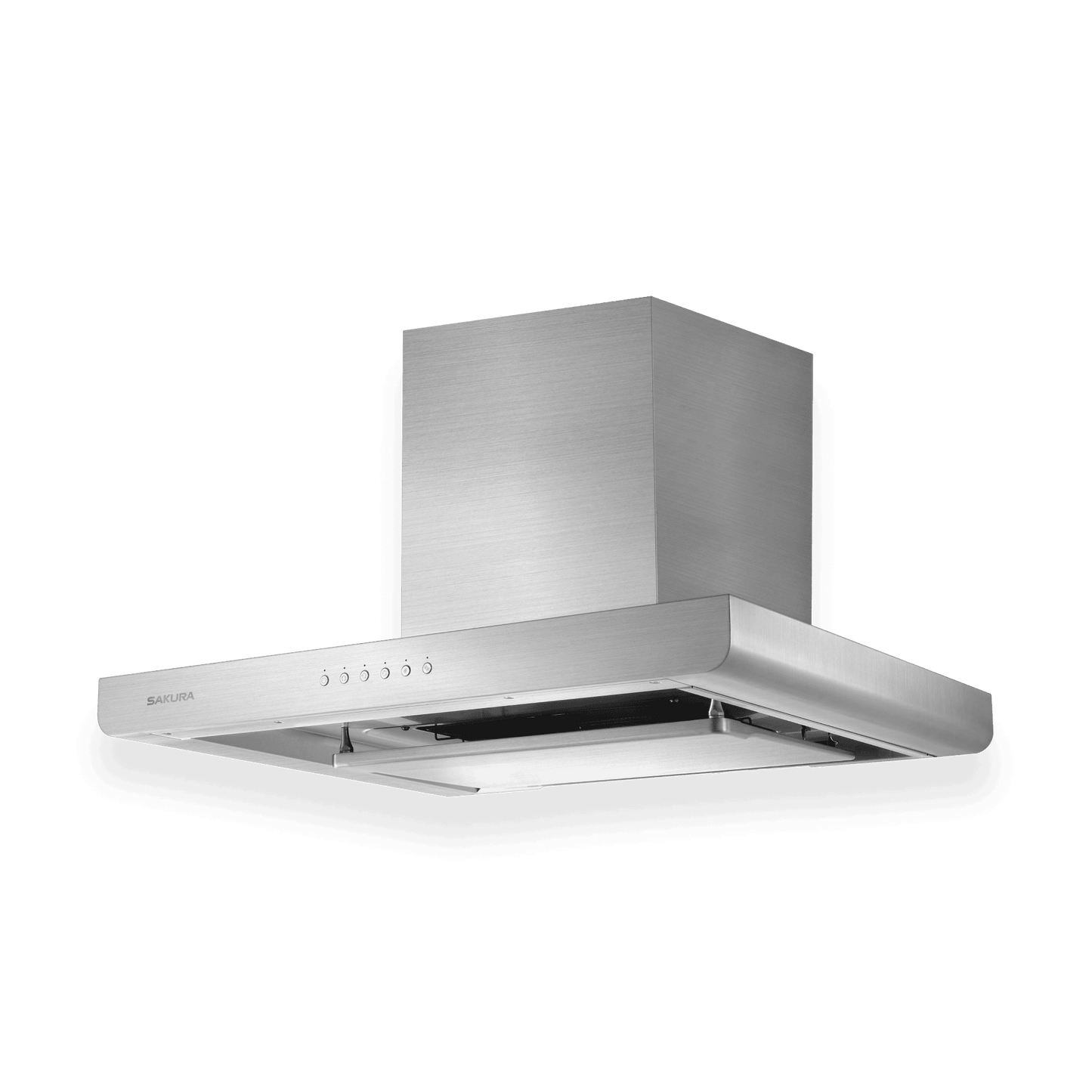

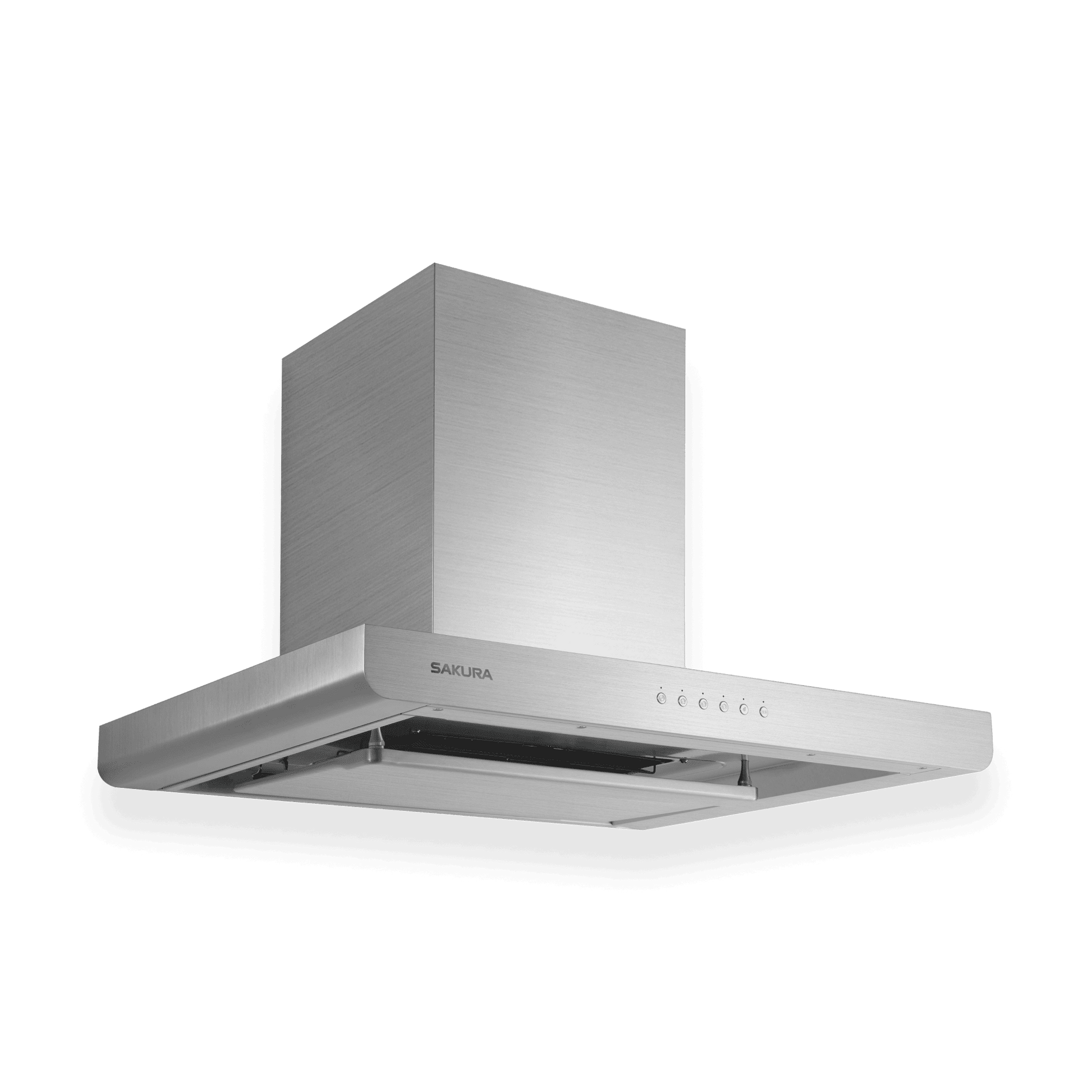

M-6000 Sakura 30" OR 36" Range Hood with Chimney Flue

• Made in Taiwan
• Max 1000 CFM
• Intelligent air fresh mode
• Push Button Switch with 3-Speeds

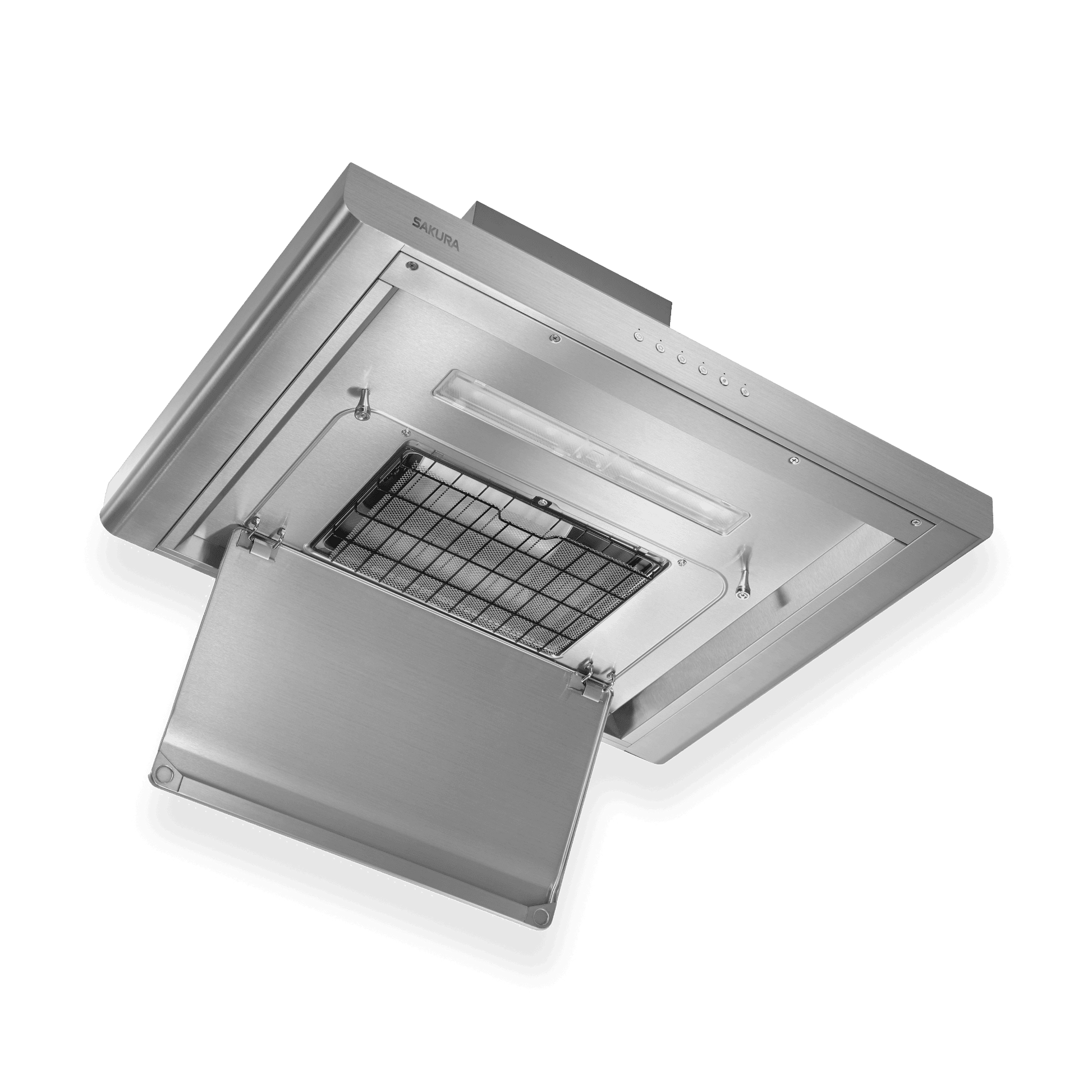

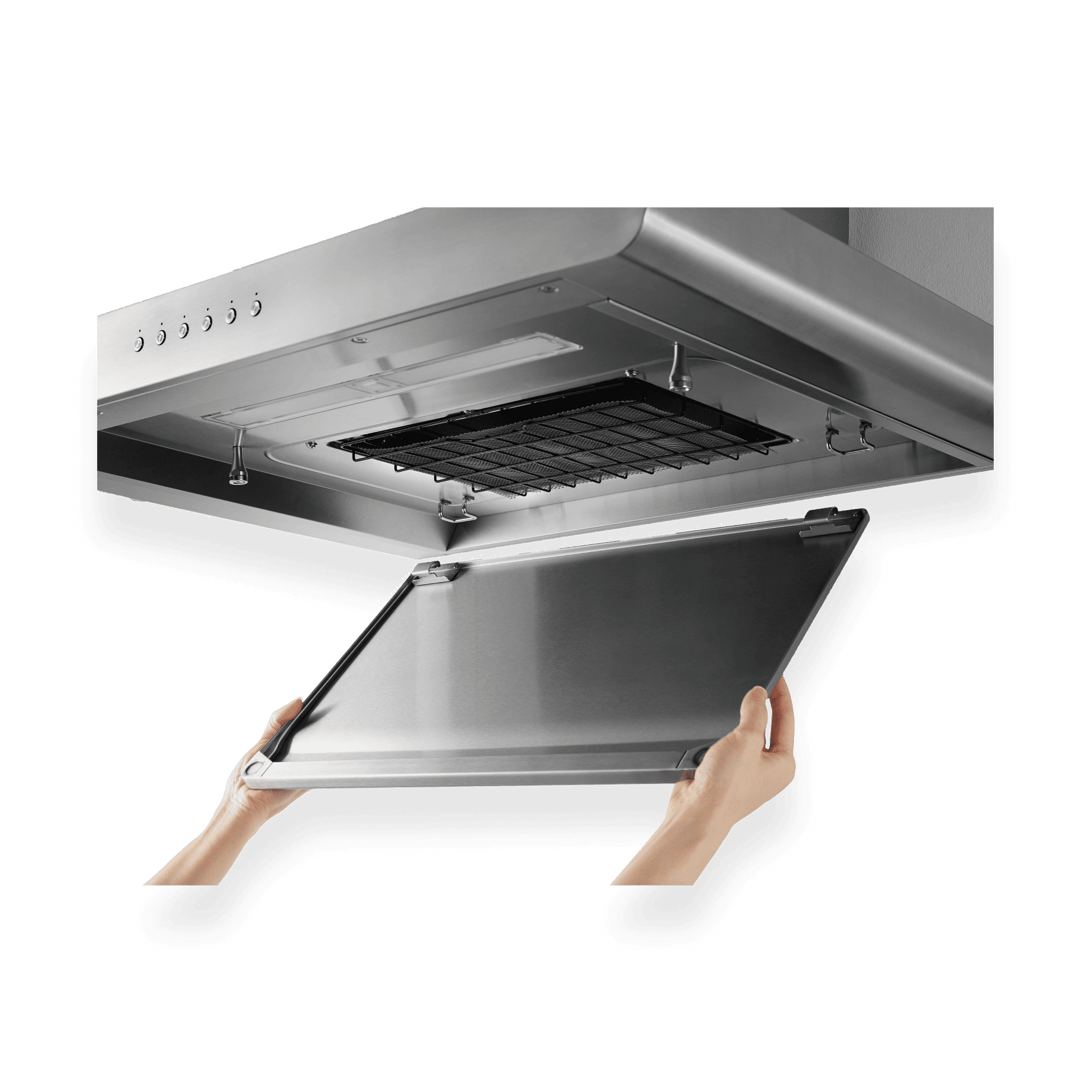

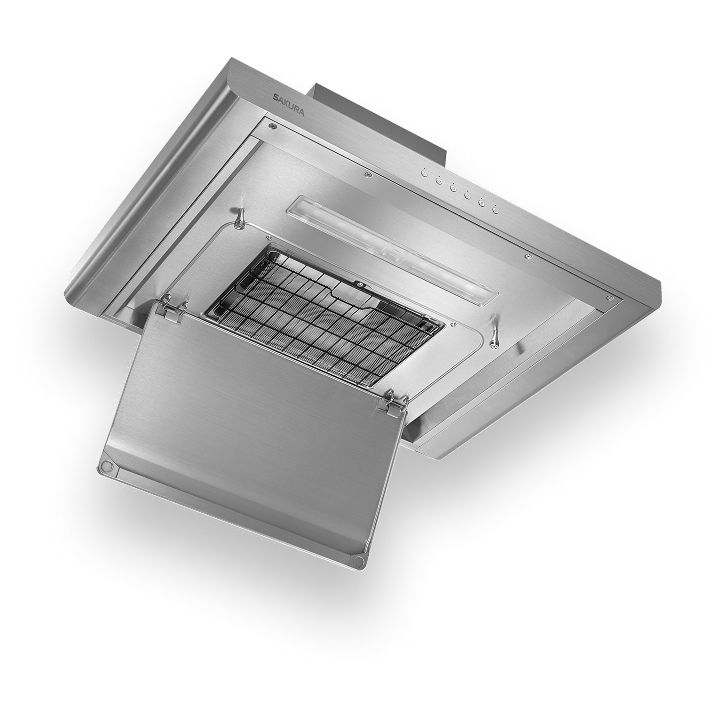

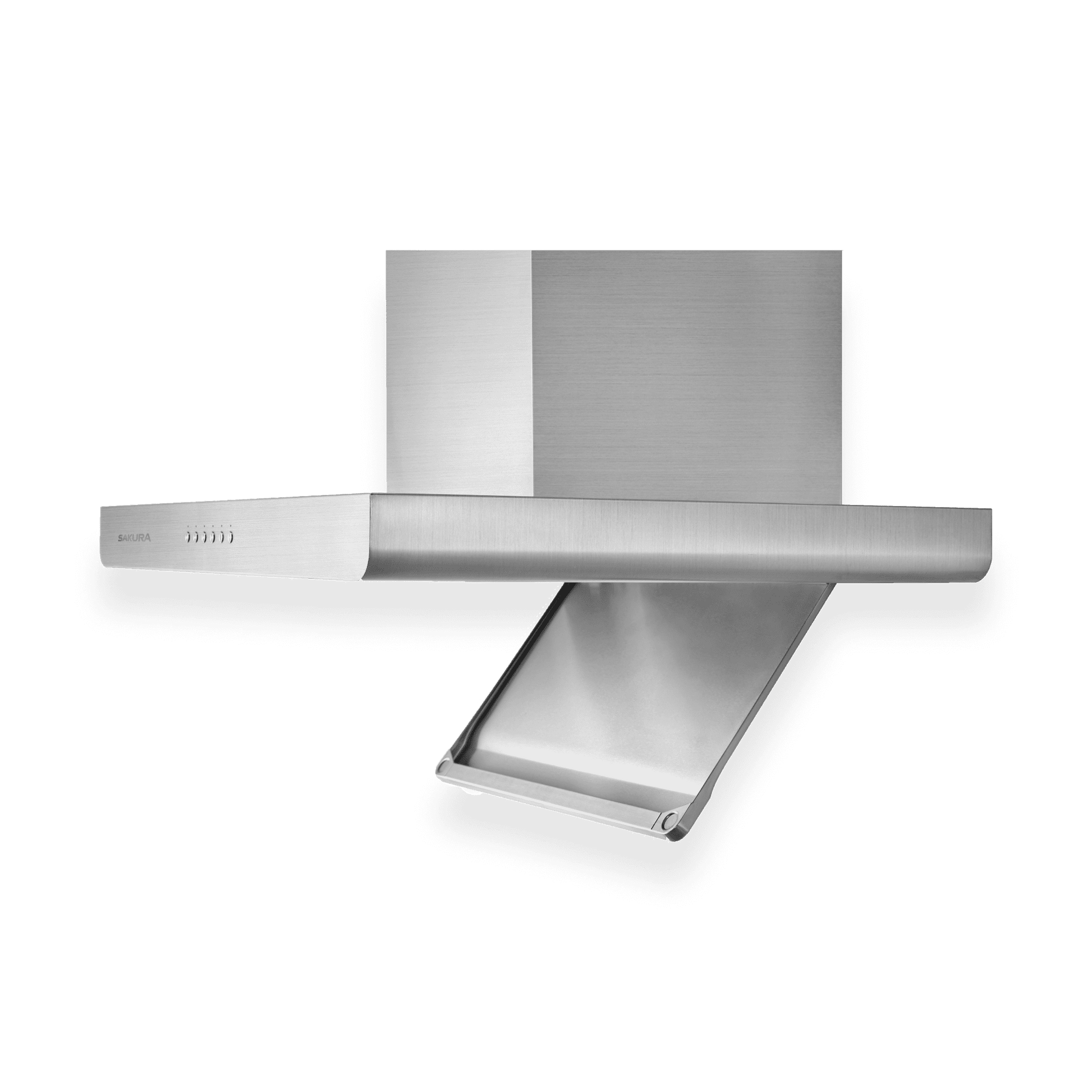

• Magnetic Rectification Plate integrated oil cup function

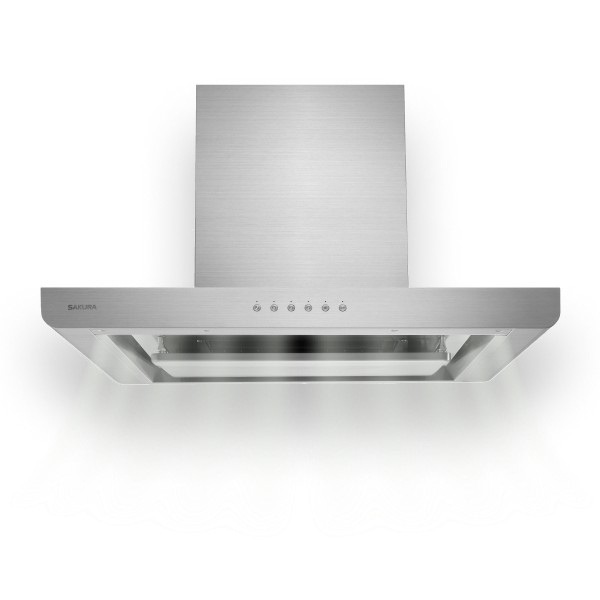

• With 360° large & rapid suction

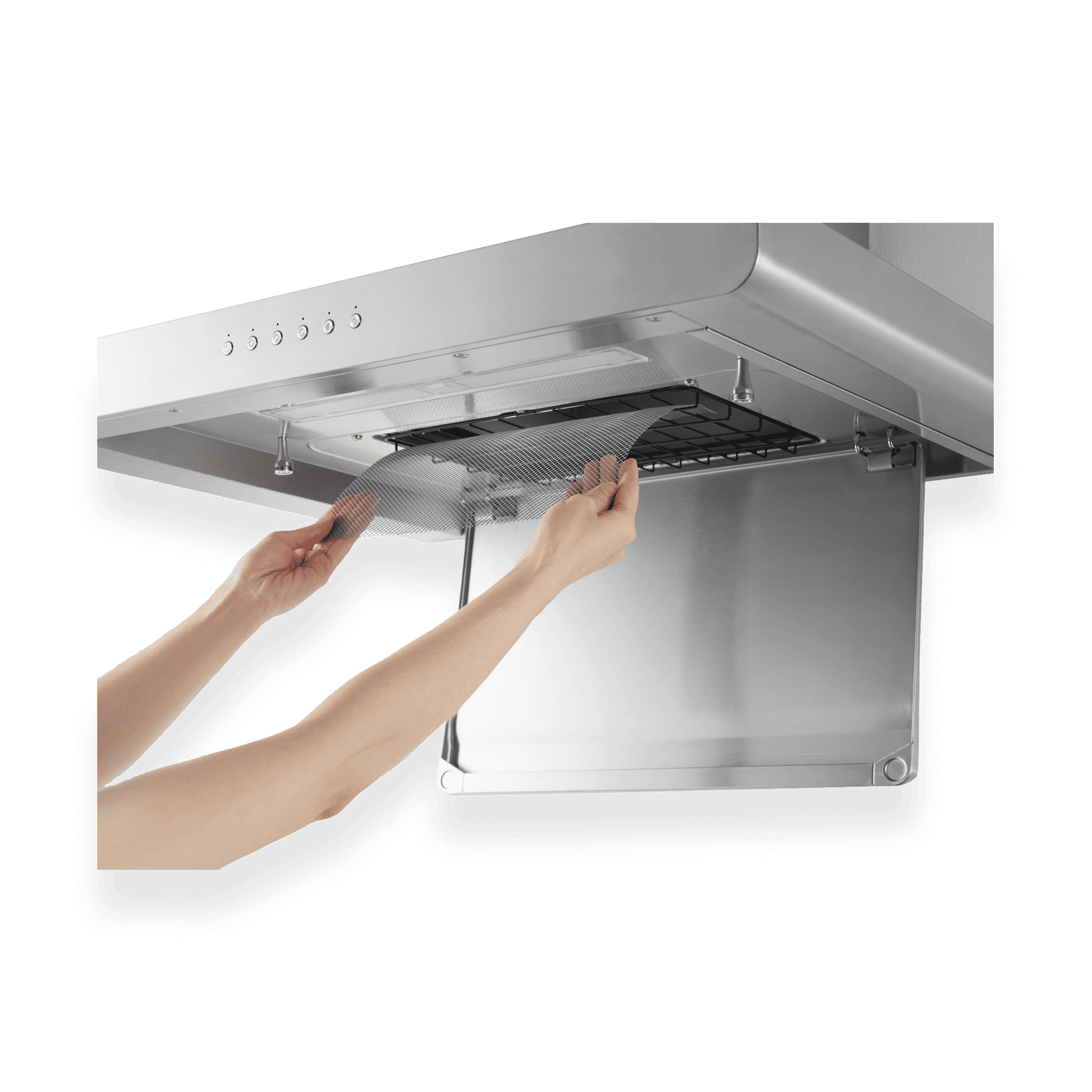

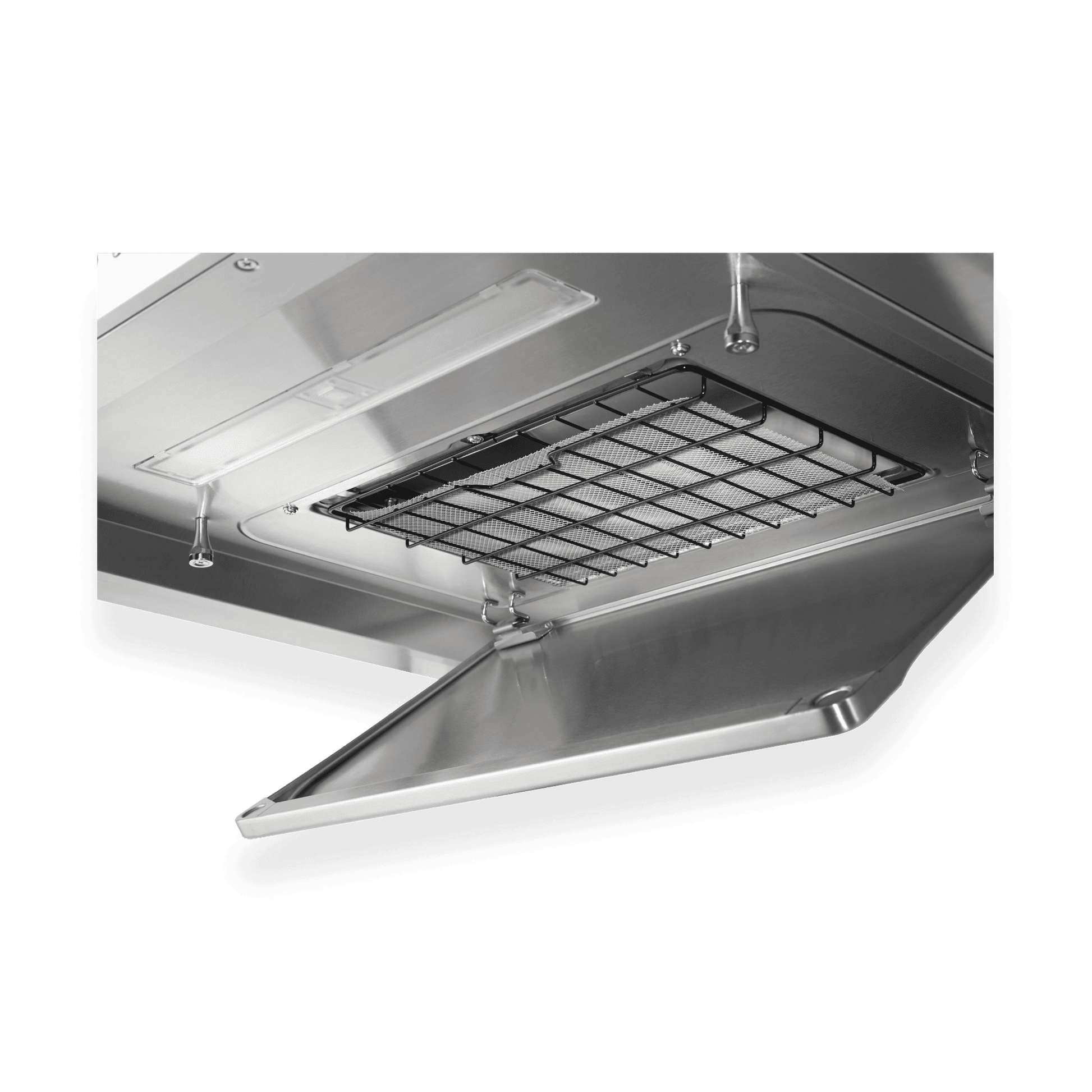

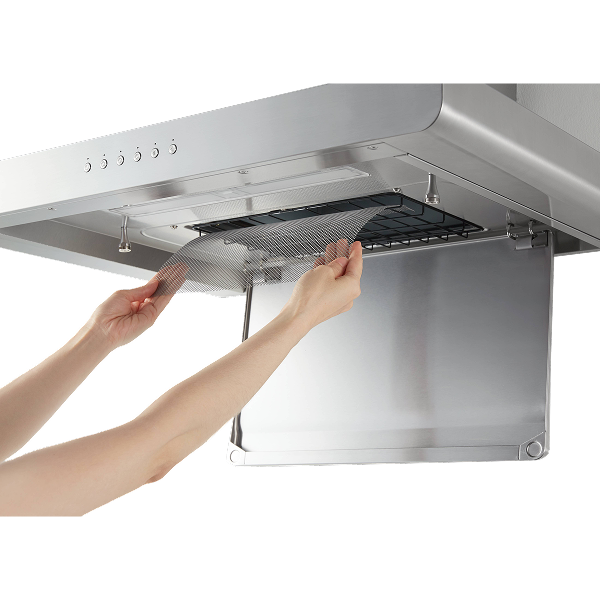

• Disposable Aluminum Oil Mesh filter

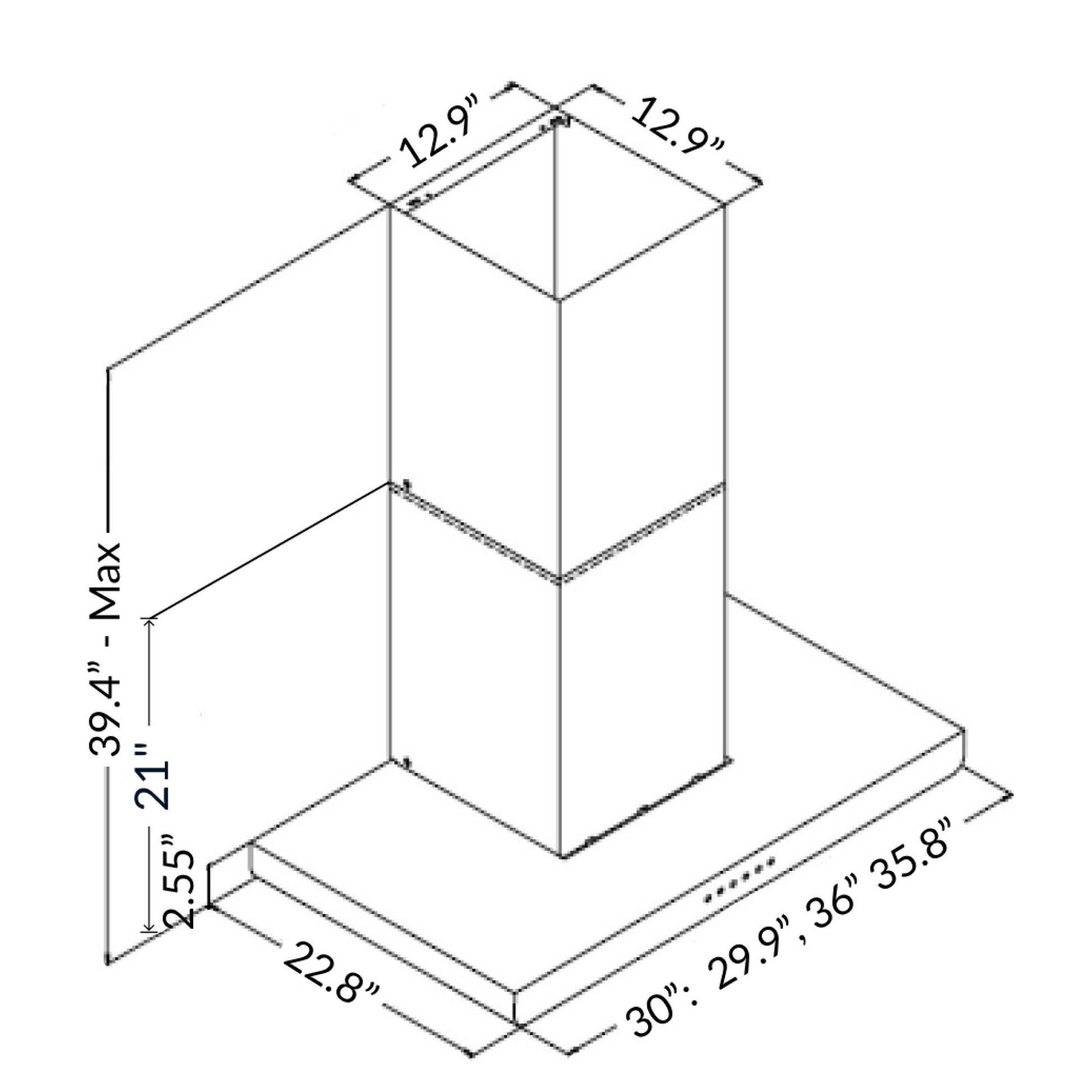

30" Model - 29.9" W x 22.8" D x 2.6" H

36" Model - 35.8" W x 22.8" D x 2.6" H

Adjustable Flue Set: 12.6" W x 11" D x 23.6~46.34" H

Net Weight 20kg

Gross Weight 26kg

Motor: Single AC motor

Filter:  Mesh Filter and Rectification Plate

Duct Size: 6"

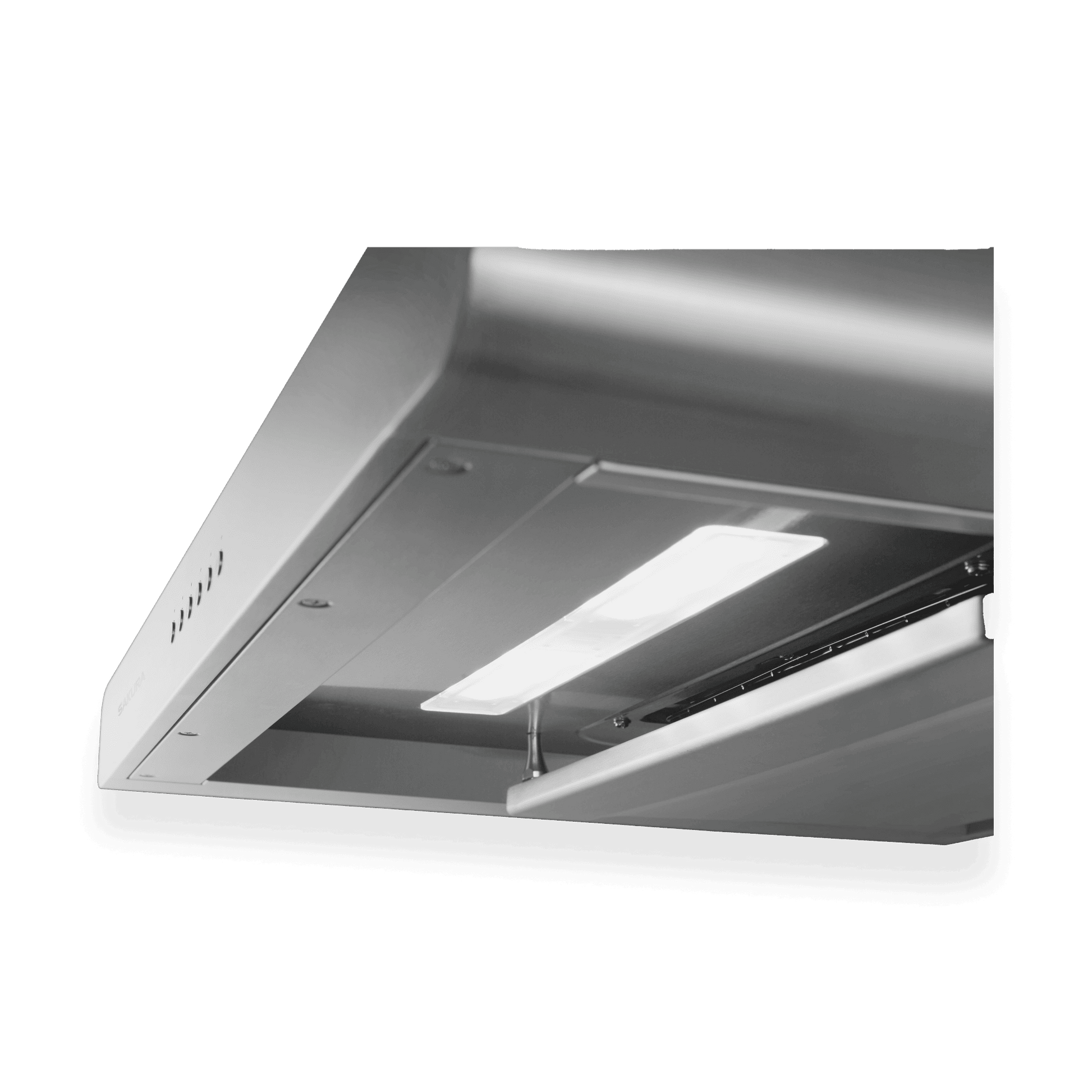

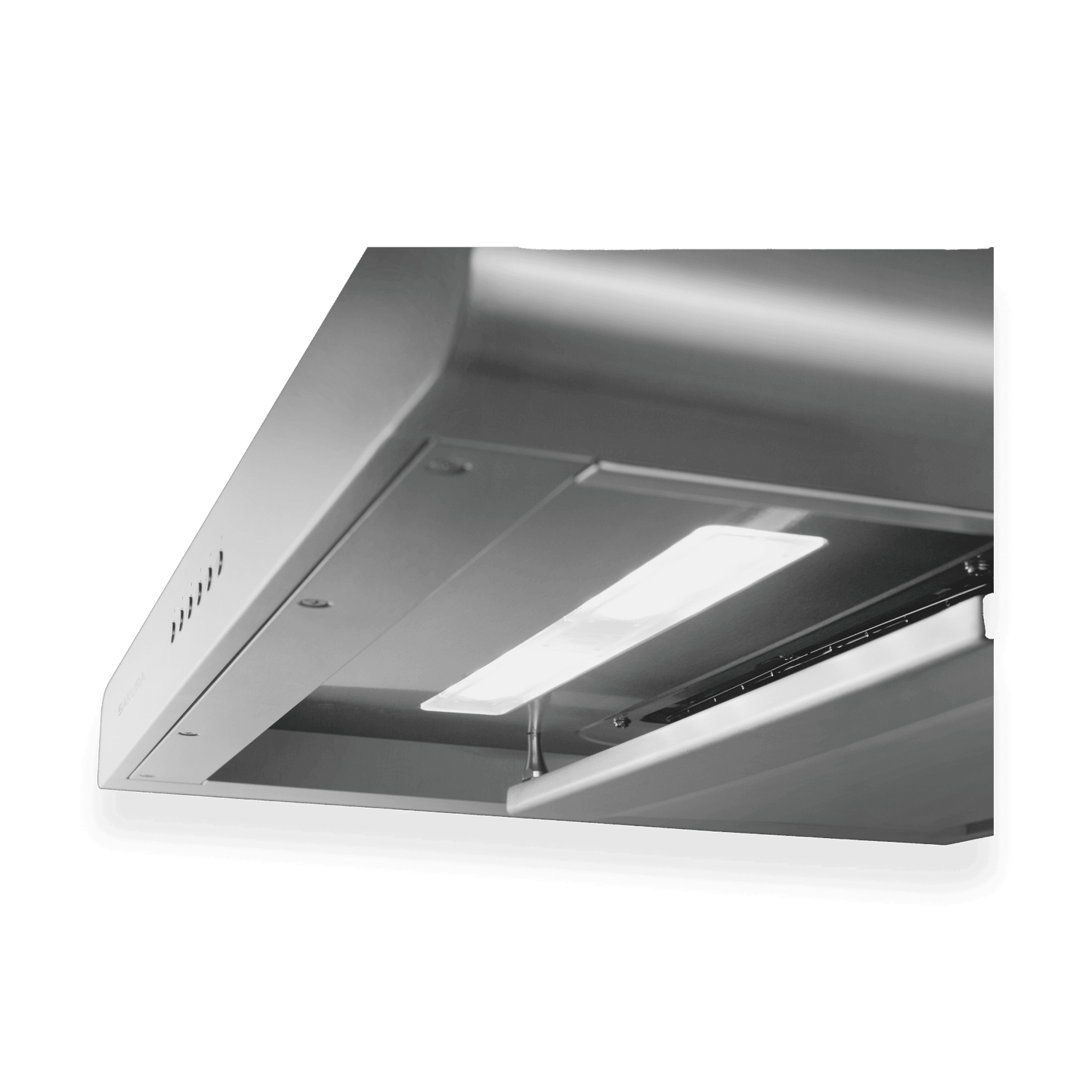

Illumination: LED 2W*2

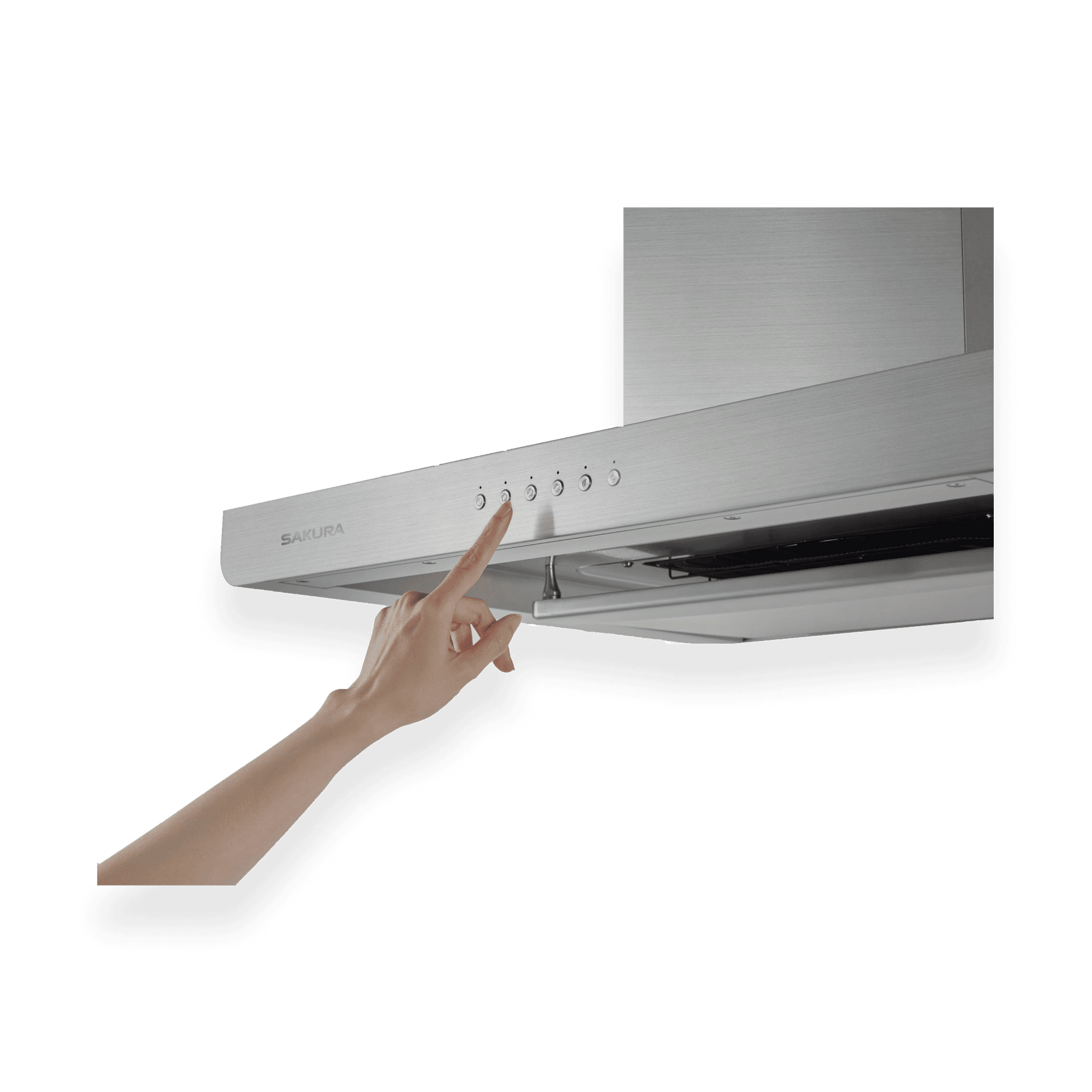

Switch Type: Metal push button

Speed: 3 speeds

Noise level: 2 - 5 Sones

CFM: 250 - 1000

Power Consumption: 310W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 26-28”
Gas stove: 28-30”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.
