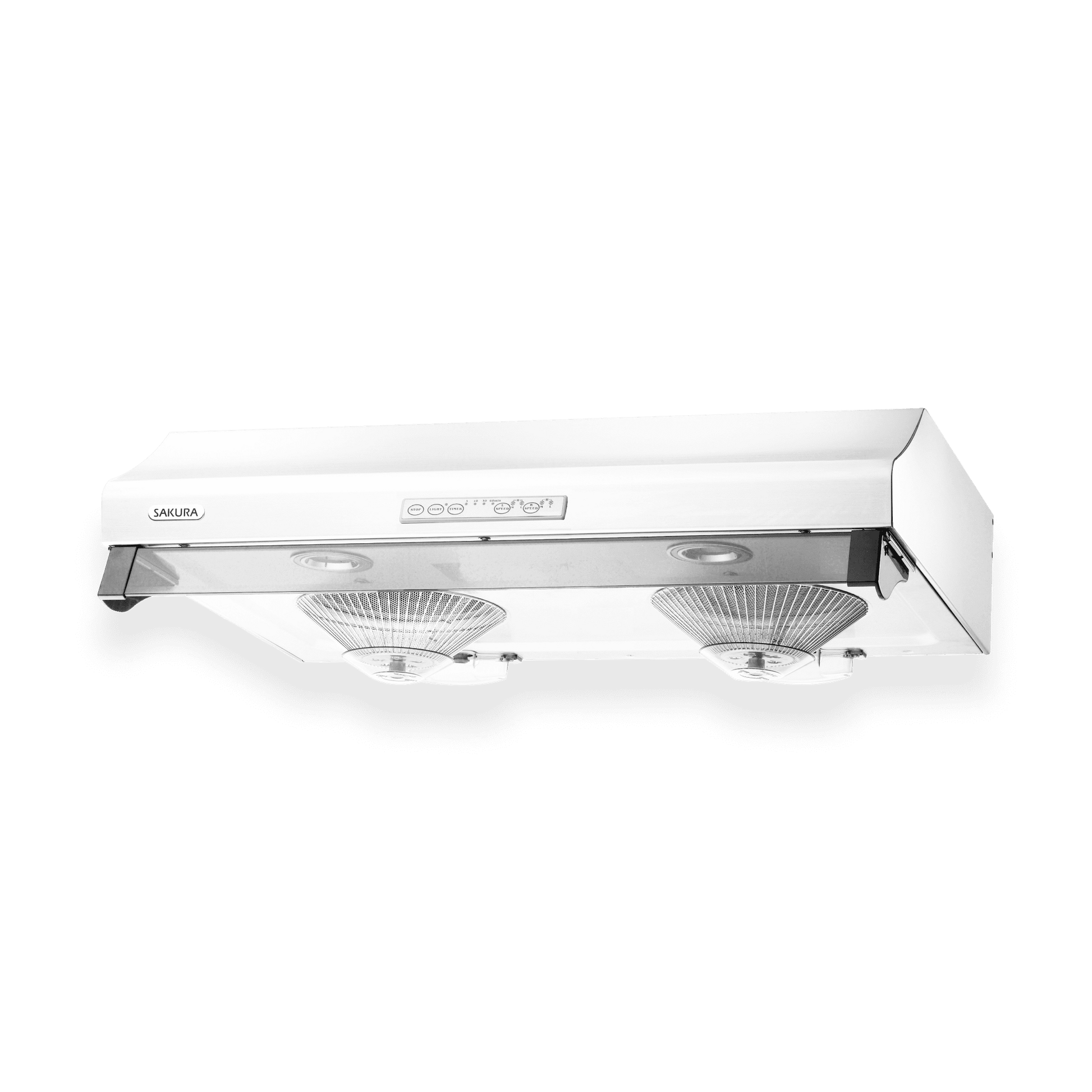

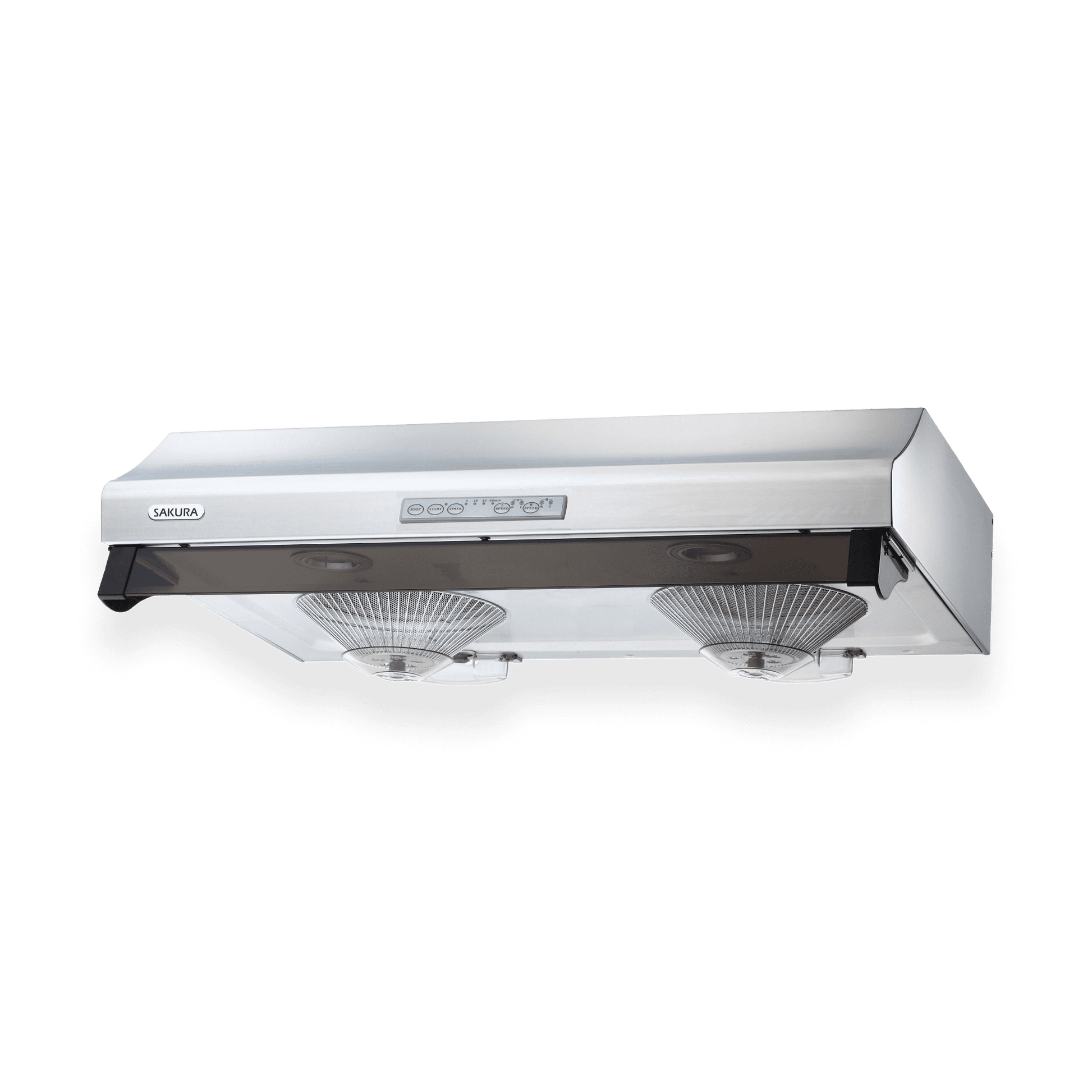

R-8168M Series Sakura 30" Range Hood

• Made in Taiwan
• Max 750CFM
• Sleek and slim design, suitable for modern kitchen
• Two powerful motors that work independently at quiet noise level
• Soft touch switch control with 3 speeds
• Time delay mode for 3, 10, 30, 60 minutes
• Patented Sakura trapping aluminum filters are easy to clean and cheap to replace
• Twin centrifugal Teflon-coated non-stick turbo fans
• Patented dishwasher safe removable front and rear oil collectors
• Front smoke cover prevent smoke and steam from escaping
• Dual LED lighting

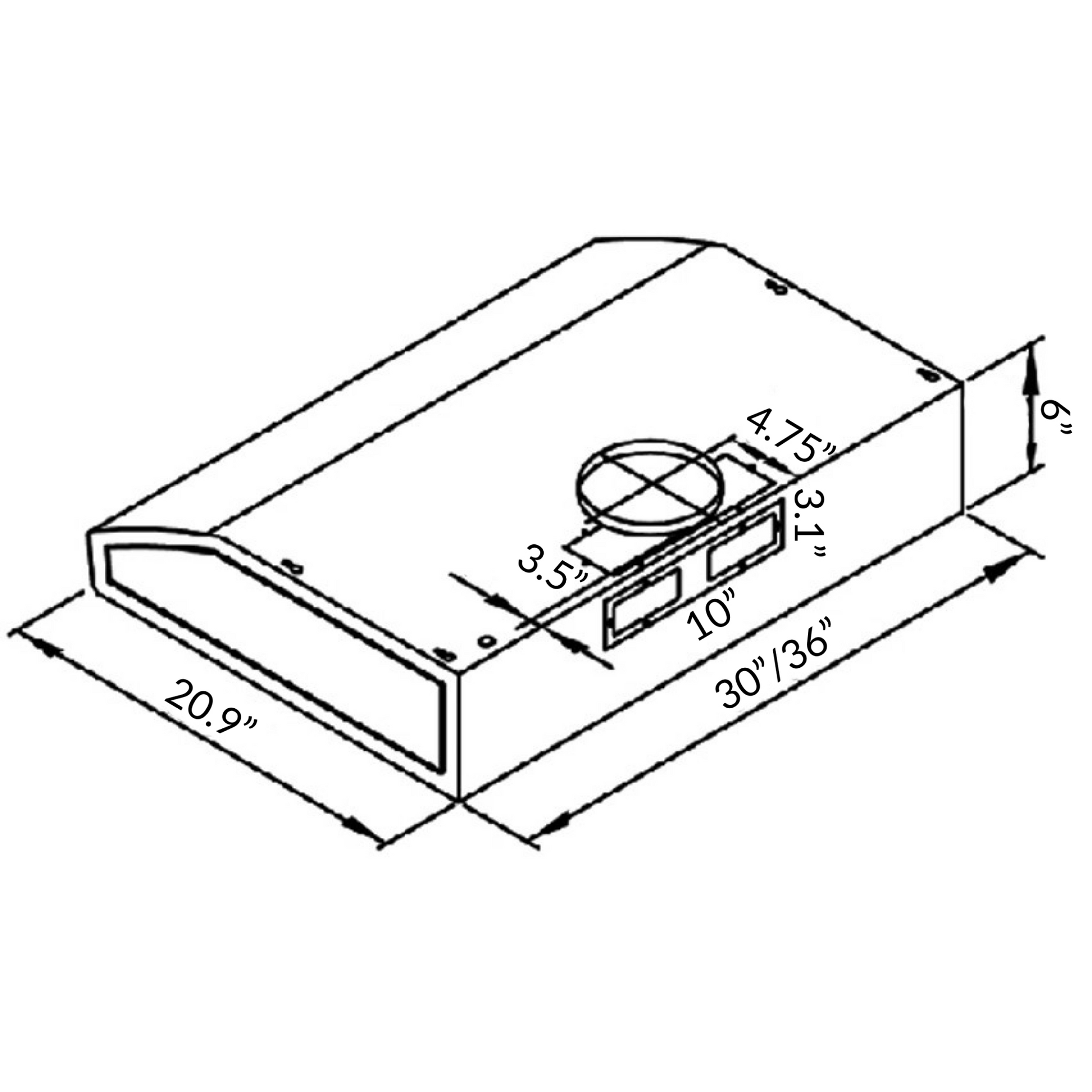

• 3 way ducting: top 6" round opening, top 3 1/8" x 10" rectangular opening, back 3 1/8" x 10' rectangular opening

30" Model - 30" W x 21" D x 6" H

Net Weight 13.6kg

Gross Weight 14.5kg

Motor: Twin AC Motors

Filter: Aluminum Mesh Filter

Duct Size: 6" / Rear 3.1" x 10"

Illumination: Dual LED

Switch Type: Soft Touch Switch

Speed: 3 speeds

Noise level: 1.5 - 4 Sones

CFM: 250 - 750

Power Consumption: 240W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 30-32”
Gas stove: 33-35”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.

R-8168M User manual
