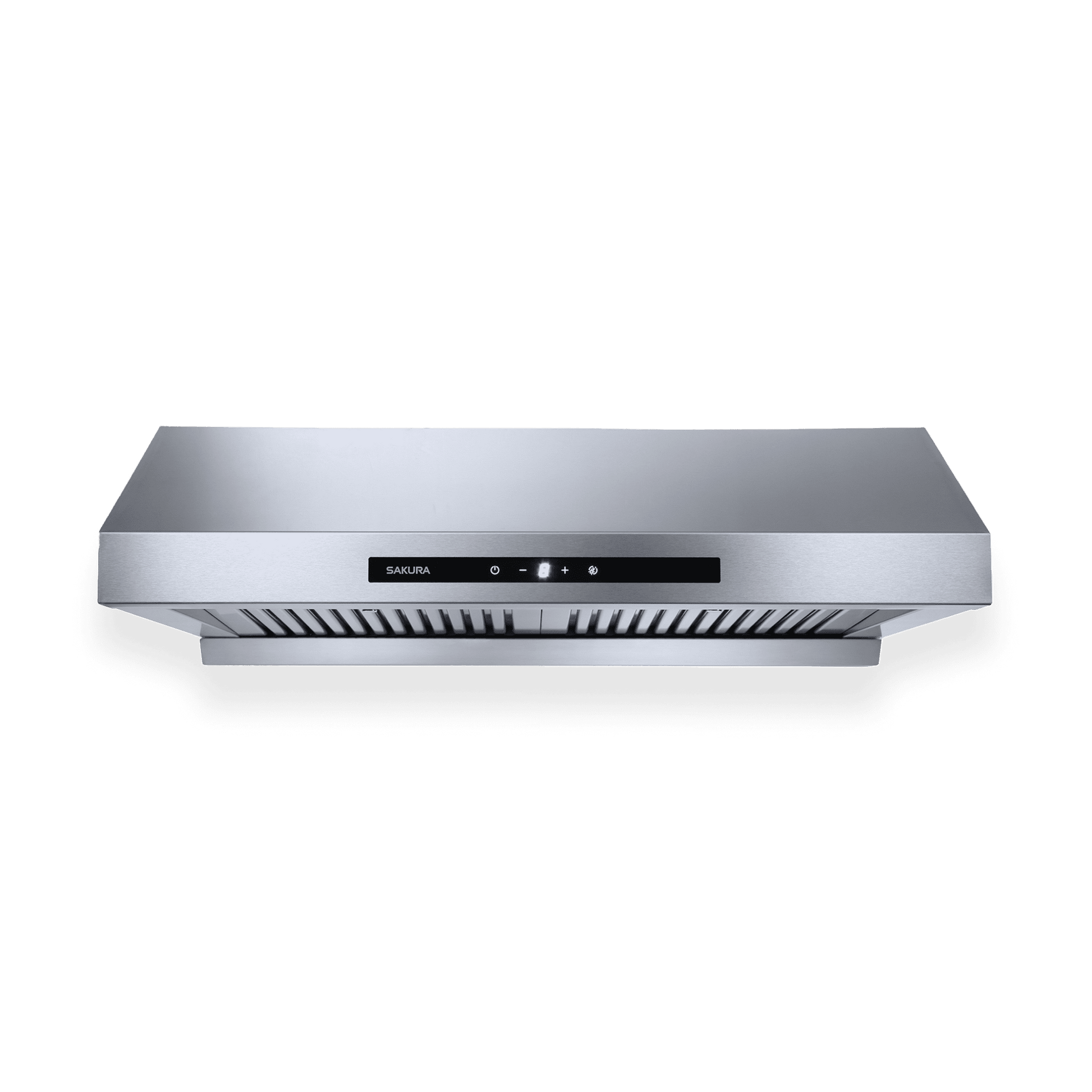

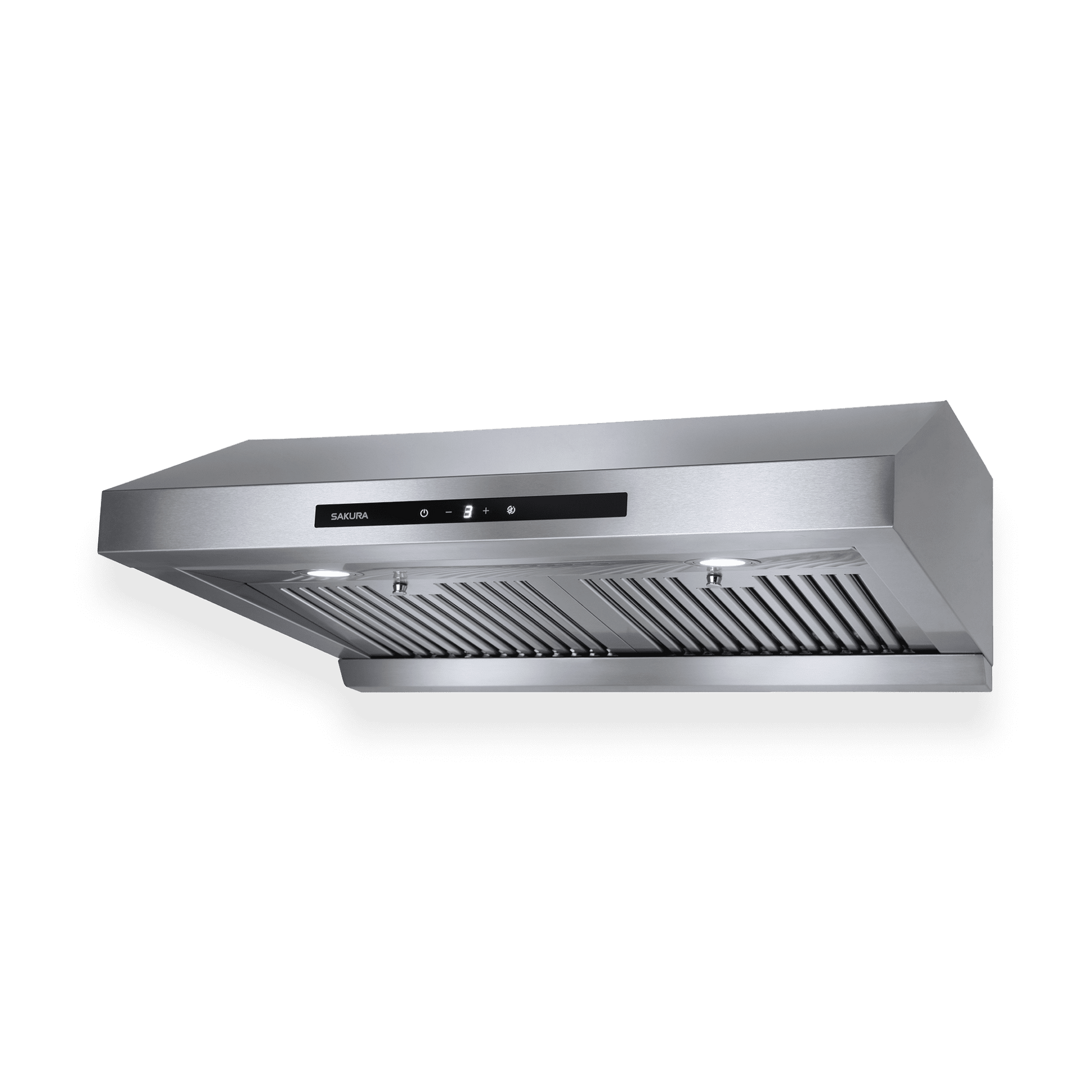

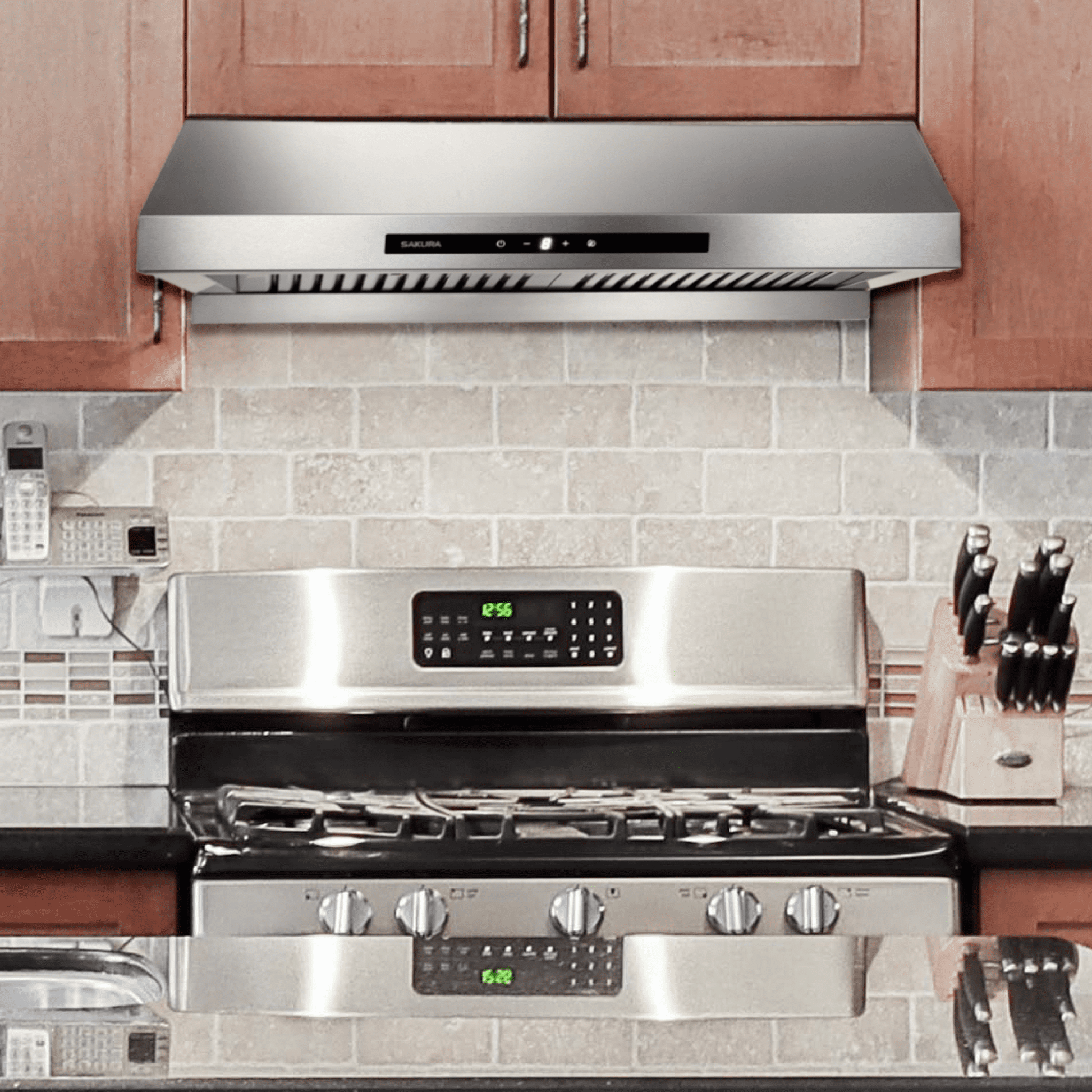

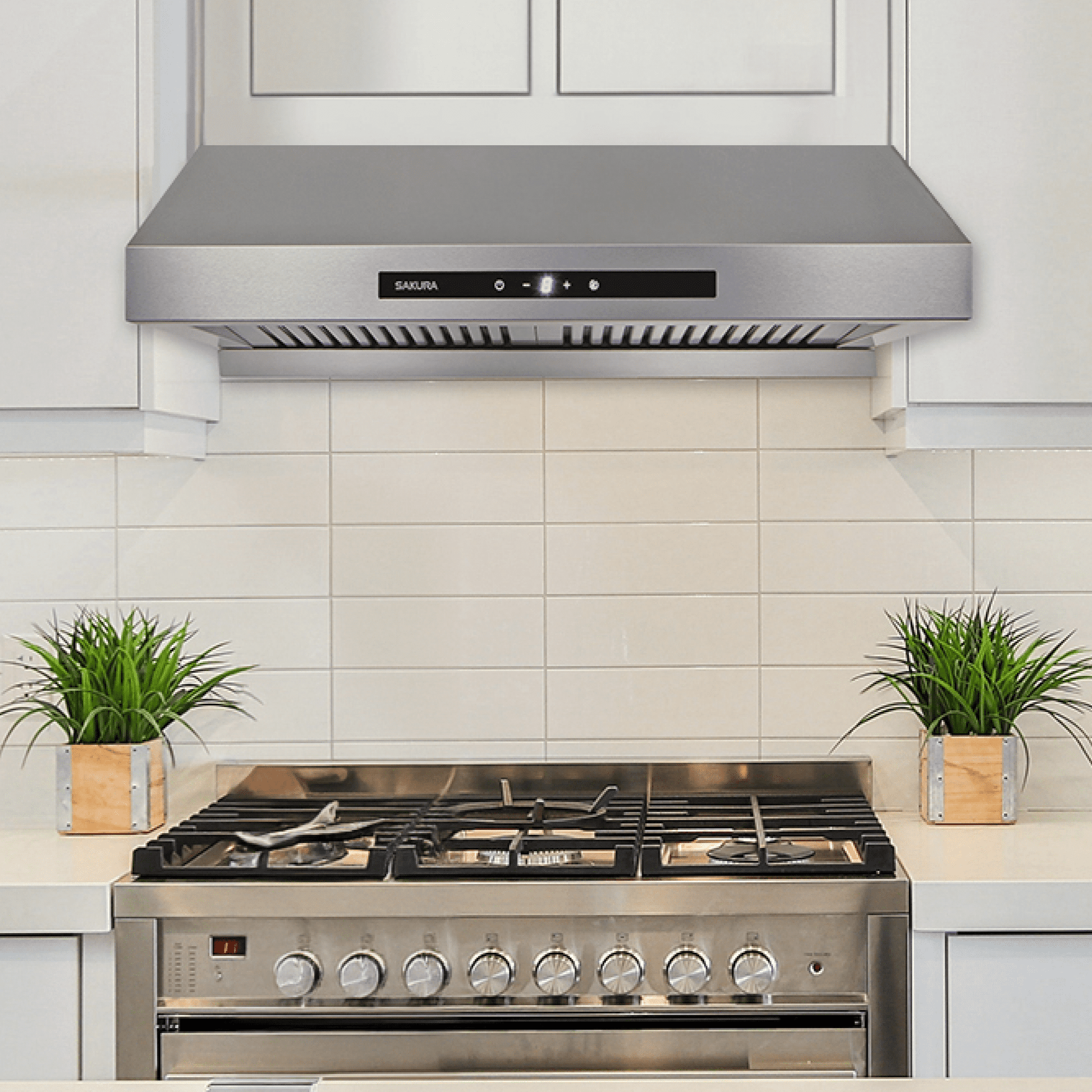

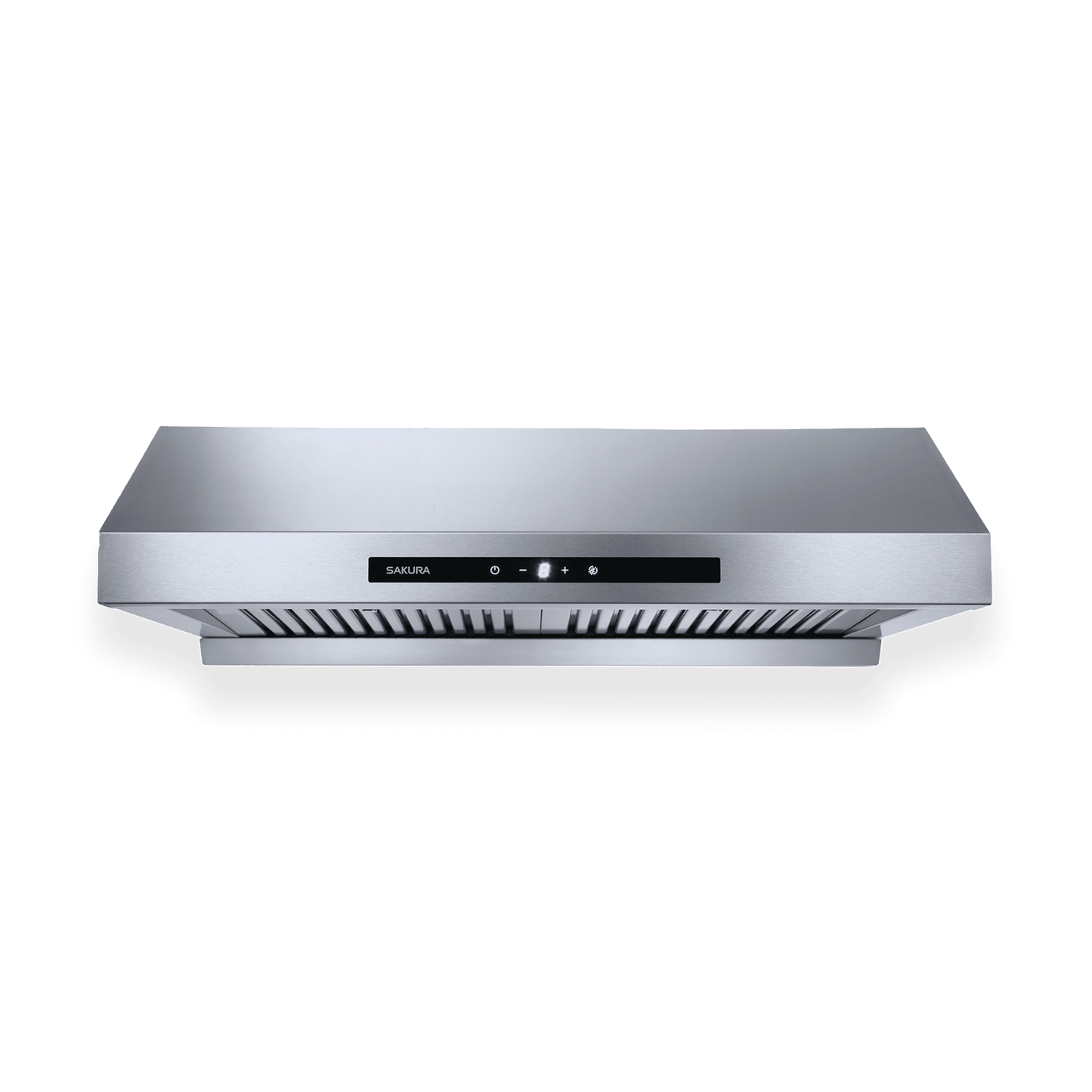

R-3311 Sakura 30" Range Hood

• Max 800CFM

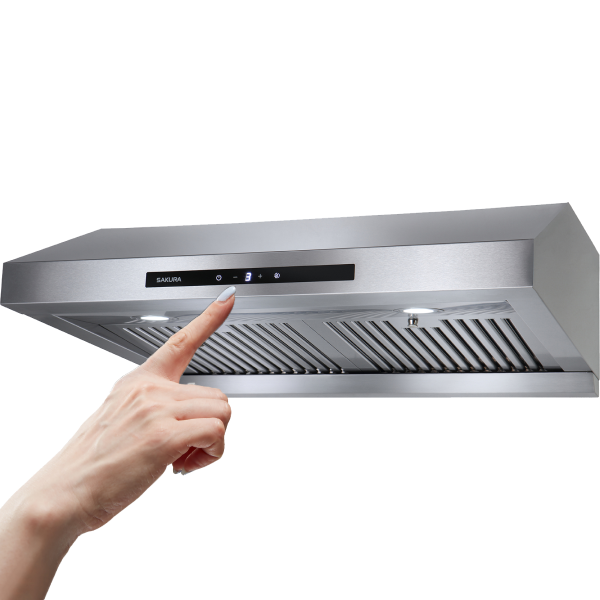

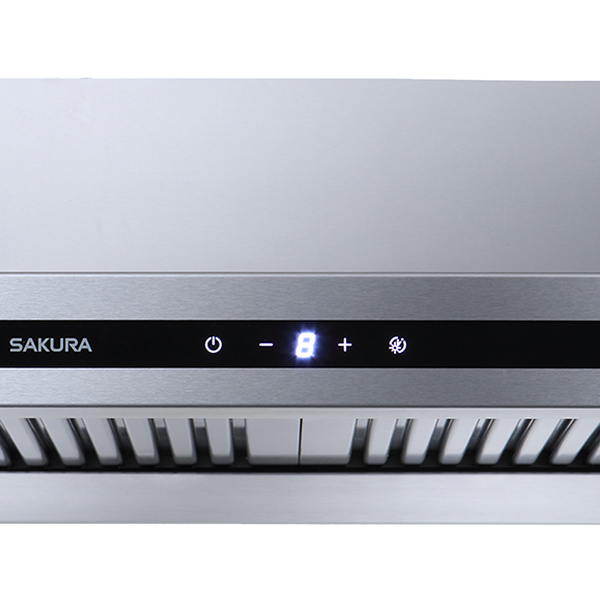

• Sensor touch panel with 3 speeds control and LED display

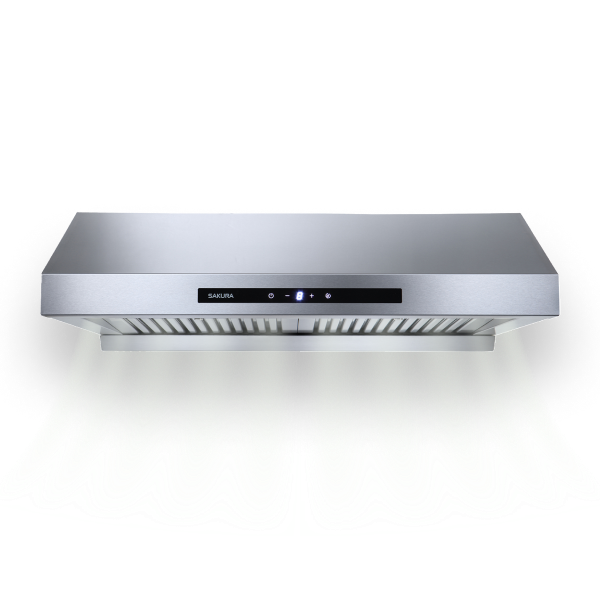

• AC Twin motors with powerful suction

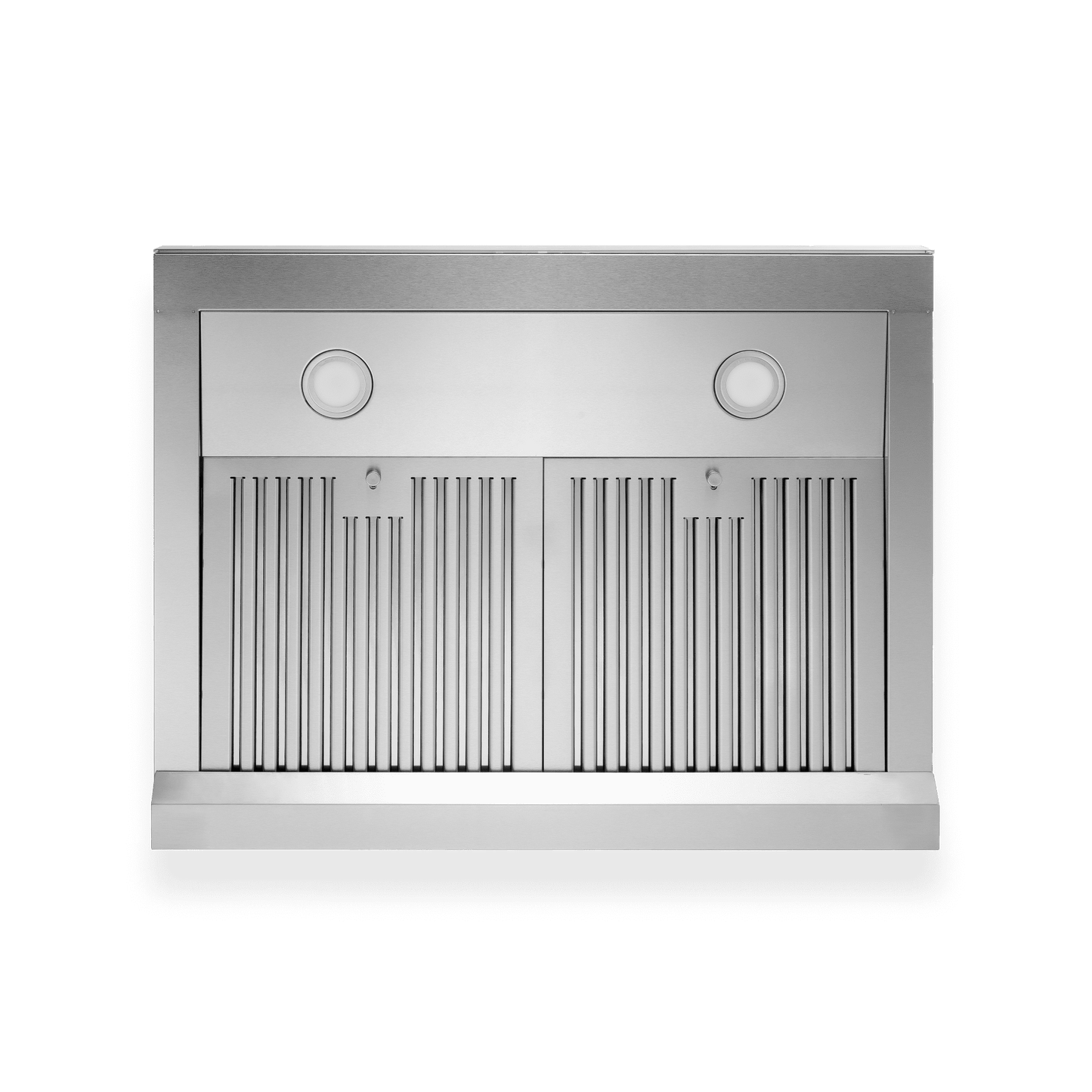

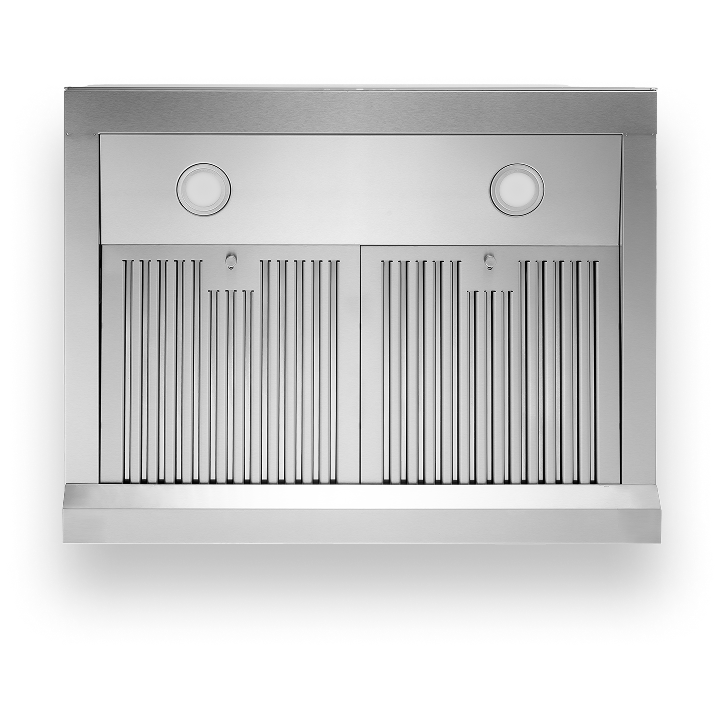

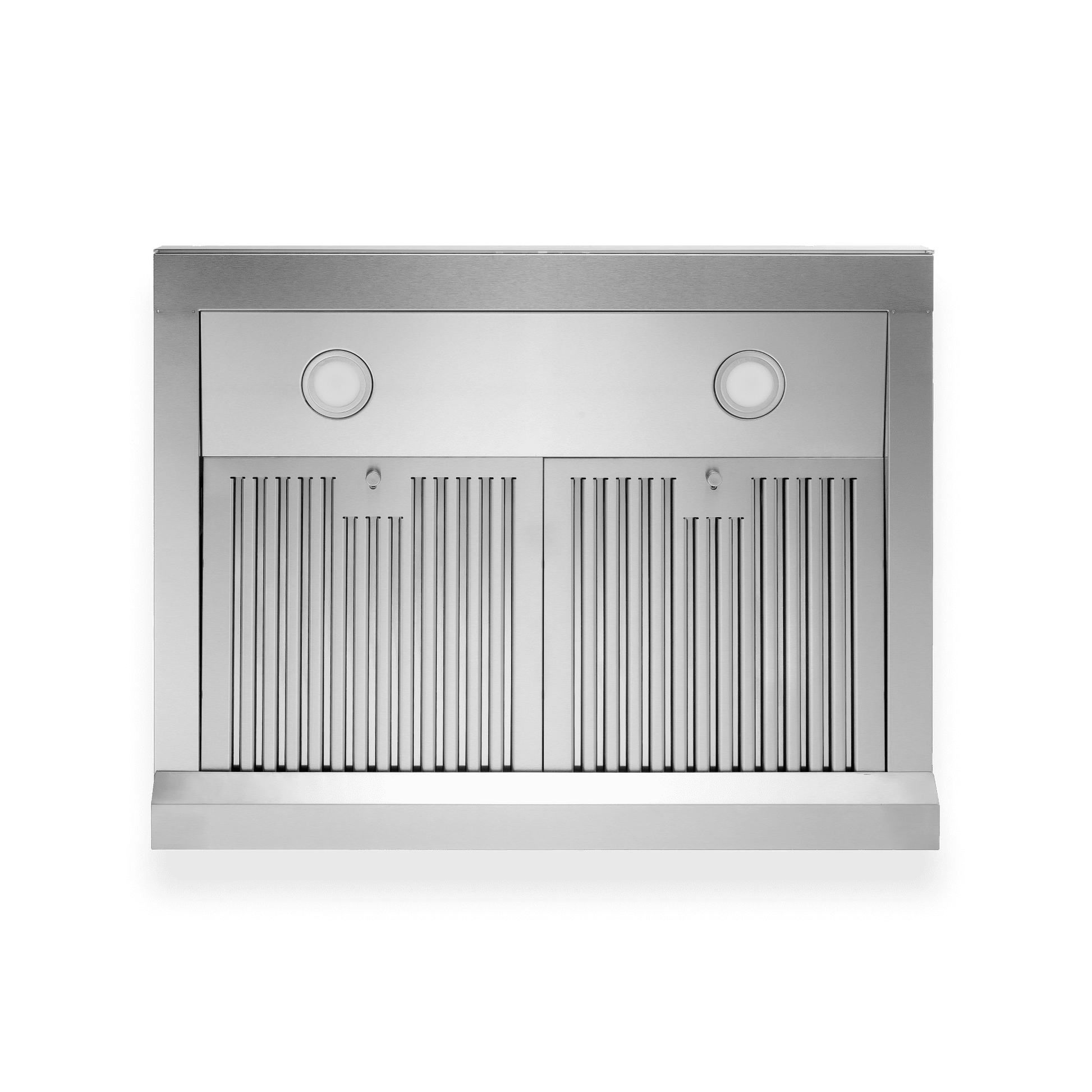

• Baffle filter system, all stainless steel dishwasher safe and easy clean
• Seamless design, the contemporary style of modern kitchen.
• 5 minutes timer function allows you walk away after cooking

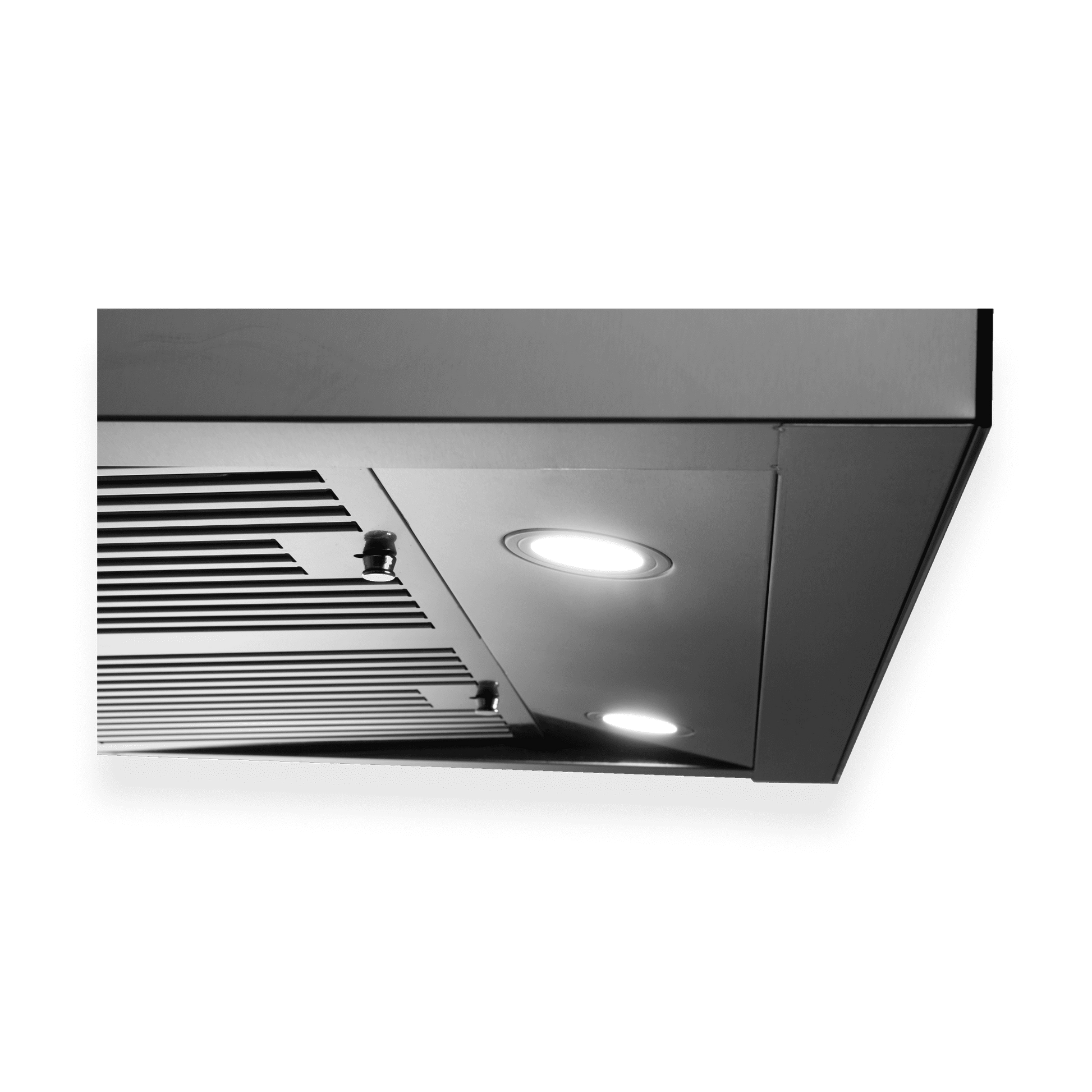

• Dual LED light both bright and save energy

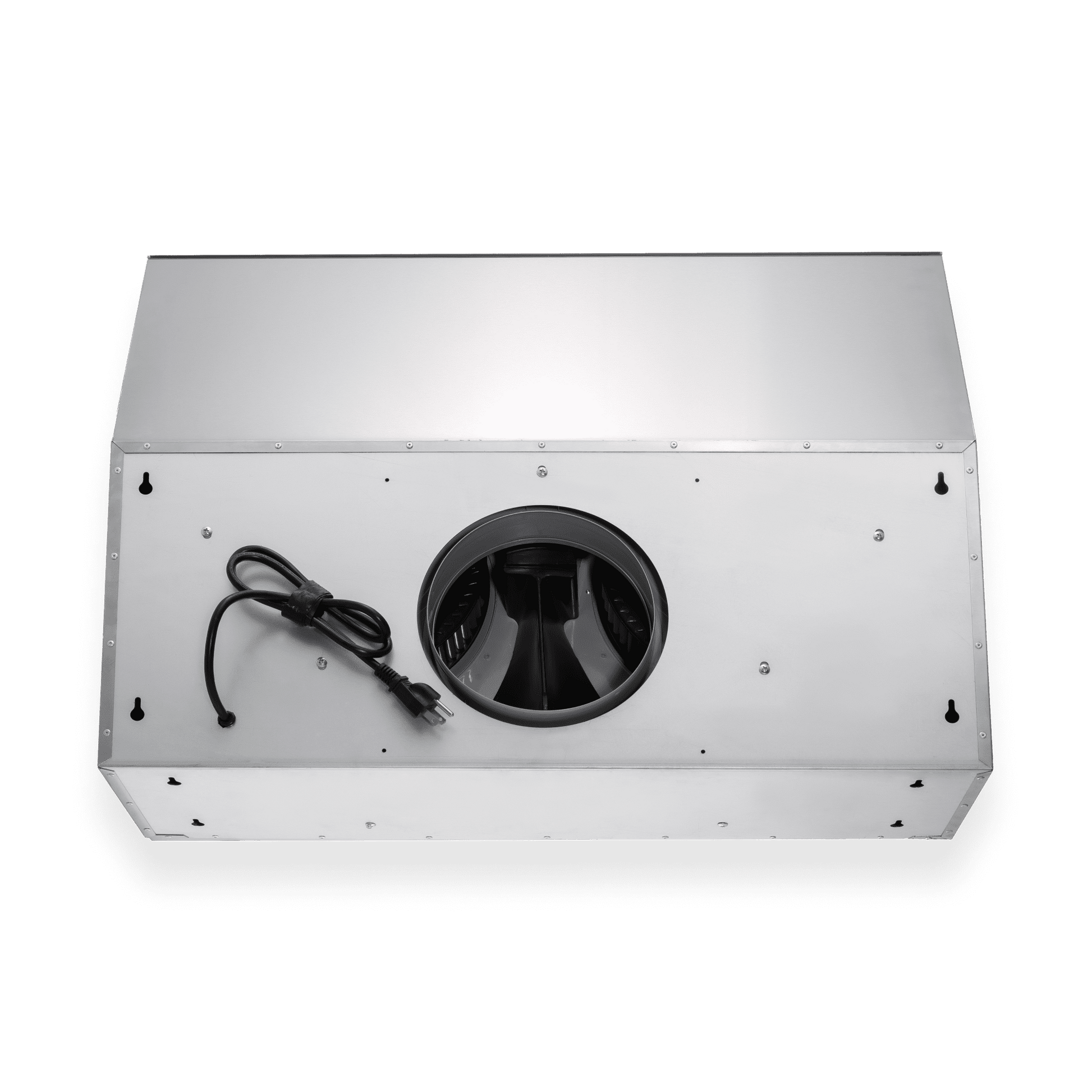

• 3 prong plug in cable

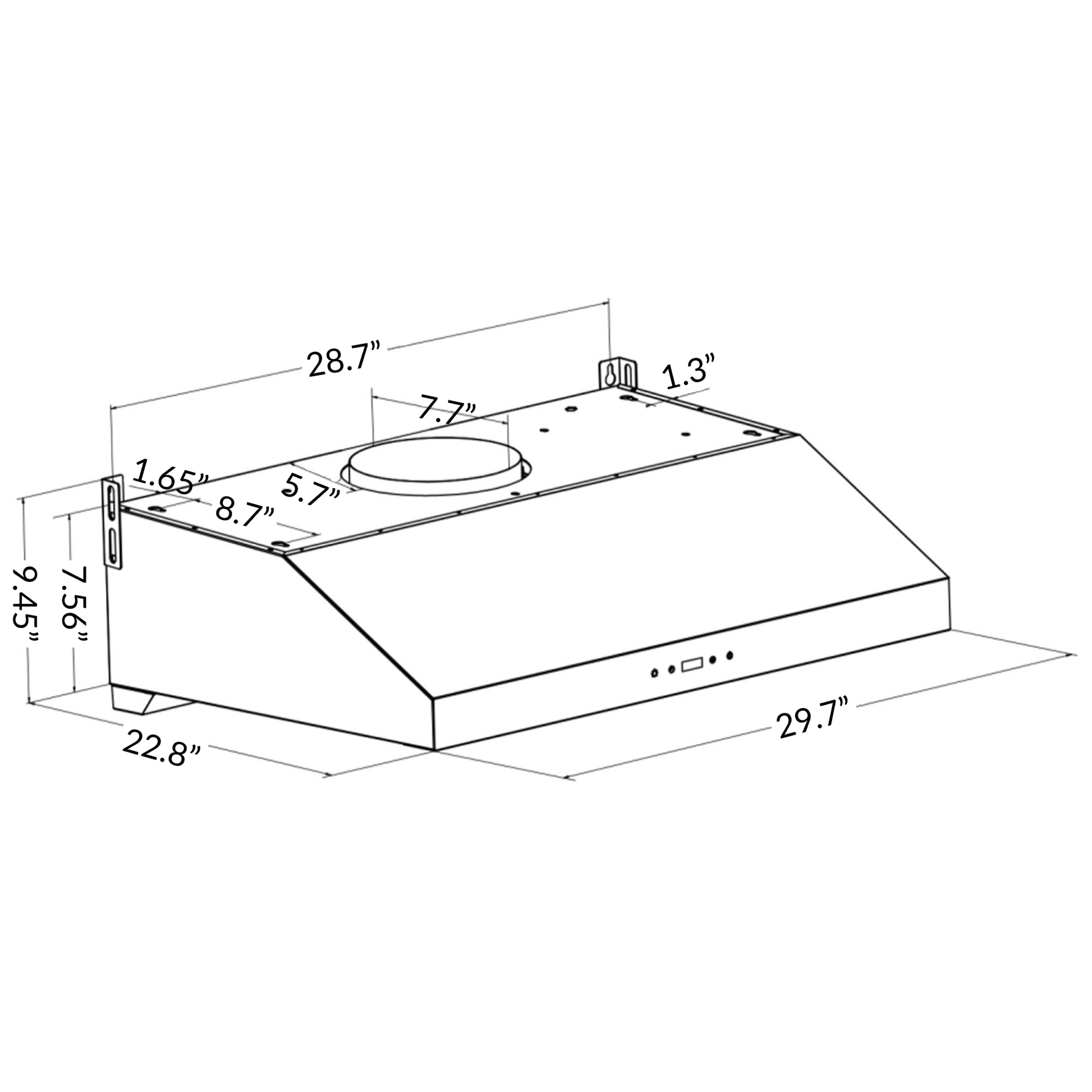

30" Model - 29.7"W x 22.8"D x 7.6"H

Net Weight 22kg

Gross Weight 24kg

Motor: Twin AC Motors

Filter: Stainless Baffle Filter

Duct Size: 6” - 8”

Illumination: LED 1.5W*2

Switch Type: Sensor touch screen

Speed: 3 speeds

Noise level: 2 - 5 Sones

CFM: 300 - 800

Power Consumption: 280W

Voltage: 120V~60Hz

Safety Certificate: ETL

Origin: Designed in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 32-34”
Gas stove: 34-36”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.

R-3311 User manual (English)
