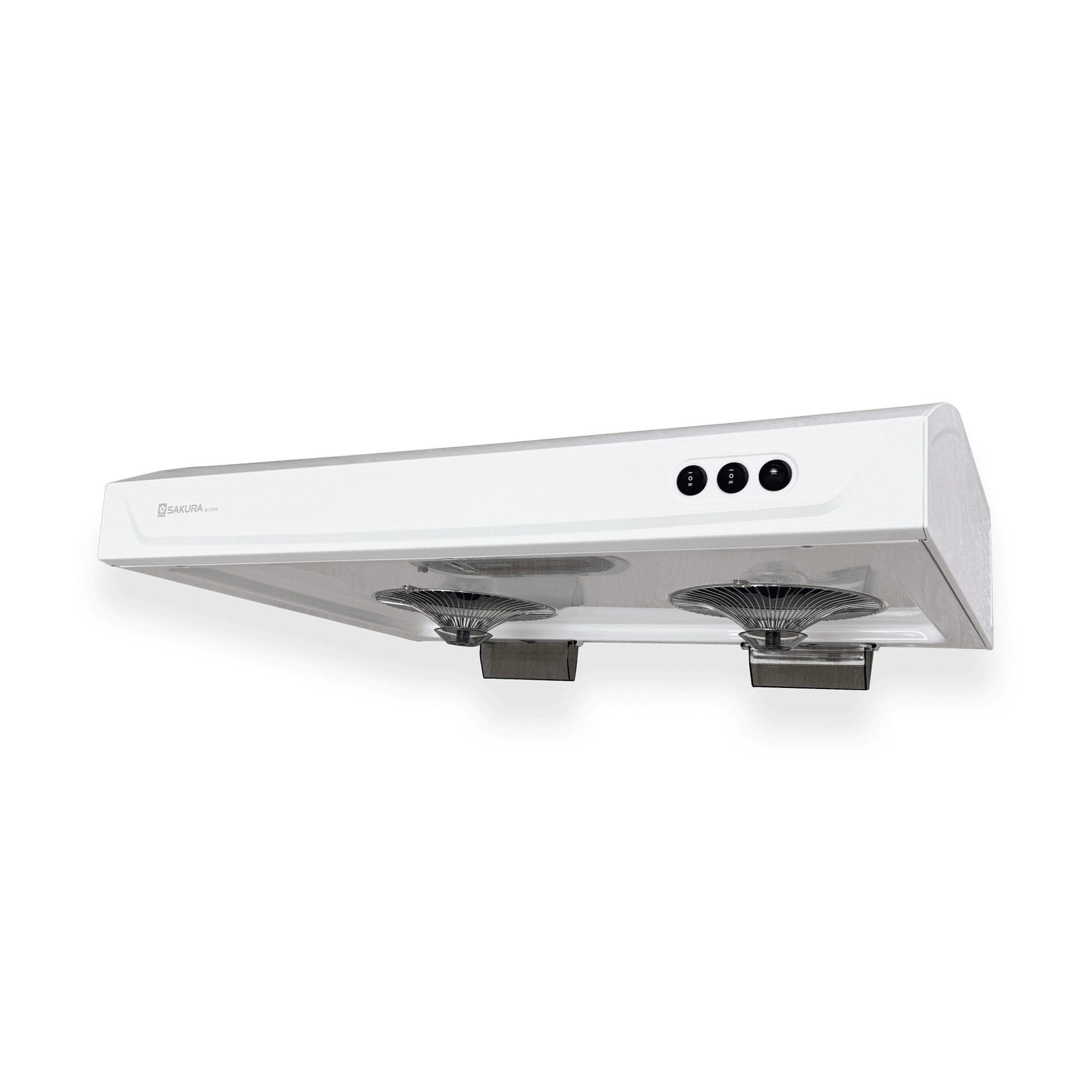

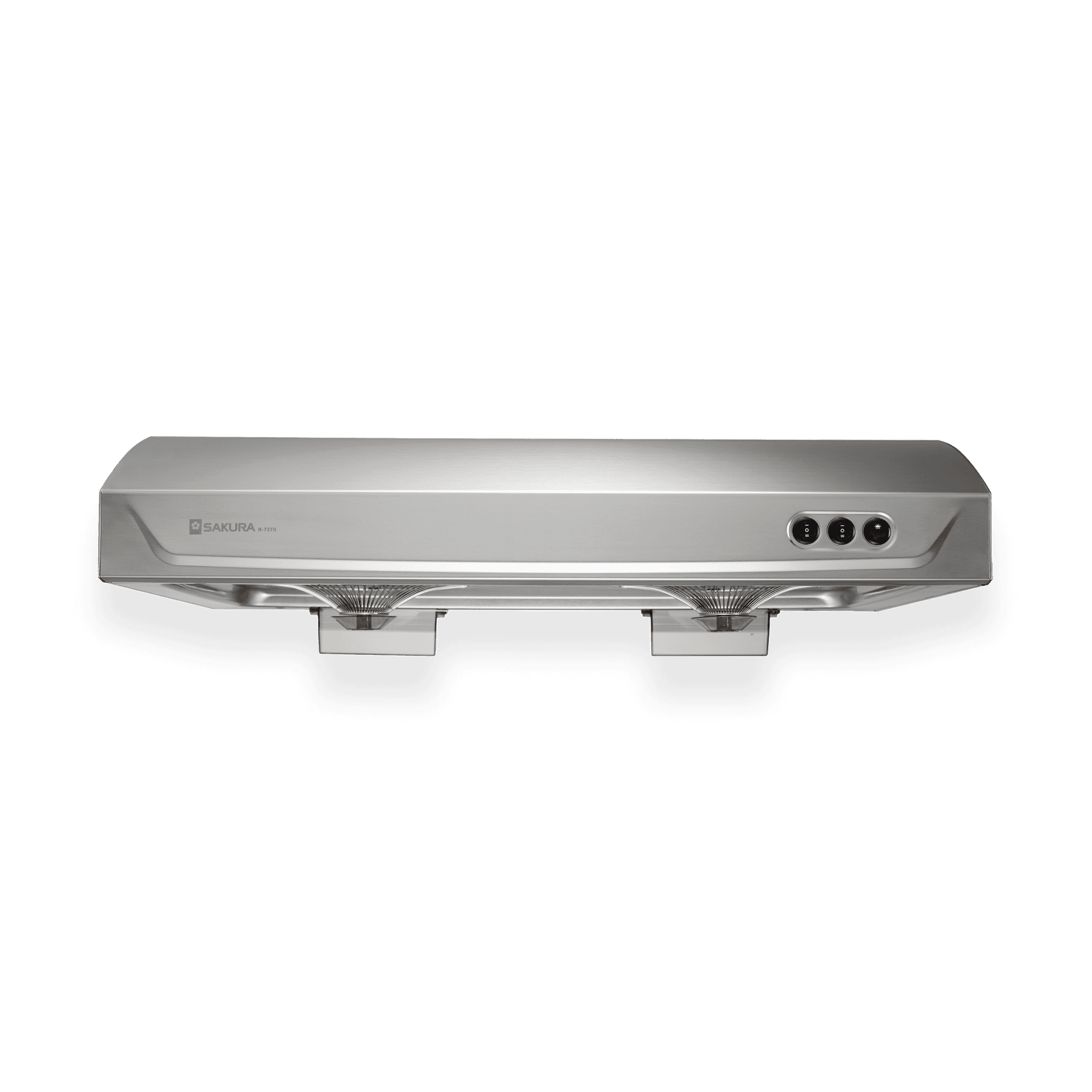

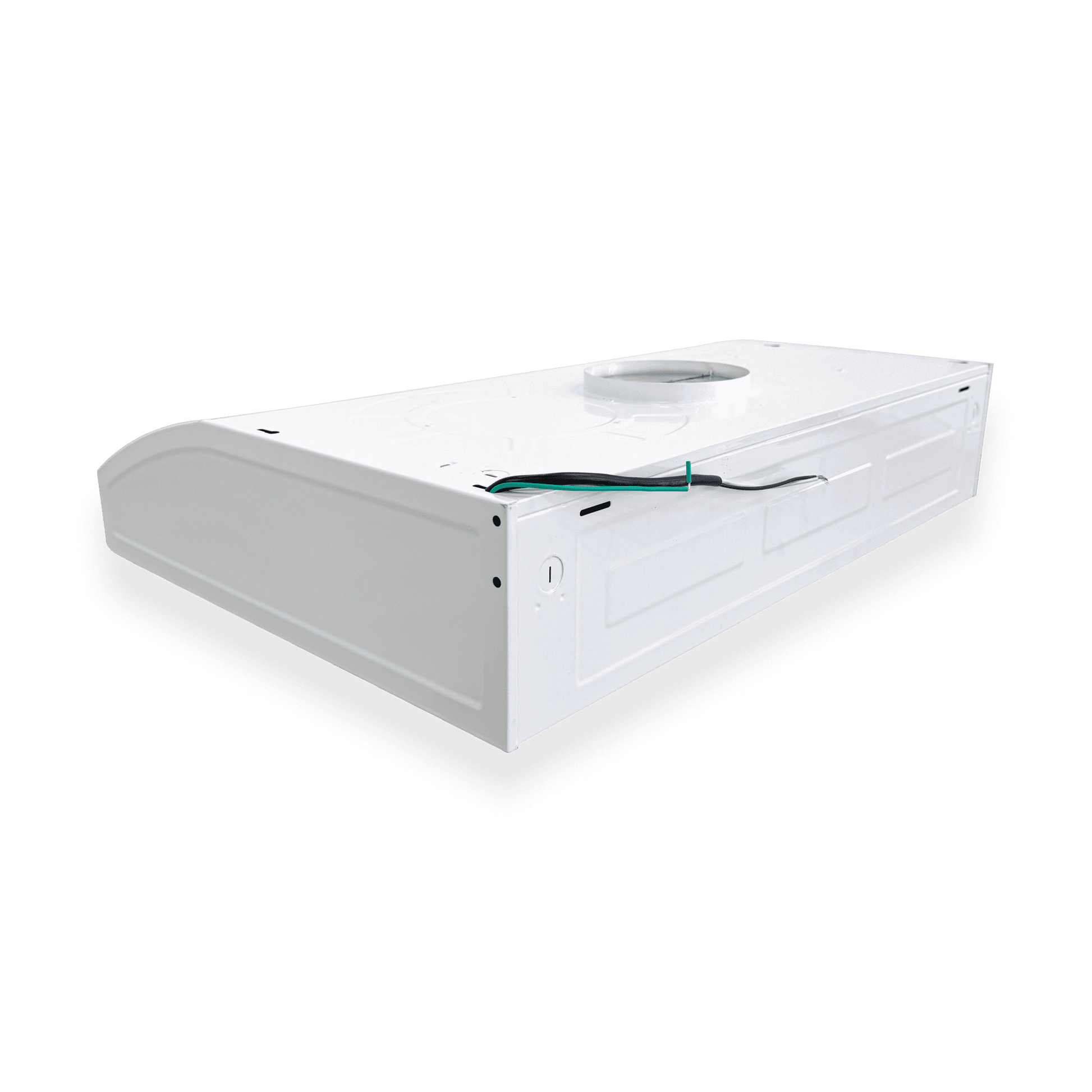

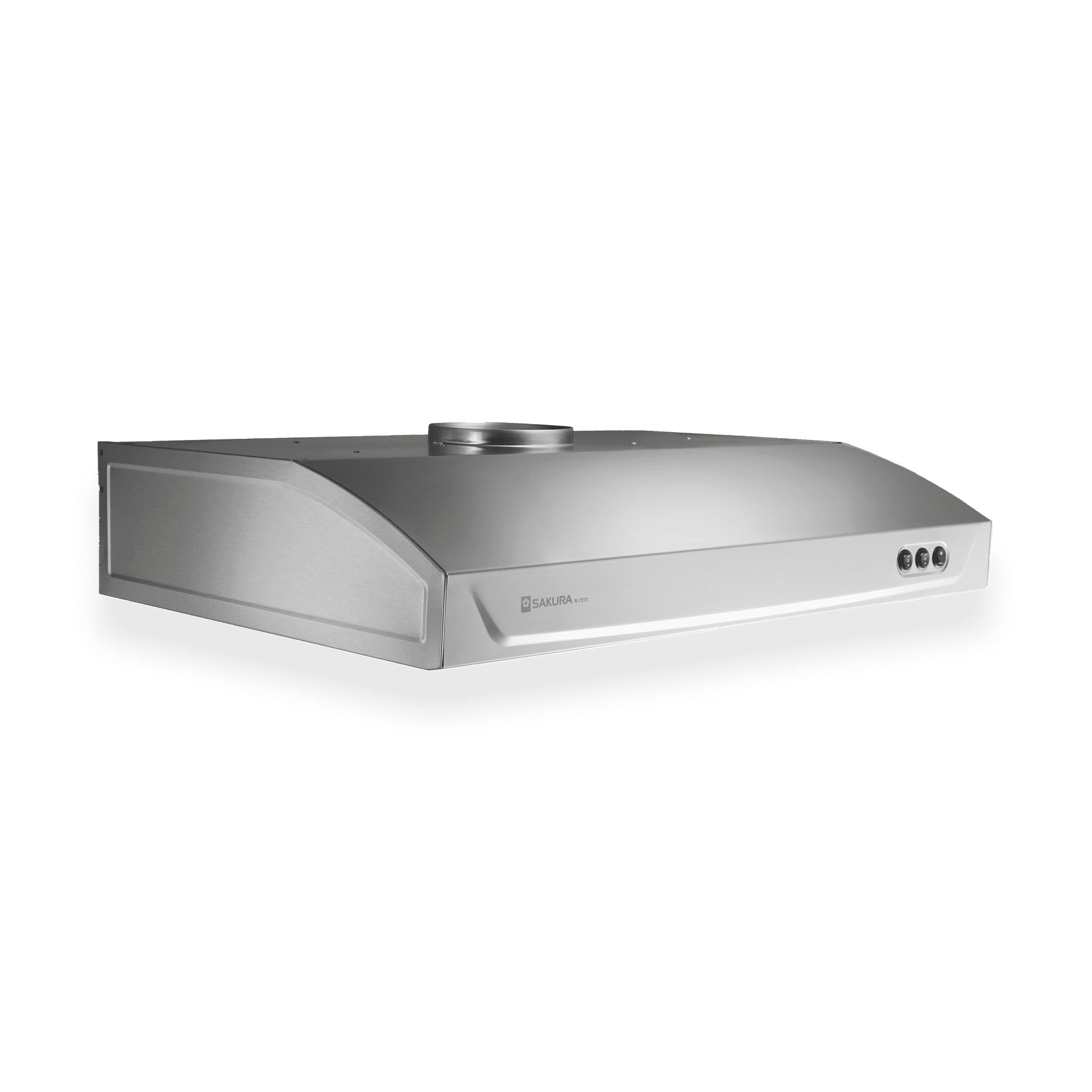

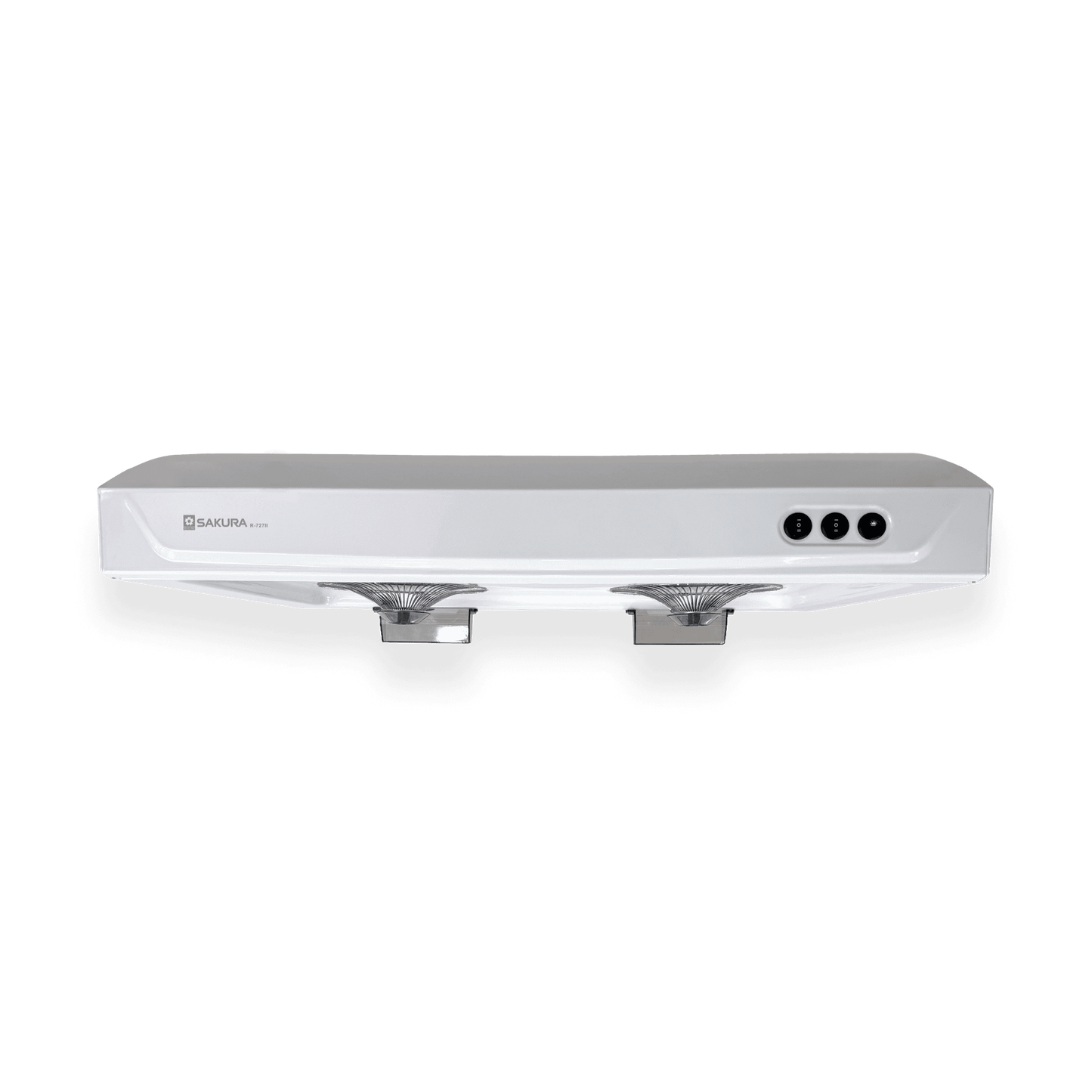

R-727II Series Sakura 30" Range Hood

• Made in Taiwan
• Max 580 CFM
• The economical Sakura model
• Elegant half-round front decorating panel and smooth curving edges match the contemporary style of modern kitchen.

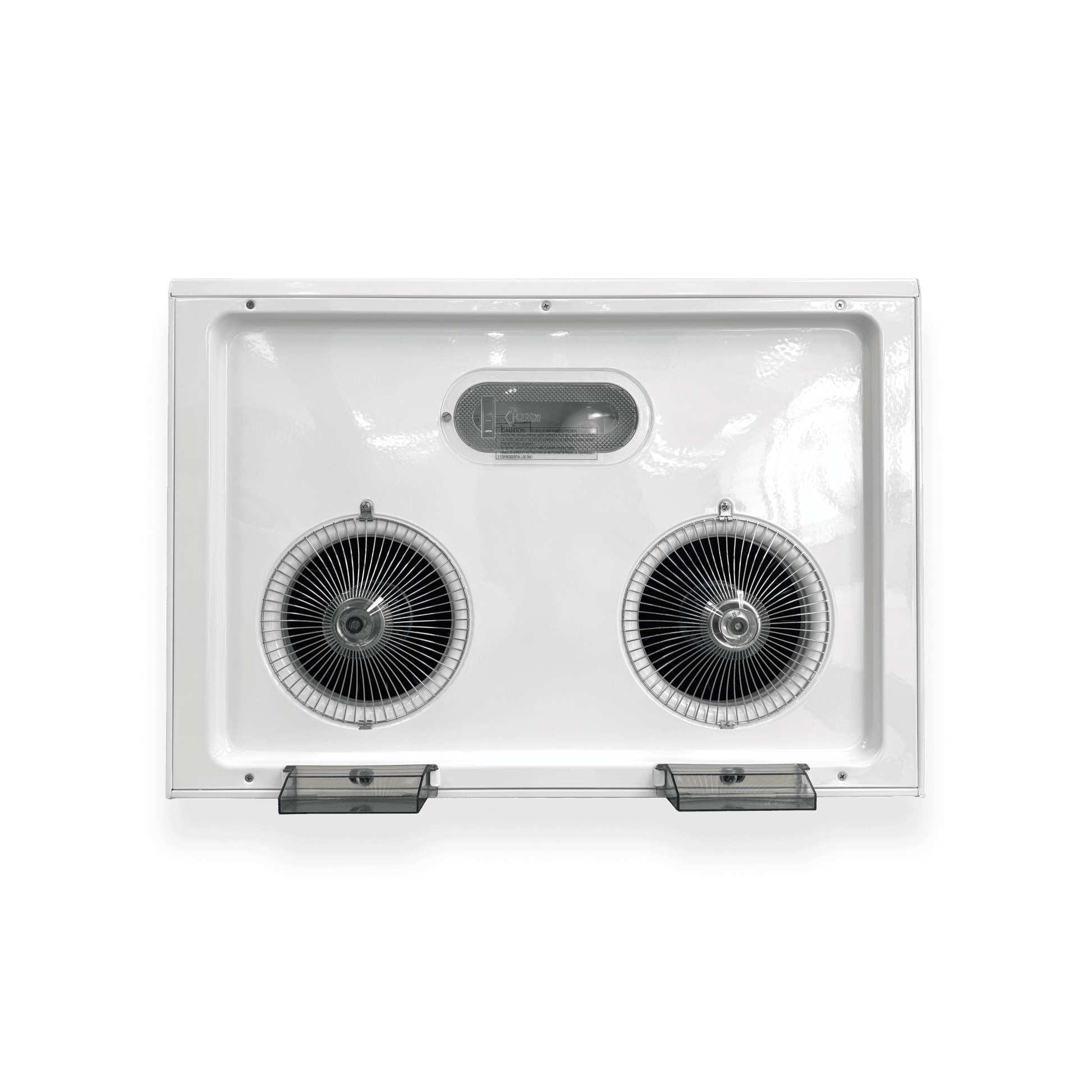

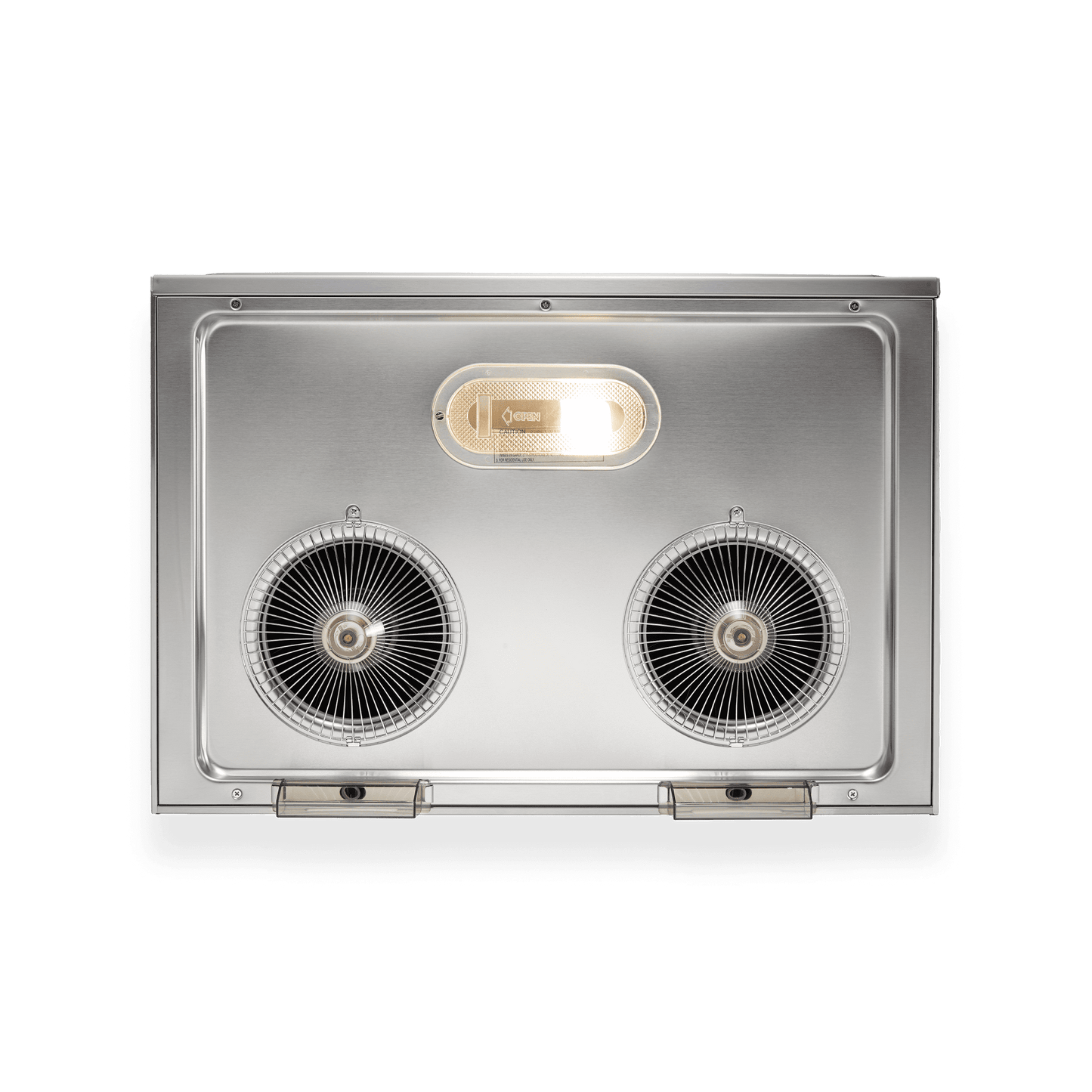

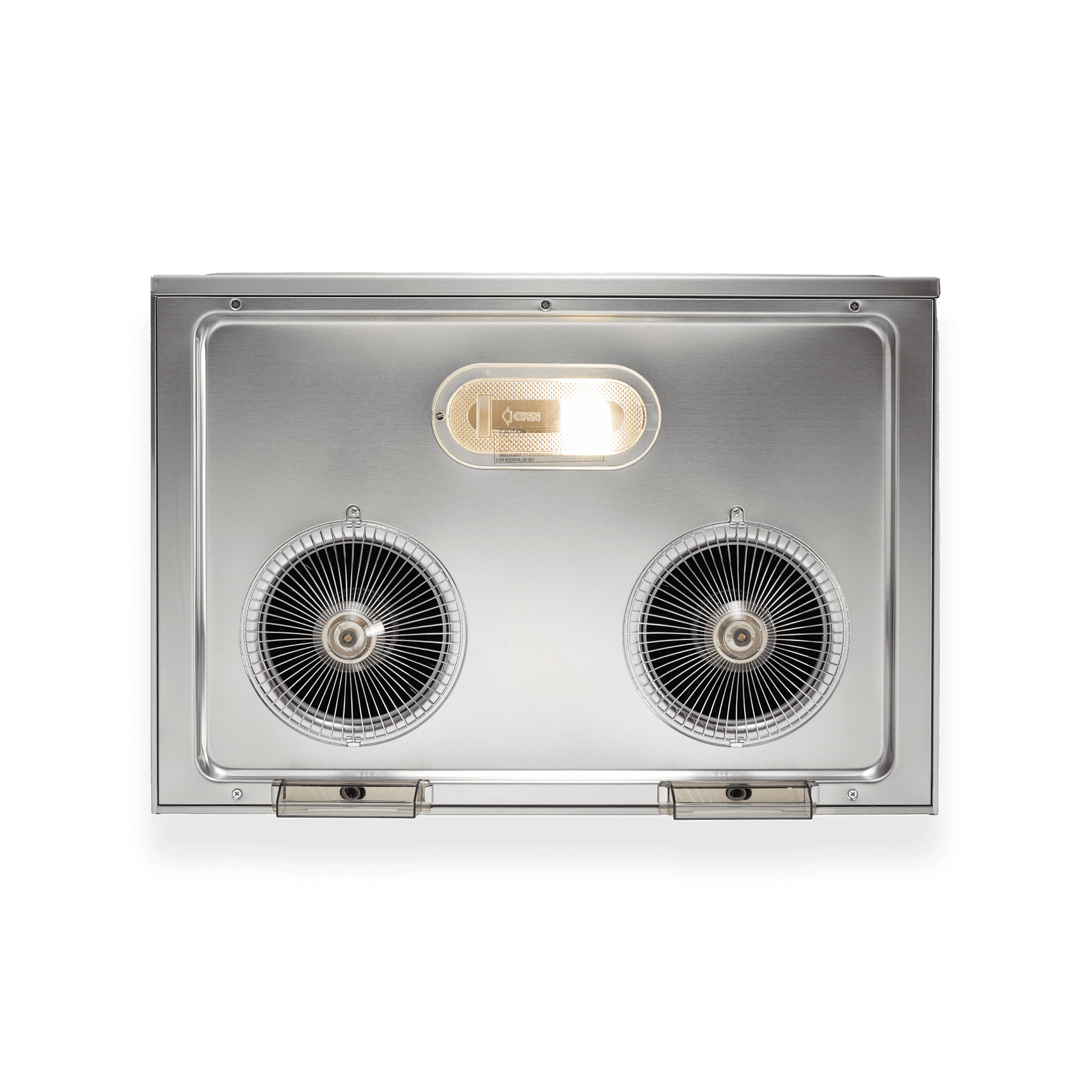

• Dual Speed motors that are independently controlled

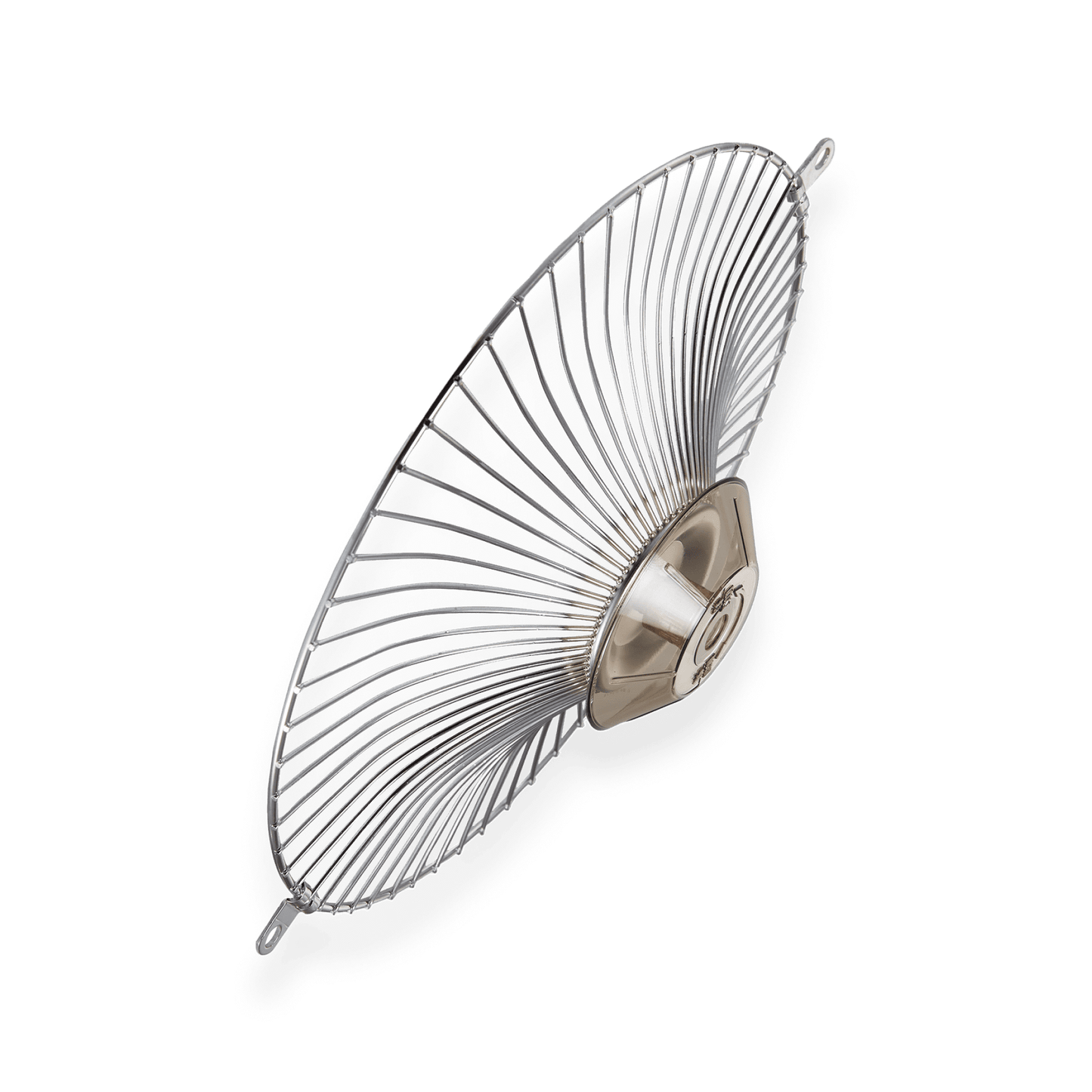

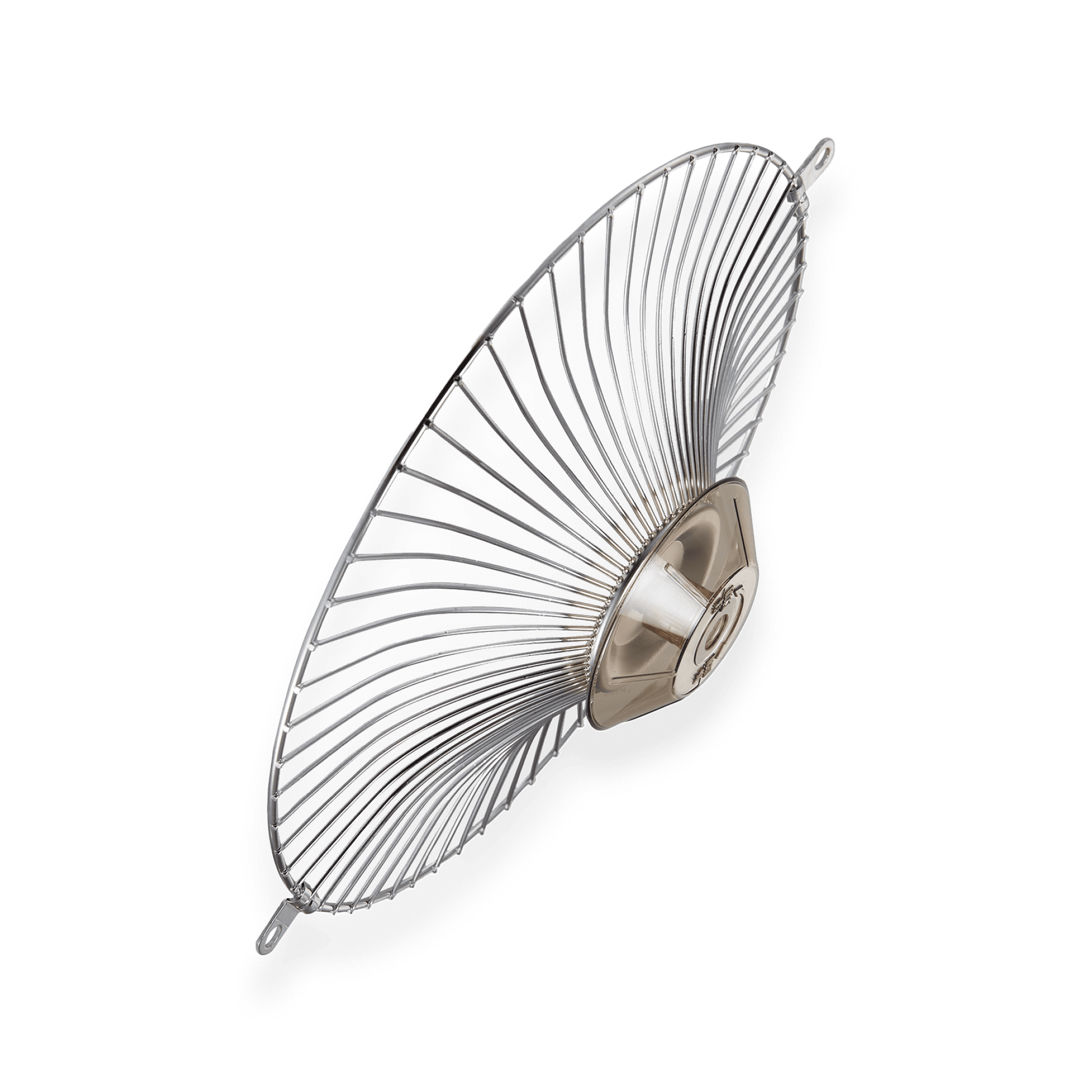

• Teflon coated non-stick fans prevent grease build up inside the hood
• Patented dishwasher safe removable front and rear oil collectors
• Round rocker switch with 2-speed control
• Individual light control switch

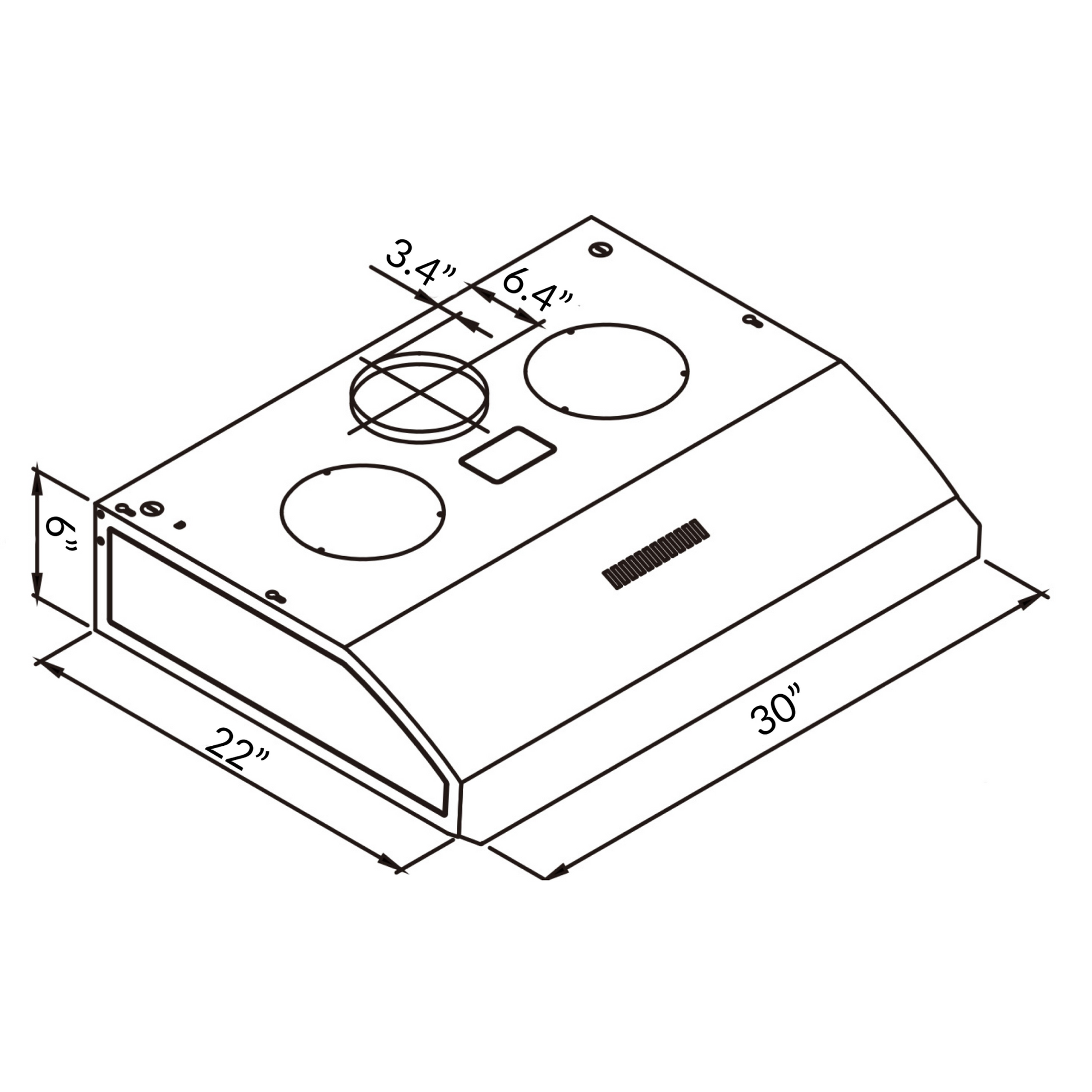

30" Model - 29.75" W x 22" D x 6" H

Net Weight 13.4kg

Gross Weight 14.9kg

Motor: Twin AC Motors

Filter: Aluminum Mesh Filter

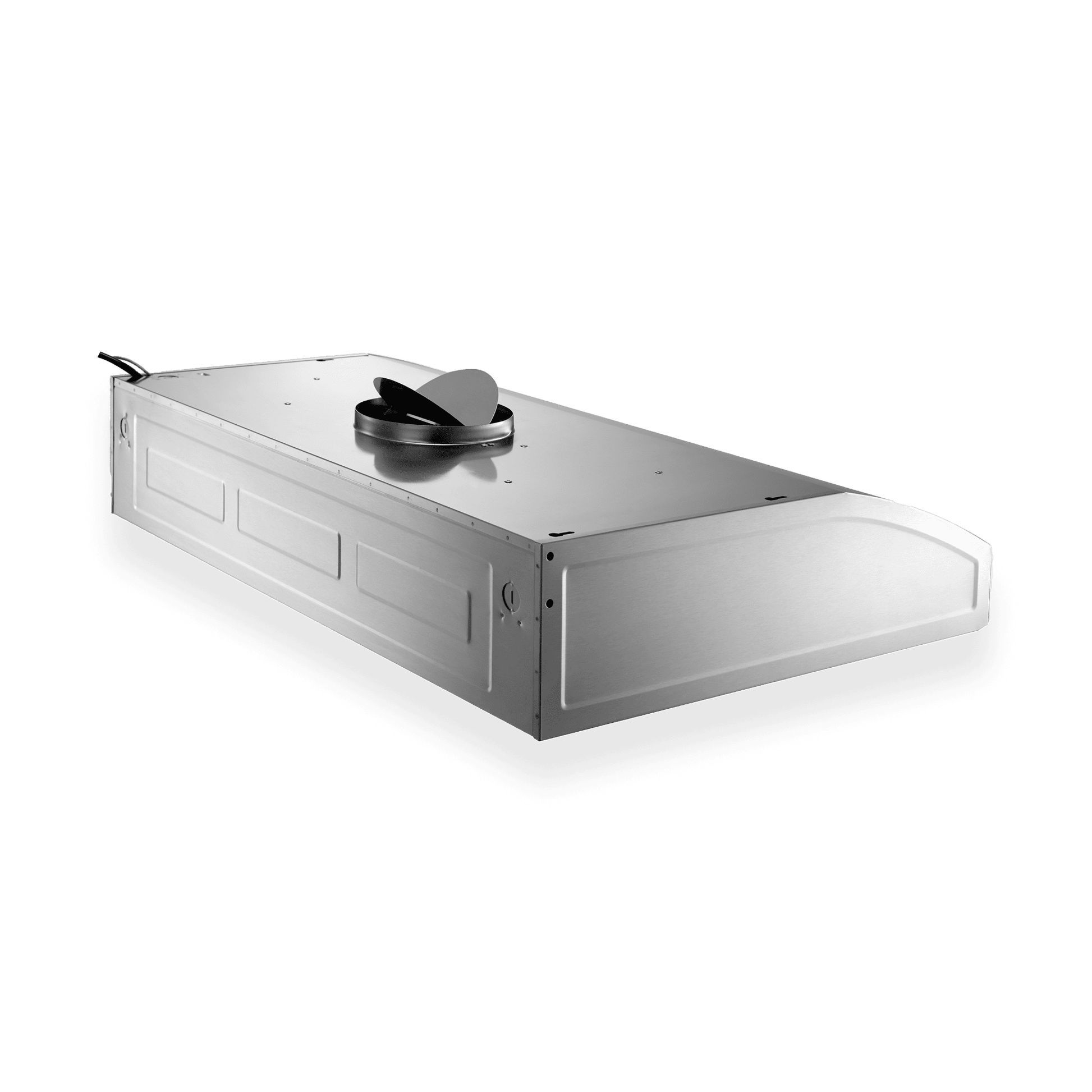

Duct Size: 6"

Illumination: 14W light bulb

Switch Type: Rocker Switch

Speed: 2 speeds

Noise level: 2.5 - 6 Sones

CFM: 380 - 580

Power Consumption: 178W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 30-32”
Gas stove: 31-33”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.

R-727II User manual (English)
