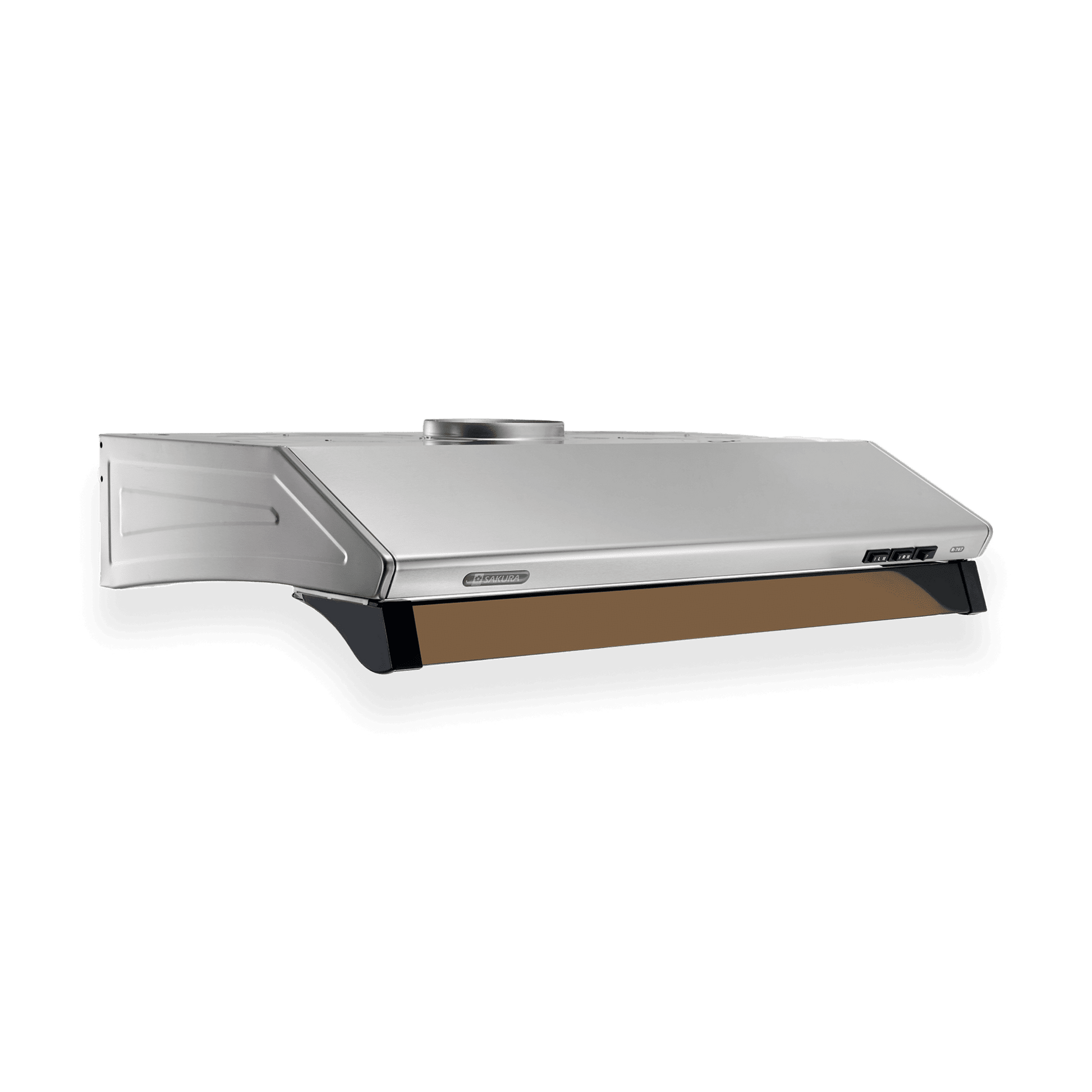

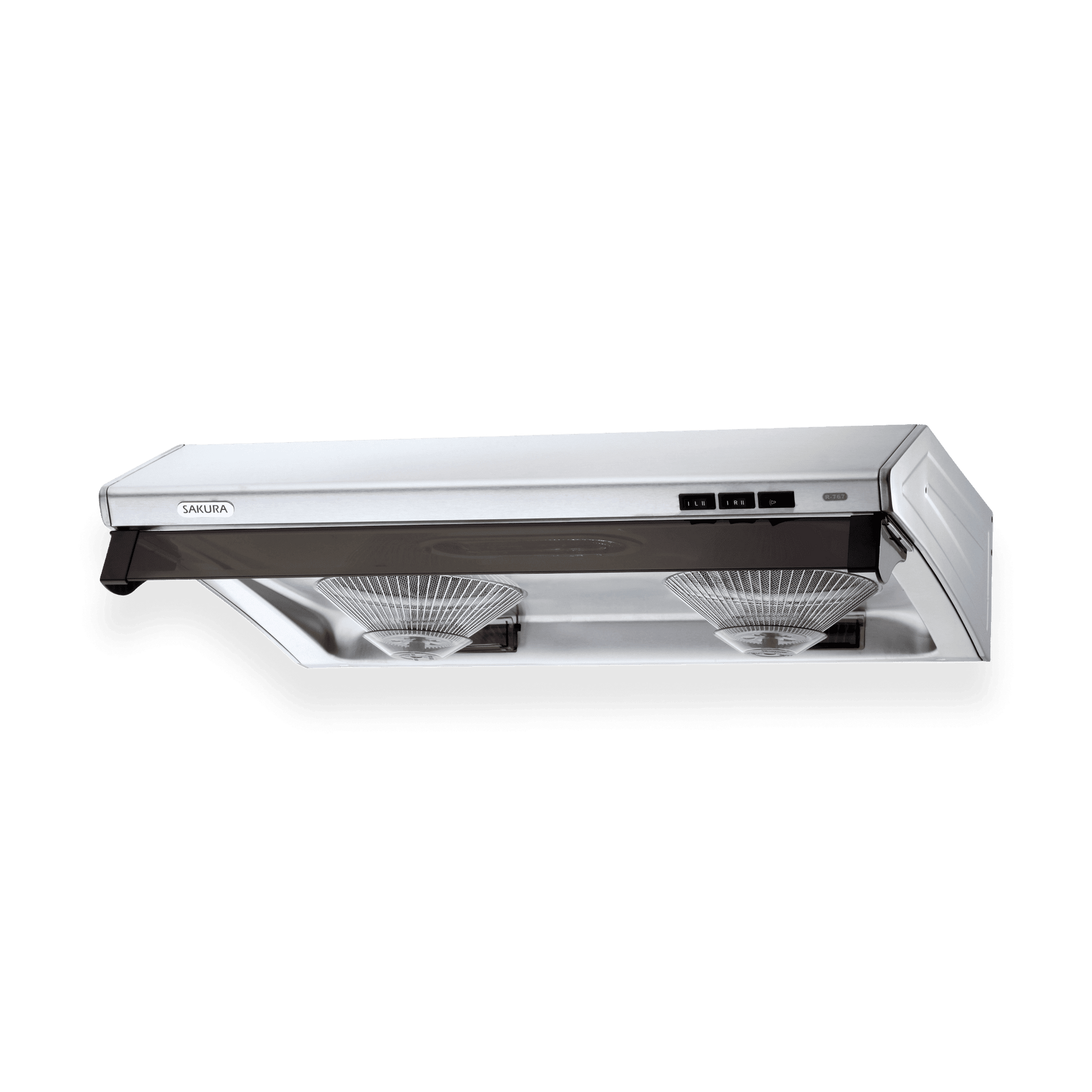

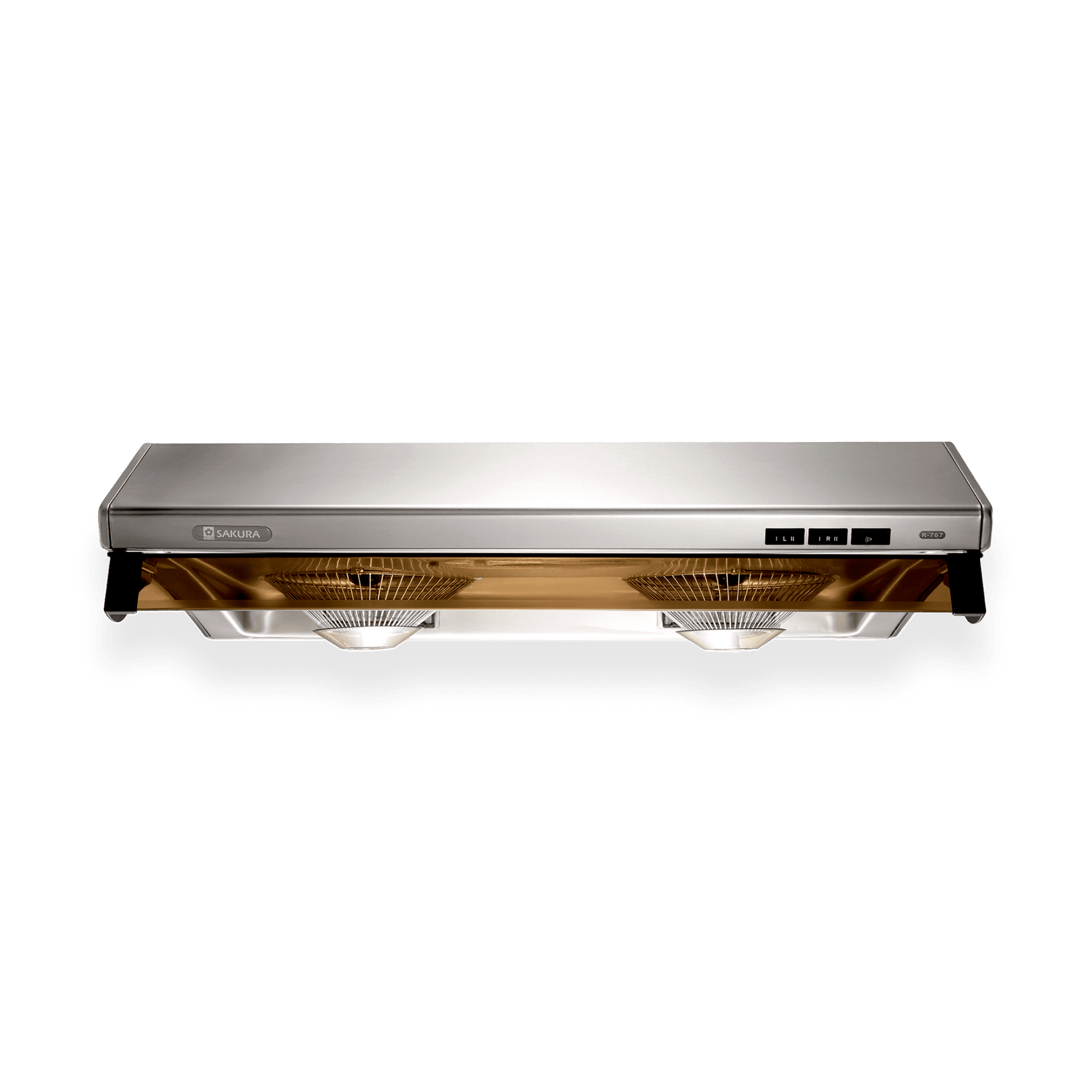

R-767 Sakura 30"or 36" Range Hood

• Made in Taiwan
• Max 750 CFM
• Slim design, 5" thickness fits in the tightest space

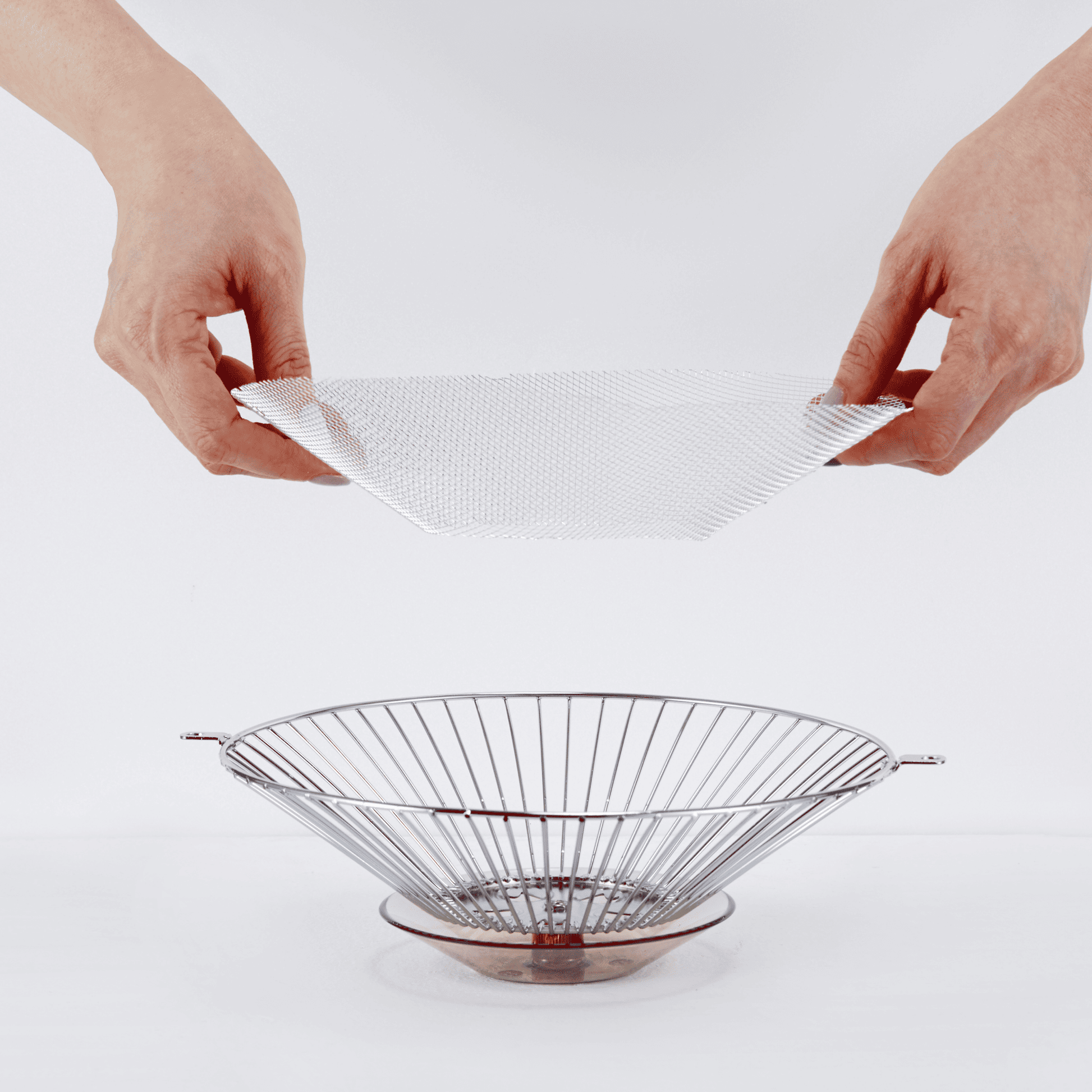

• Patented grease trapping cups and aluminum filters, both of which are detachable and dishwasher-safe, trap oil and prevent grease from entering the hood

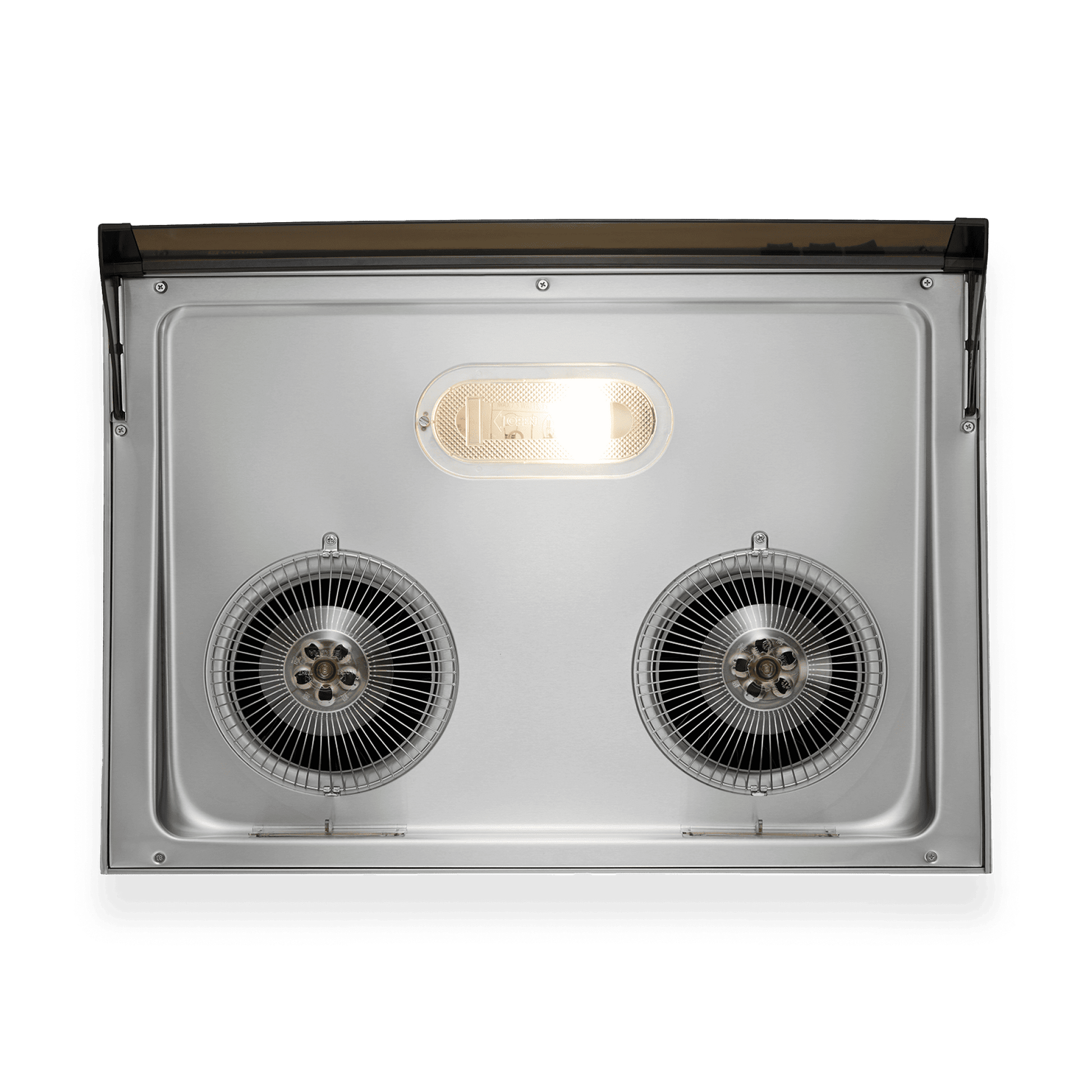

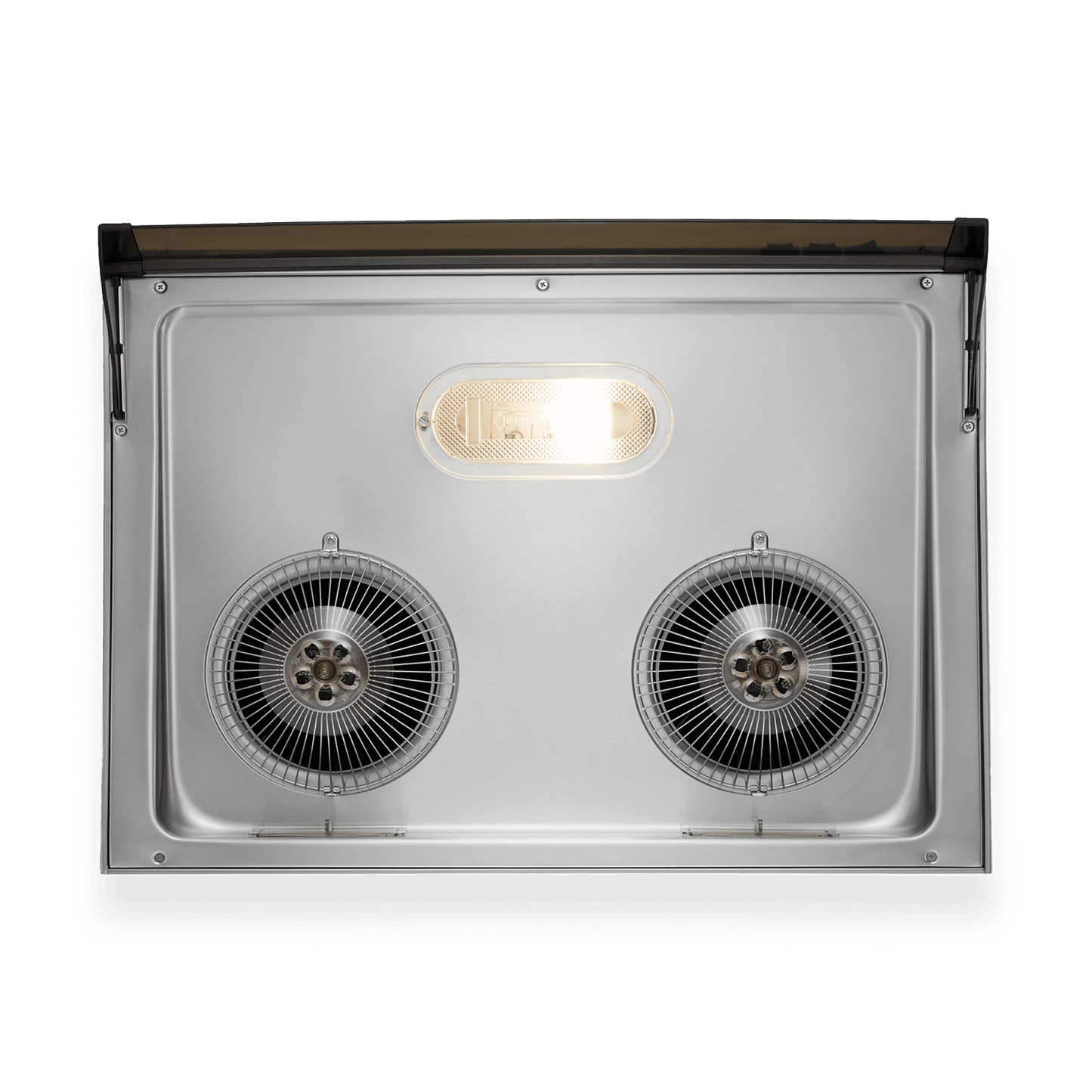

• Twin motors make for maximum power yet quiet operation
• Rectangular rocker switch allows you the option of picking from two different speeds
• Teflon-coated non-stick fans prevent grease buildup
• The front smoke cover redirects smoke and steam

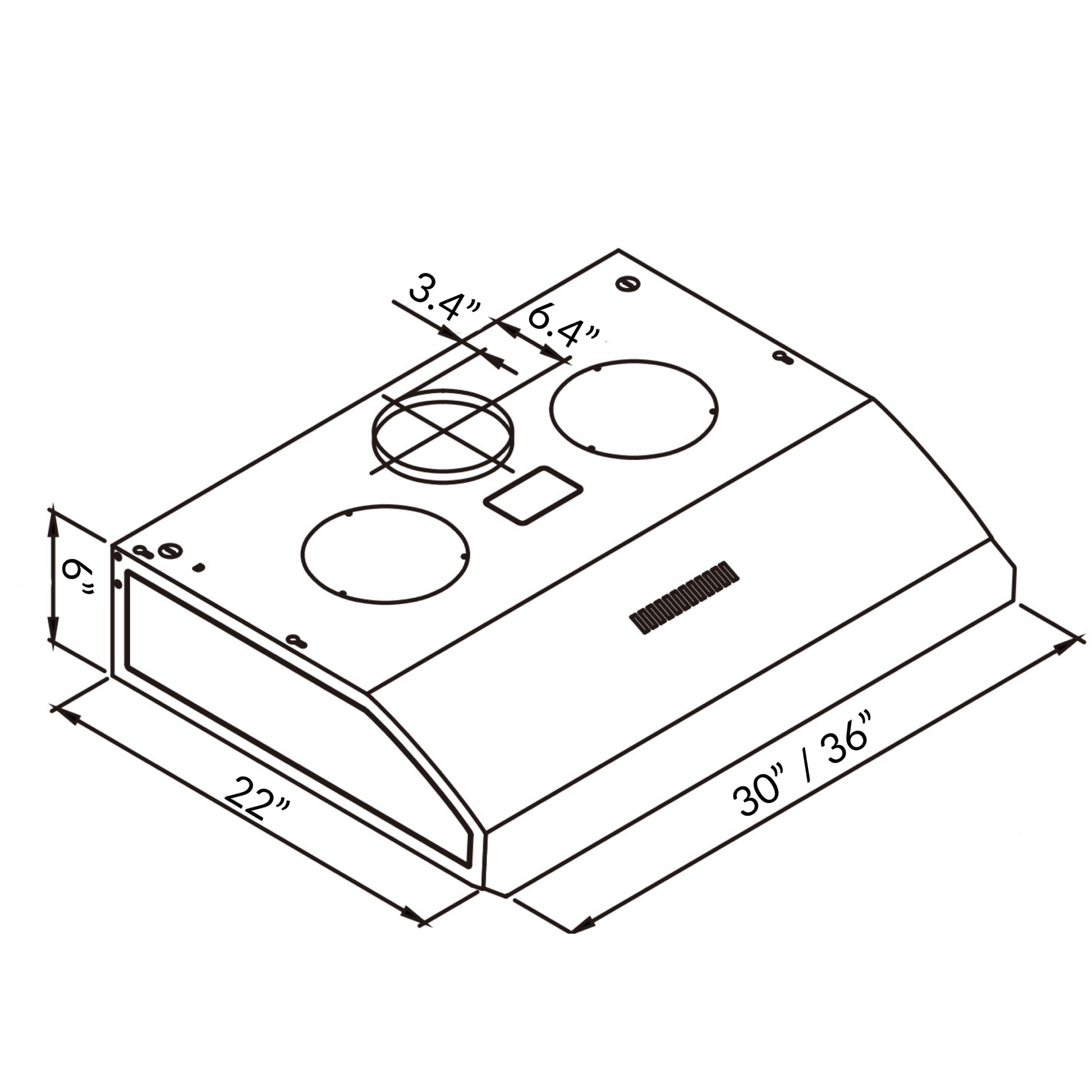

30" Model - 30" W x 22" D x 6" H

36" Model - 36" W x 22" D x 6" H

Net Weight 12-15kg

Gross Weight 15-18kg

Motor: Twin AC Motors

Filter: Aluminum Mesh Filter

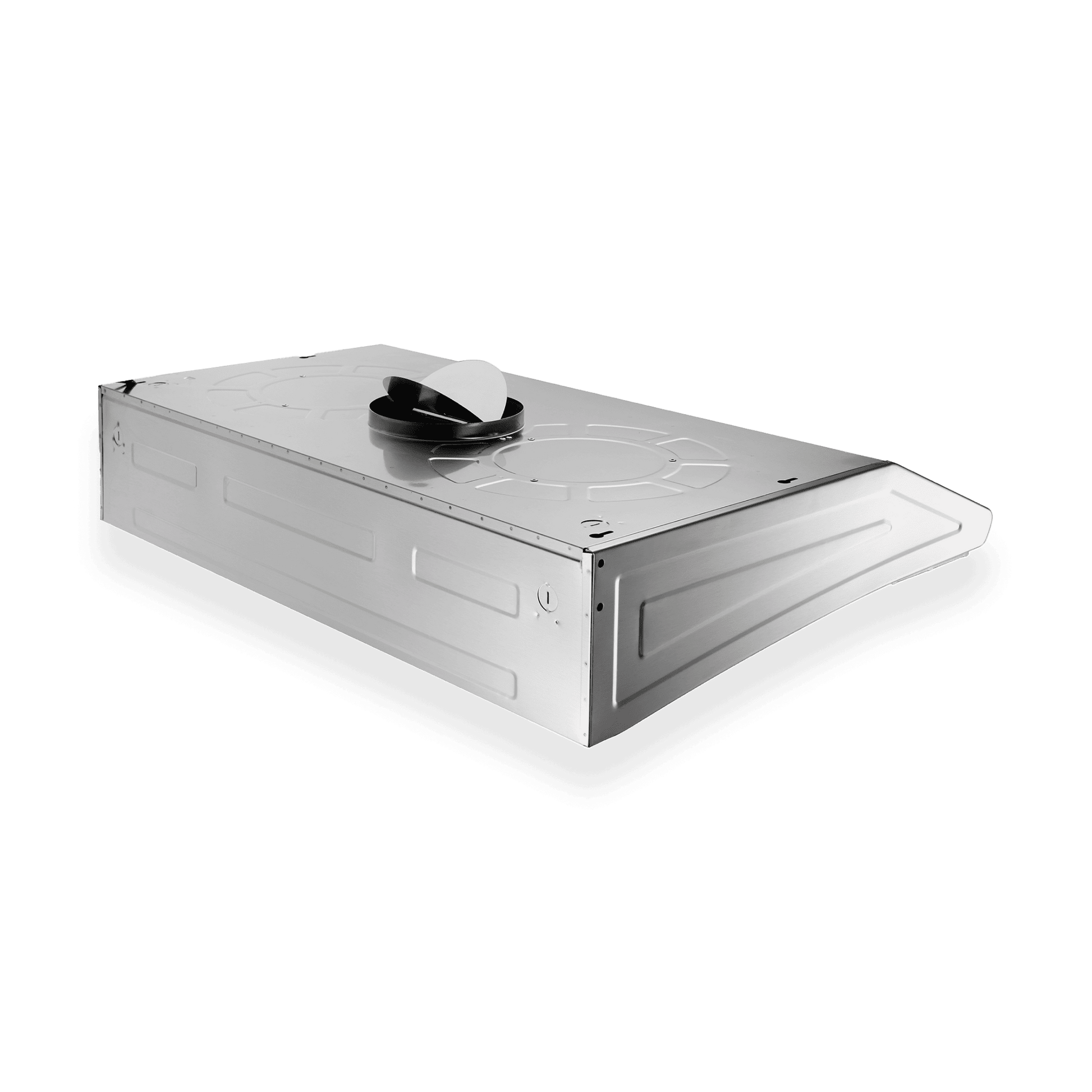

Duct Size: 6"

Illumination: 14W light bulb x1

Switch Type: Rocker Switch

Speed: 2 speeds

Noise level: 2 - 5 Sones

CFM: 385 - 750

Power Consumption: 178W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 30-32”
Gas stove: 31-33”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.

R-767 User manual (English)
