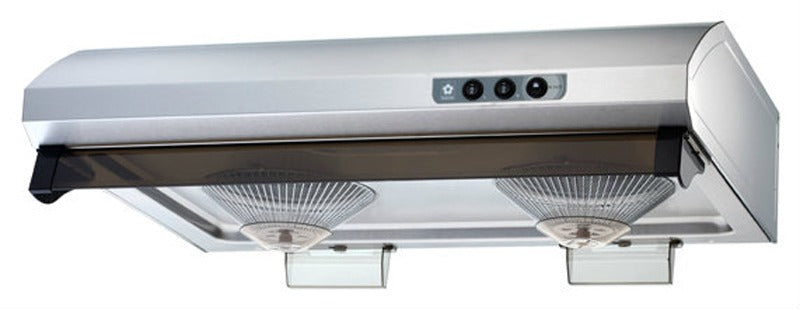

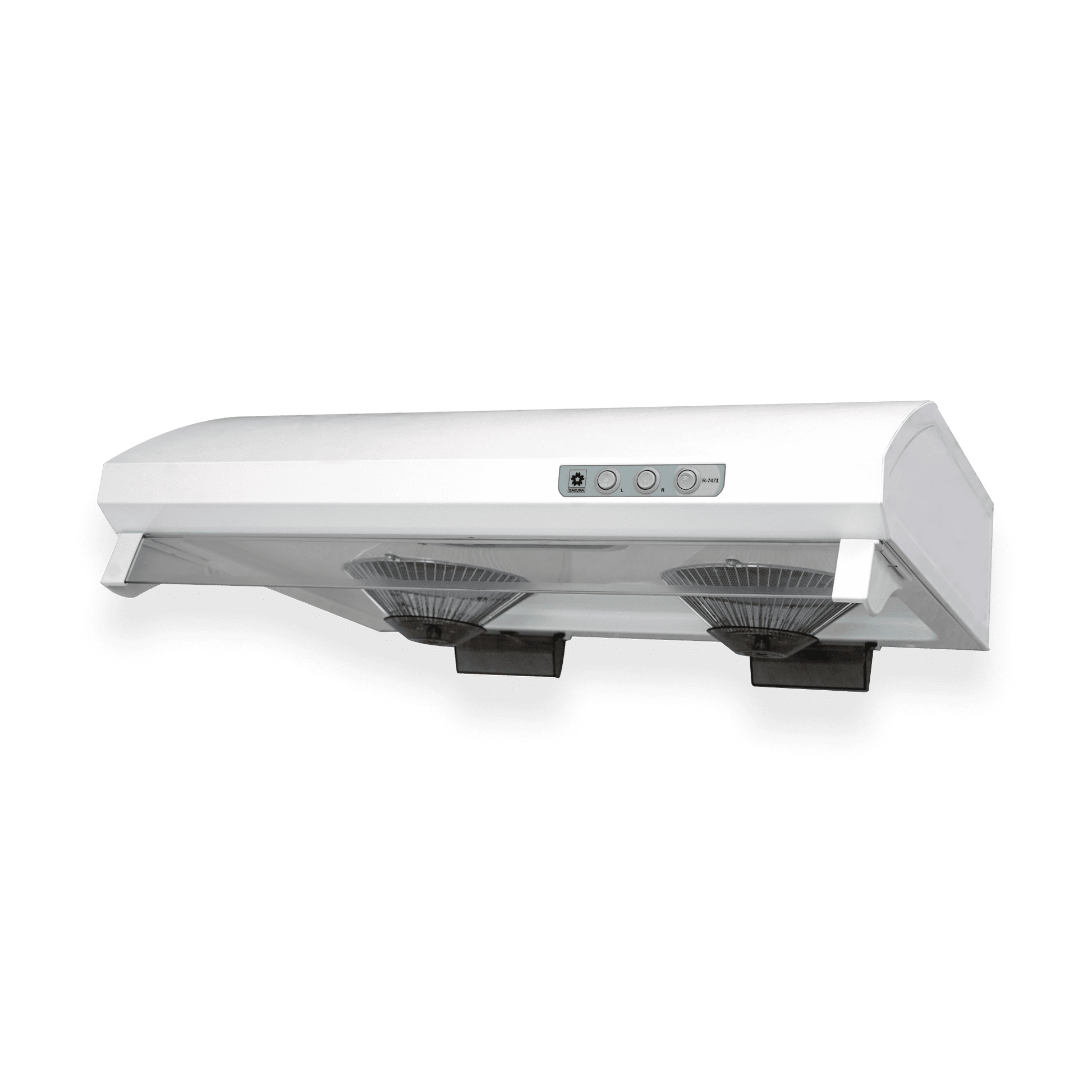

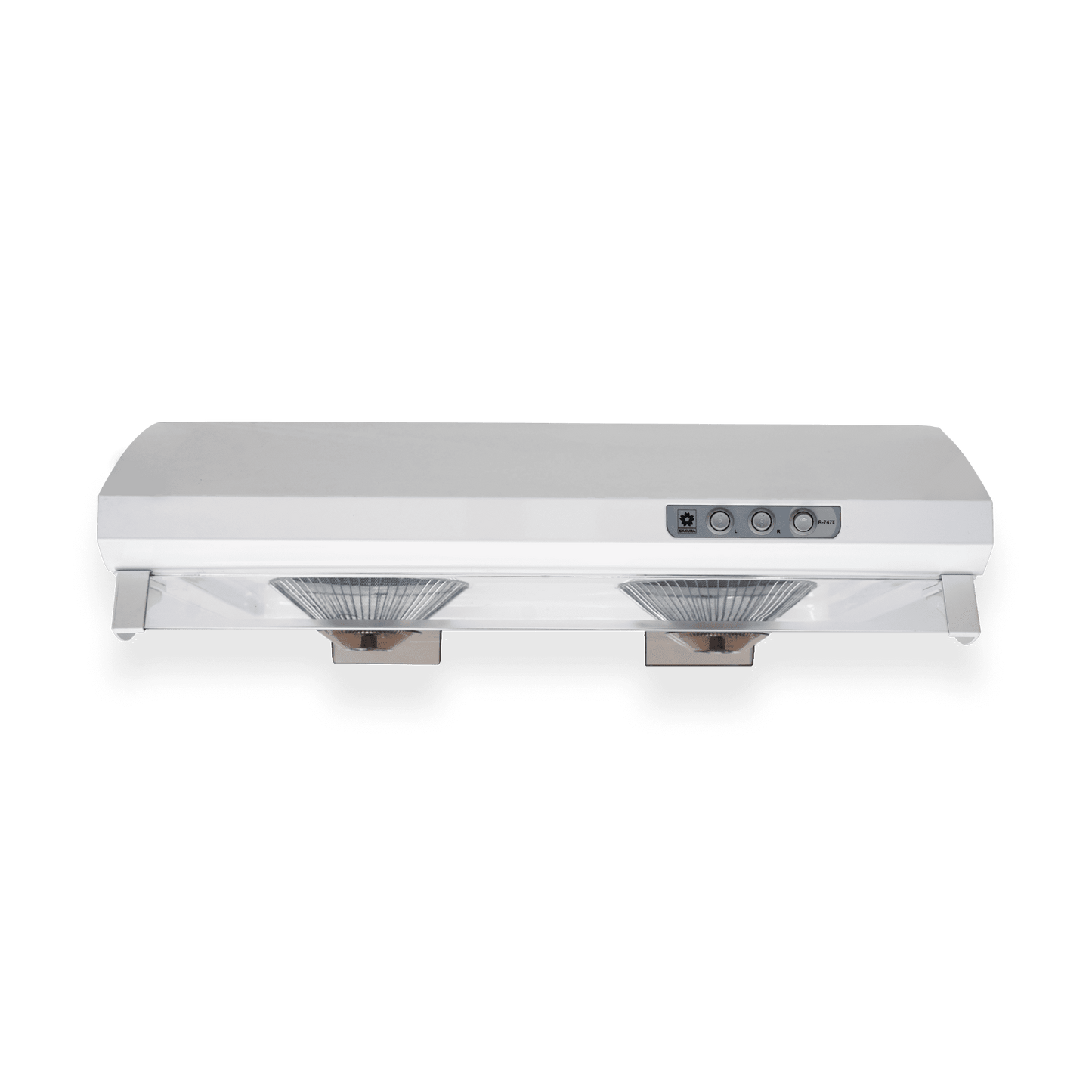

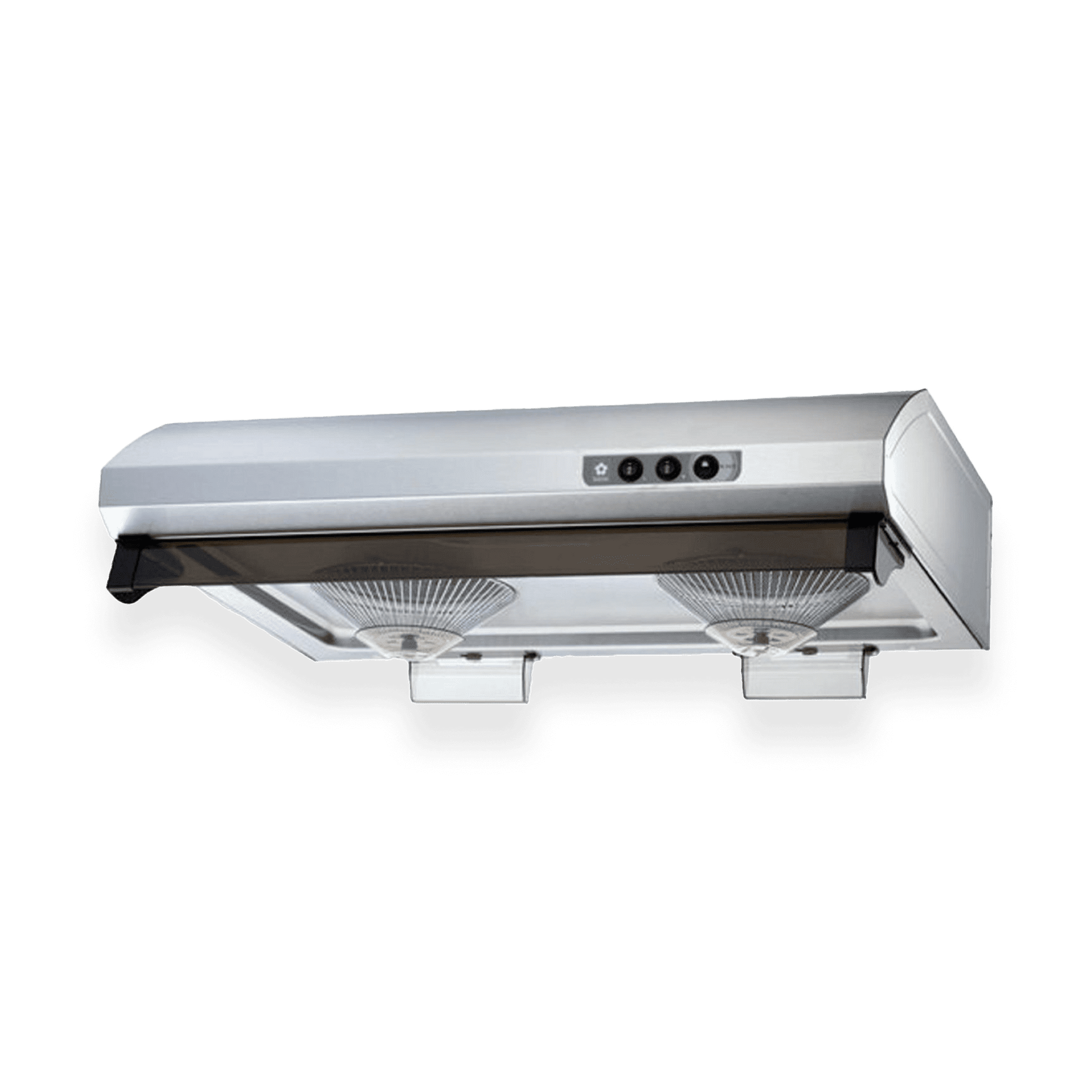

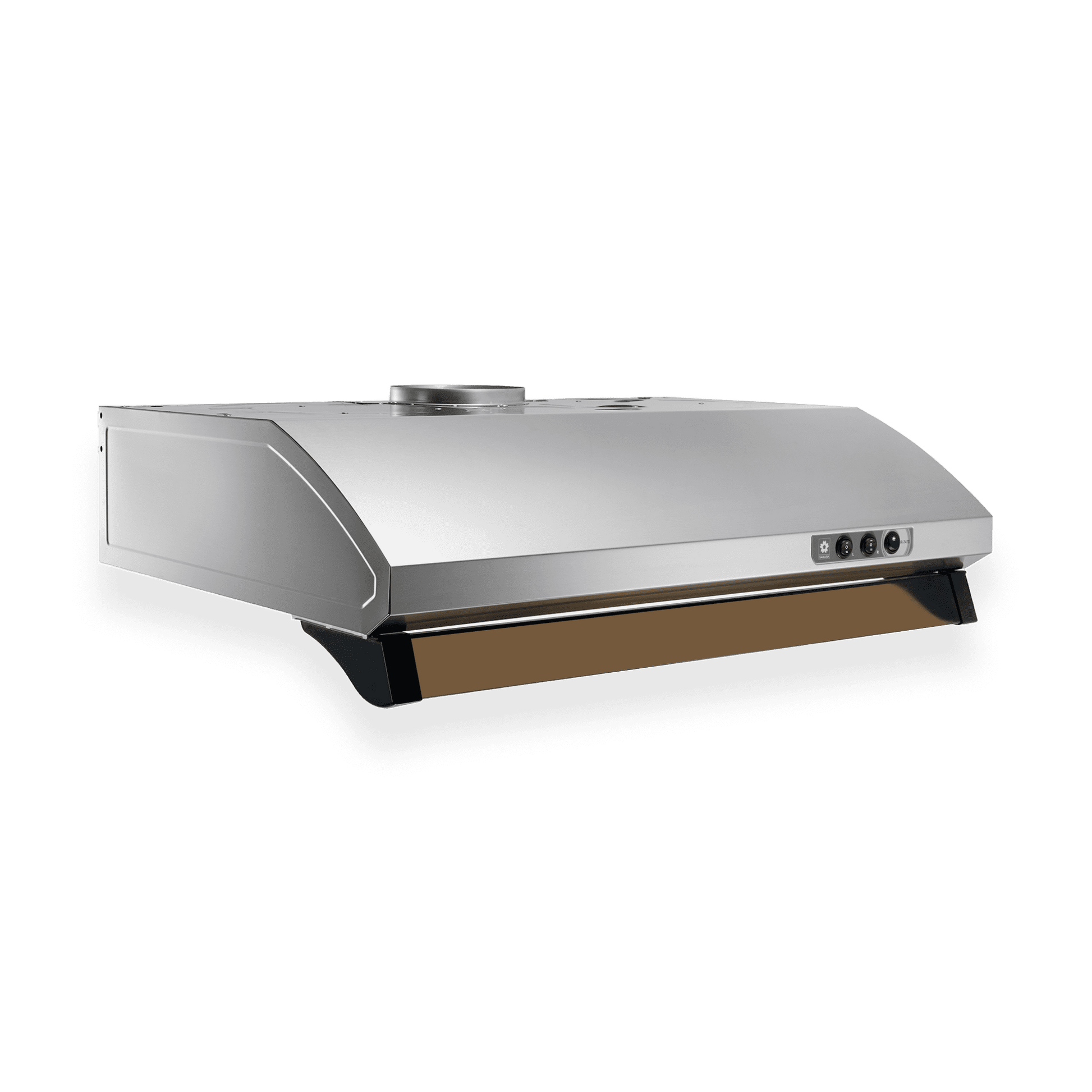

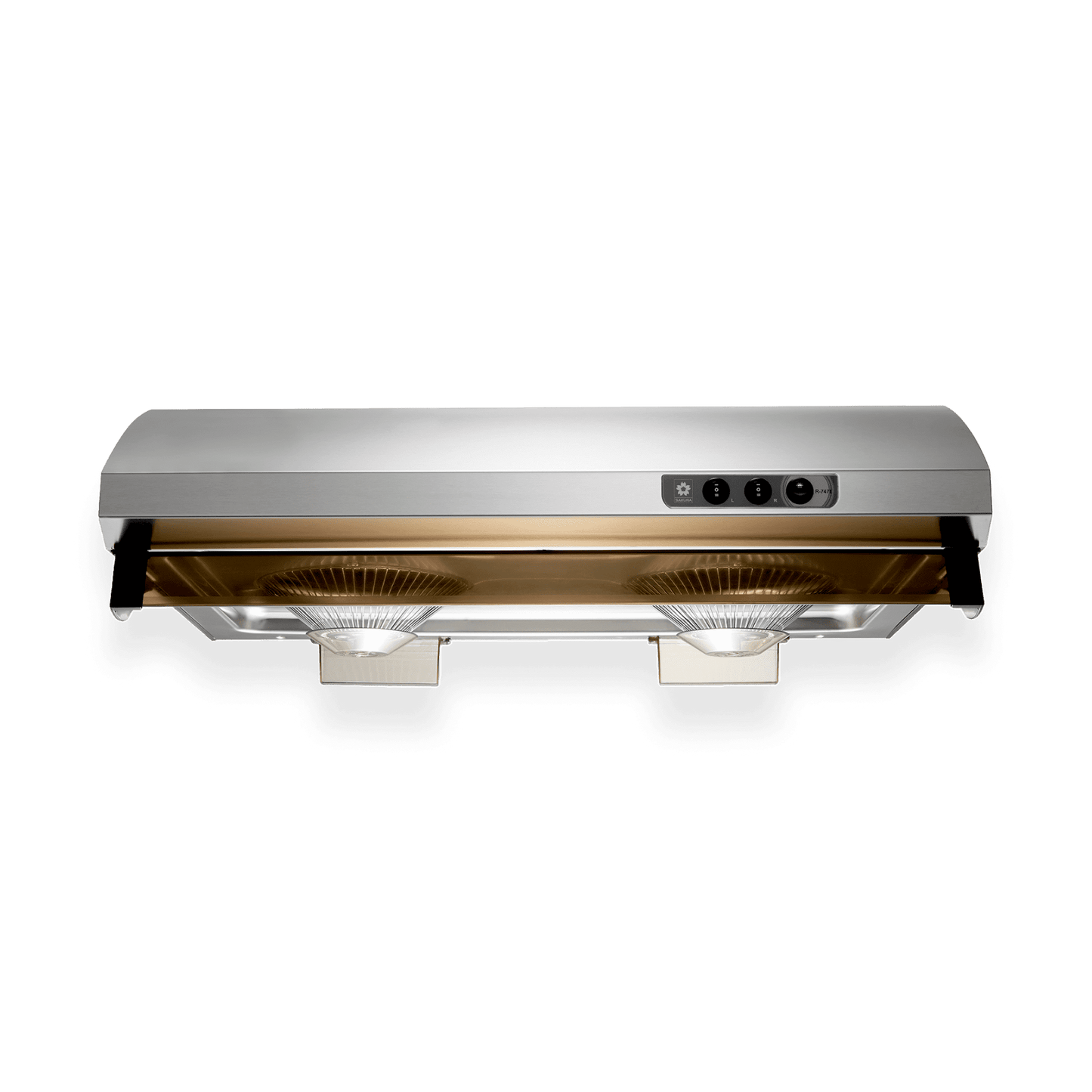

R-747II Sakura 30"or 36“ Range Hood

• Made in Taiwan
• Max 750 CFM
• R747II is all around value leader in SAKURA family

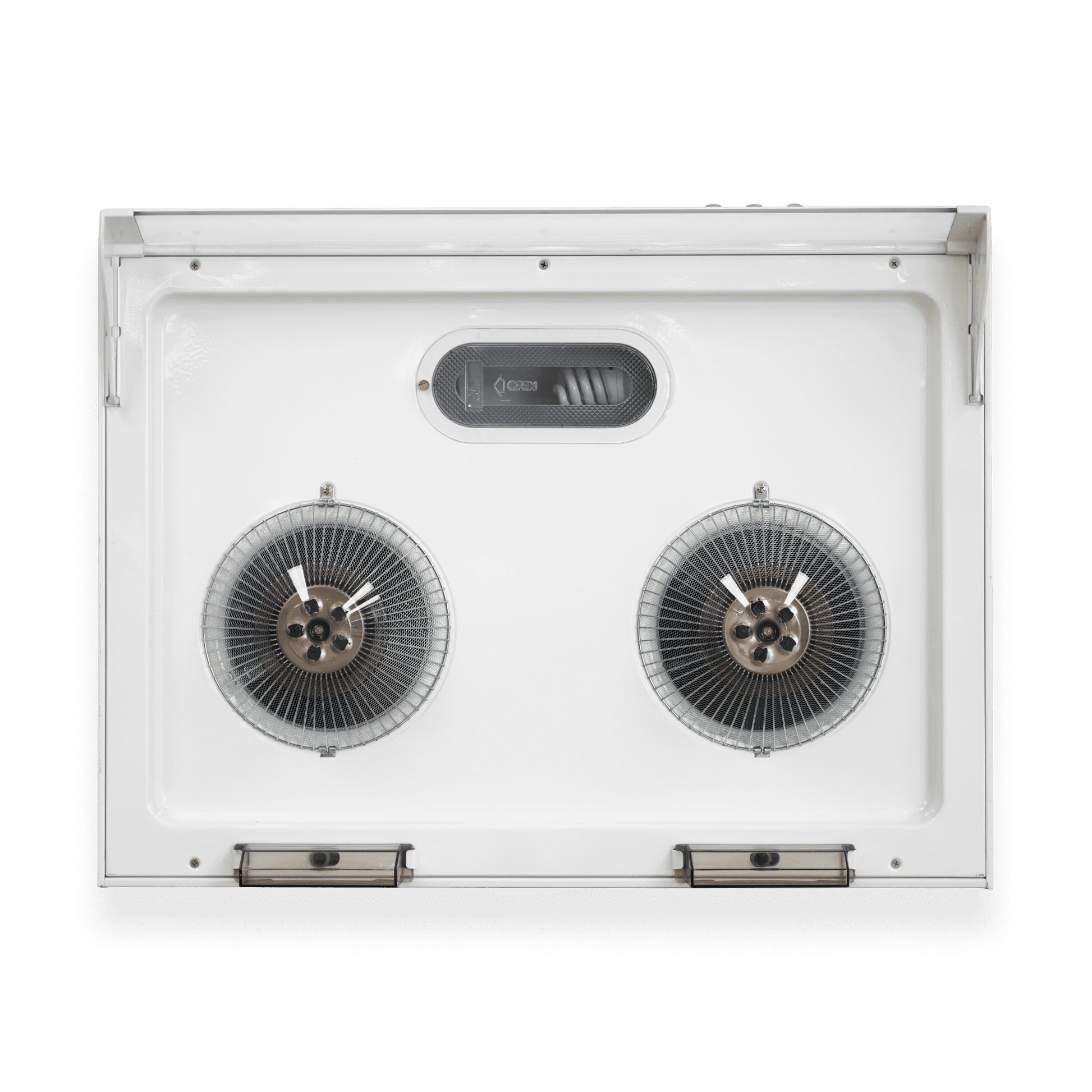

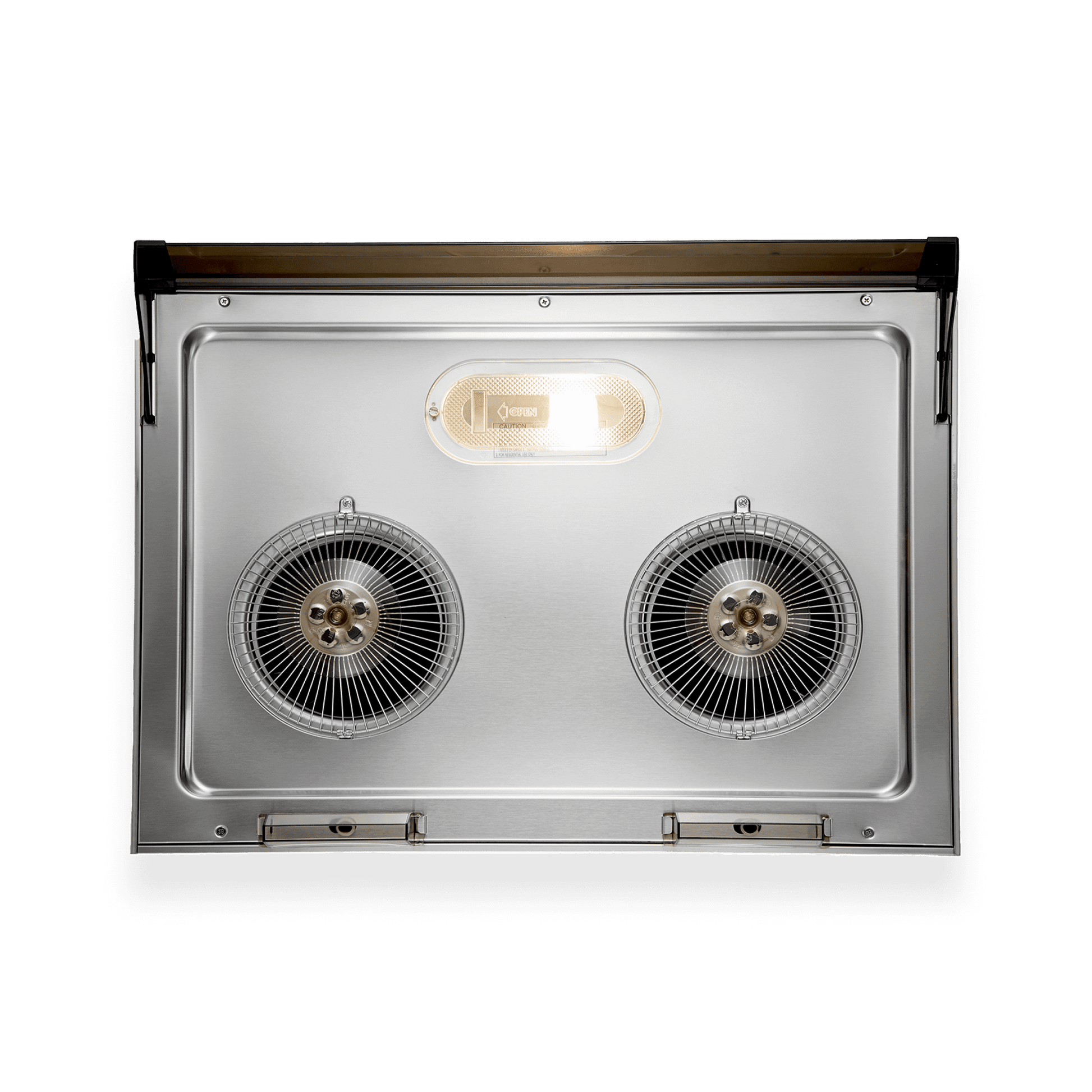

• Two powerful centrifugal motors that are independently controlled

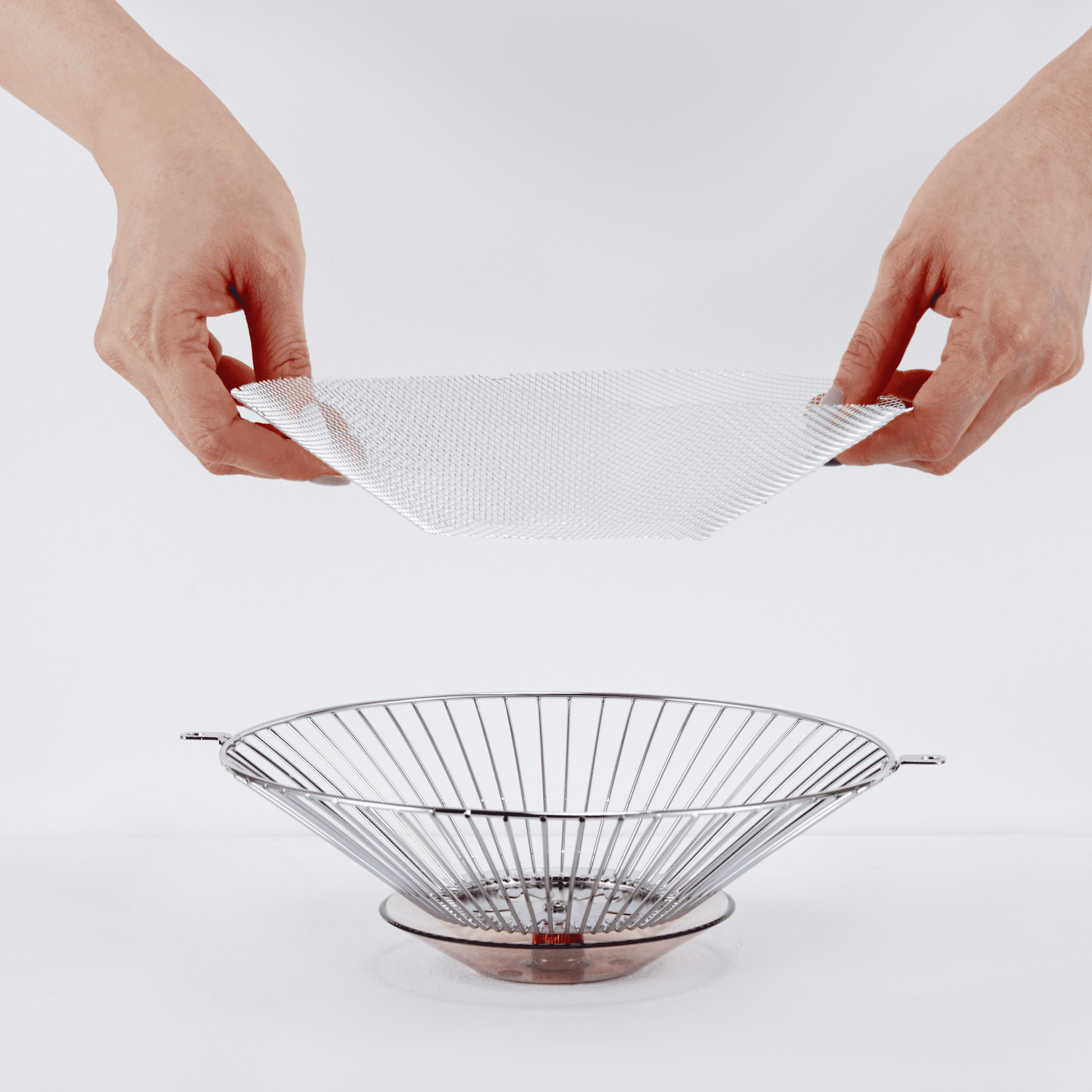

• Patented Sakura aluminum filters extract 60% of the grease that is in the air before entering your range hood and prevents oil from dripping. It is easy to clean and replace
• Teflon coated non-stick fans prevent grease build up inside the hood
• Patented dishwasher safe removable front and rear oil collectors
• Front smoke cover prevent smoke and steam from escaping
• Round rocker switch with 2 speeds control
• Individual light control switch

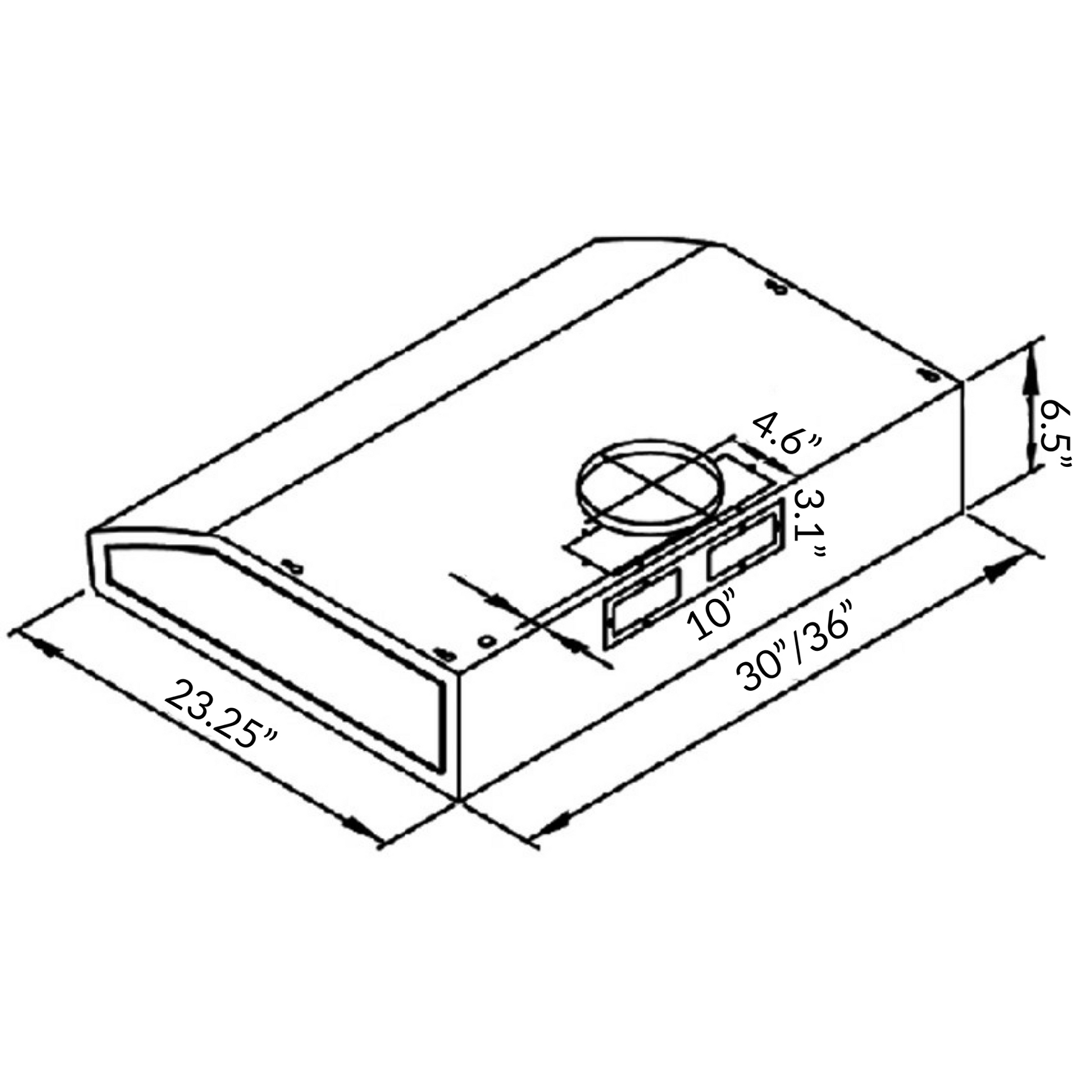

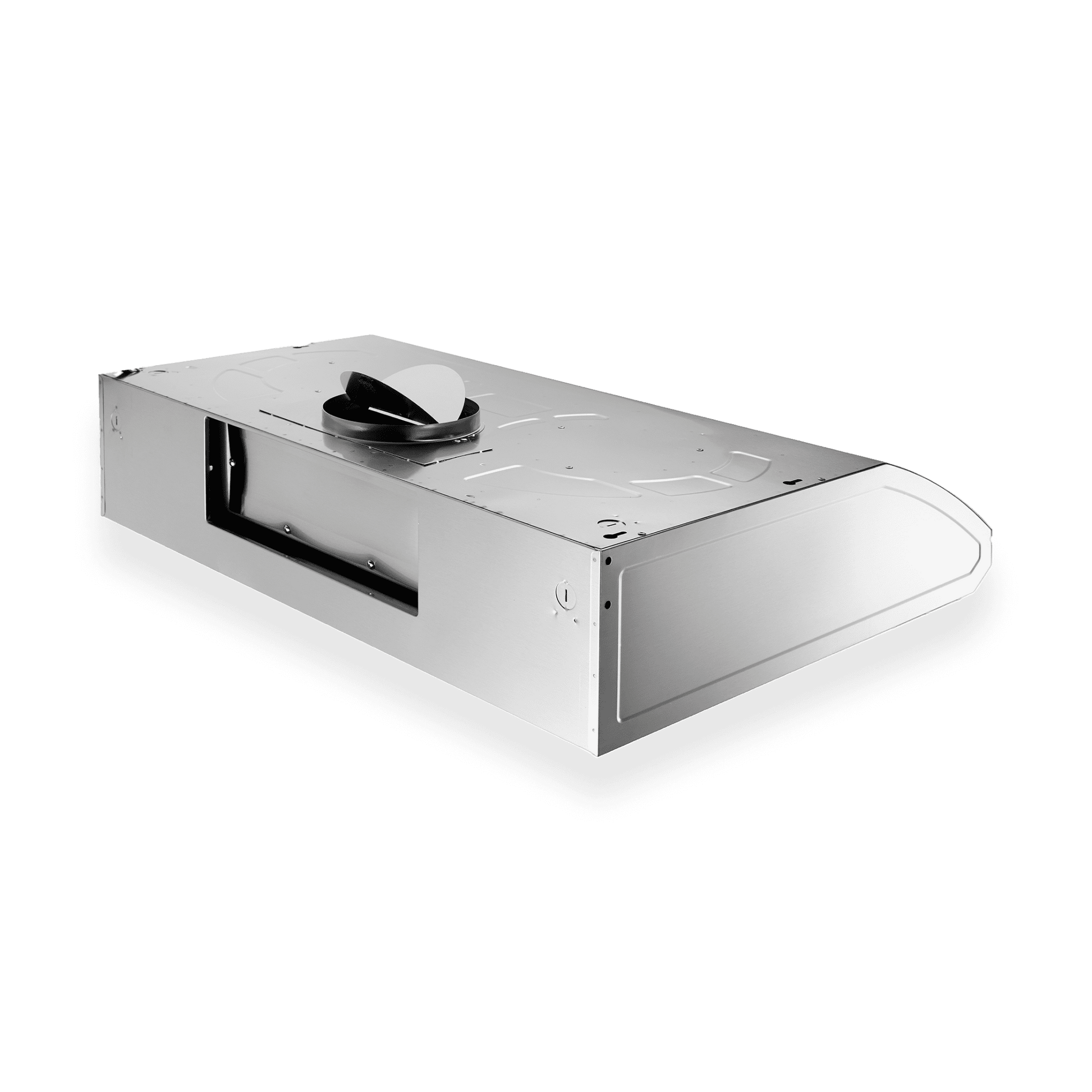

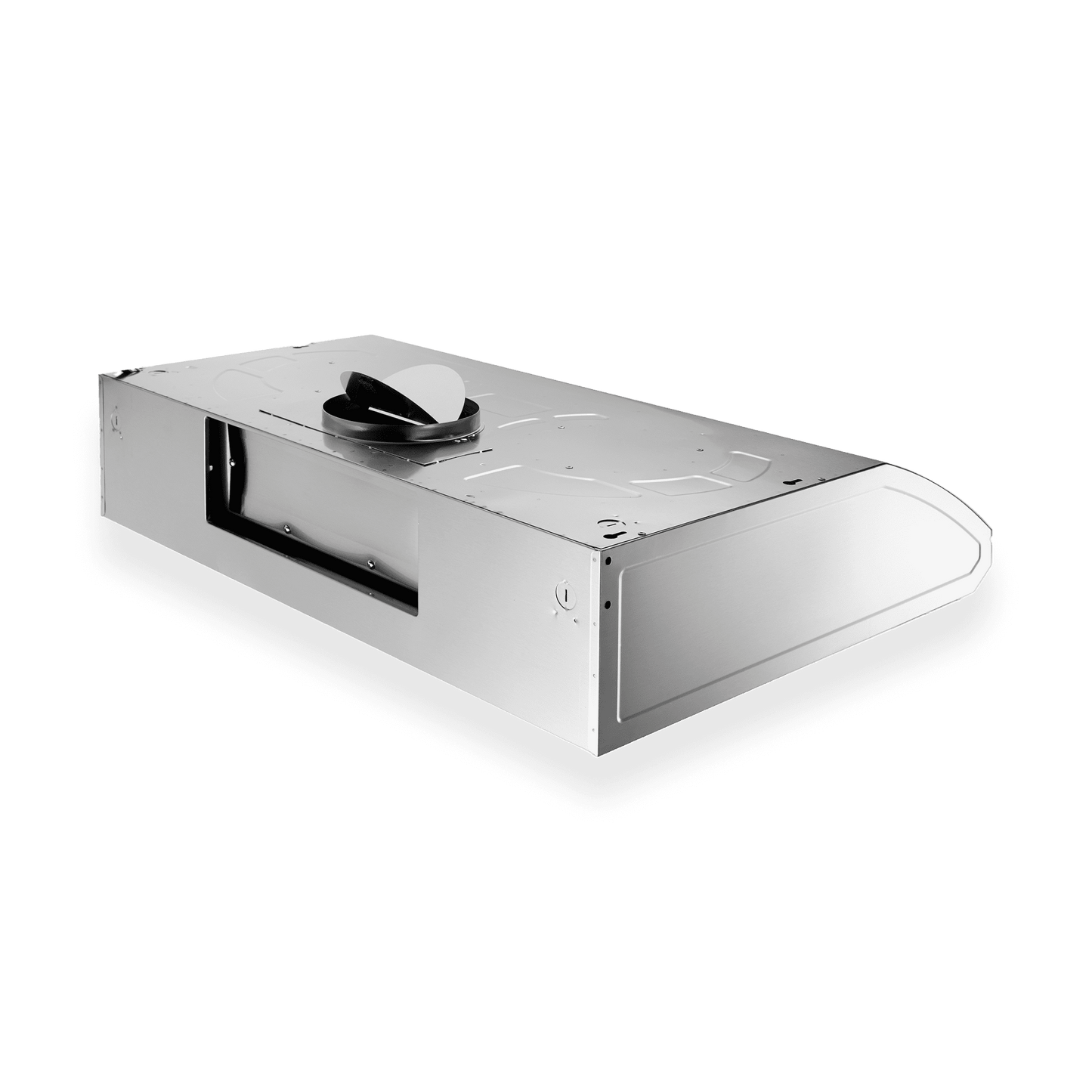

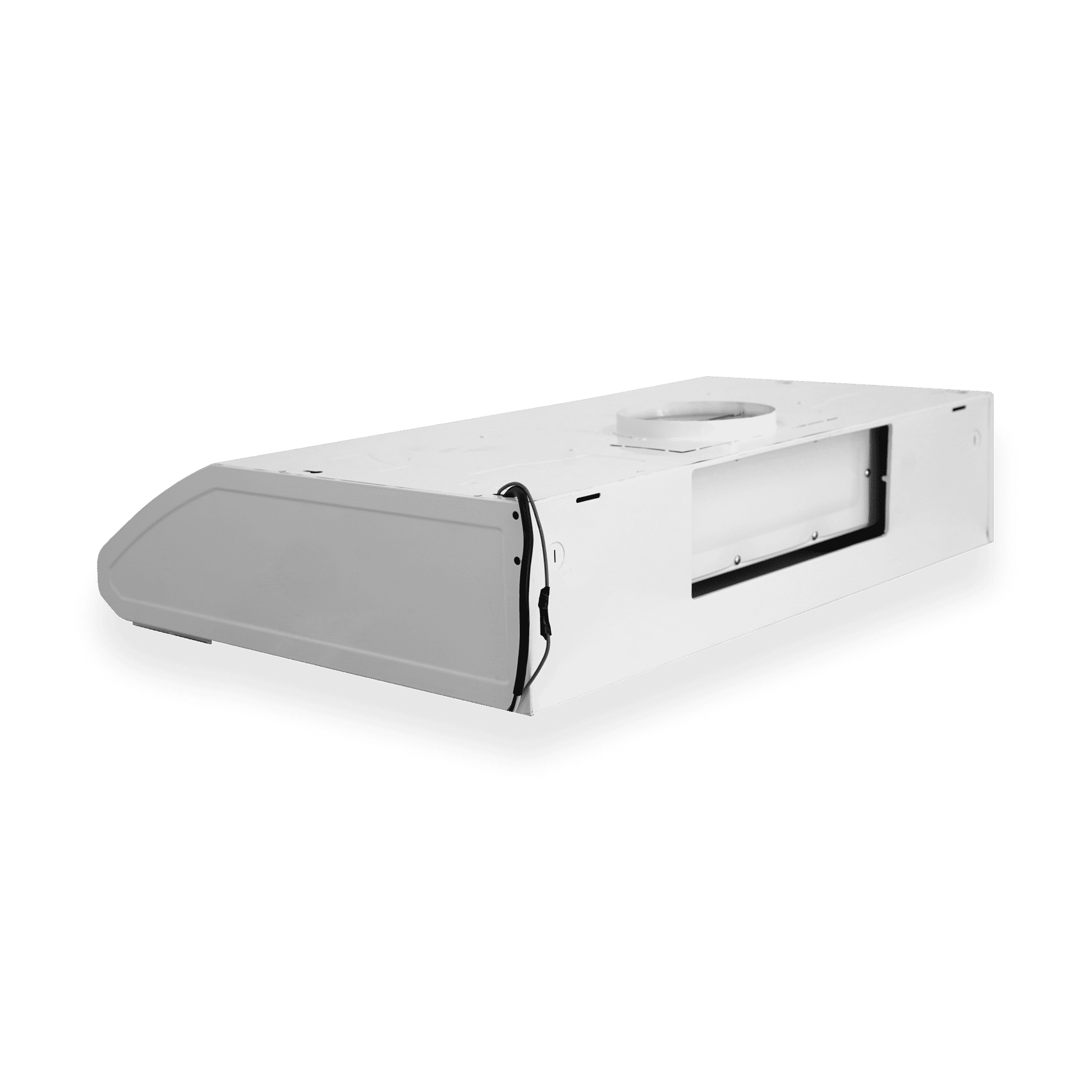

• 3 way ducting: top 6" round opening, top 3 1/8" x 10" rectangular opening, rear 3 1/8" x 10" rectangular opening

30" Model - 29.7" W x 23.4" D x 6.5" H

36" Model - 35.4" W x 23.4" D x 6.5" H

Net Weight 12.8-16kg

Gross Weight 15.6-19kg

Motor: Twin AC Motors

Filter: Aluminum Mesh Filter

Duct Size: 6" / Rear 3.1" x 10"

Illumination: 14W light bulb x1

Switch Type: Rocker Switch

Speed: 2 speeds

Noise level: 2 - 4 Sones

CFM: 385 - 750

Power Consumption: 230W

Voltage: 120V~60Hz

Safety Certificate: CSA

Origin: Made in Taiwan

Step 1: Measuring the duct size

Sakura range hoods require a duct size of 6” or larger round opening.

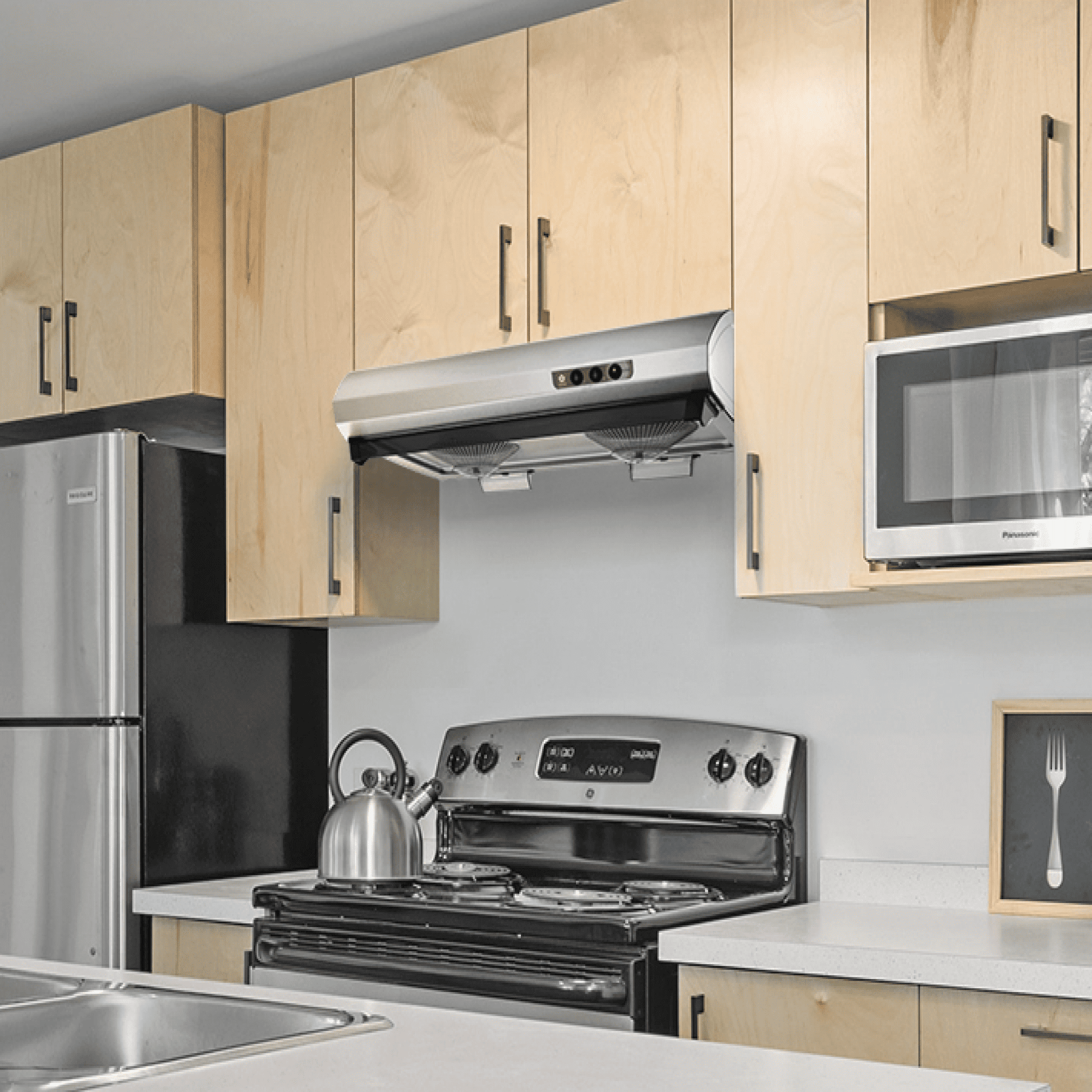

Step 2: Measuring the distance between range hood and countertop

From the bottom of the cabinet, or the top of the range hood, to the countertop.

Distance Requirement from top of hood to the counter top:

Electric stove: 30-32”
Gas stove: 33-35”

One Year Parts and Five-Year Motor Warranty

We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.

R-747II User manual (English)
